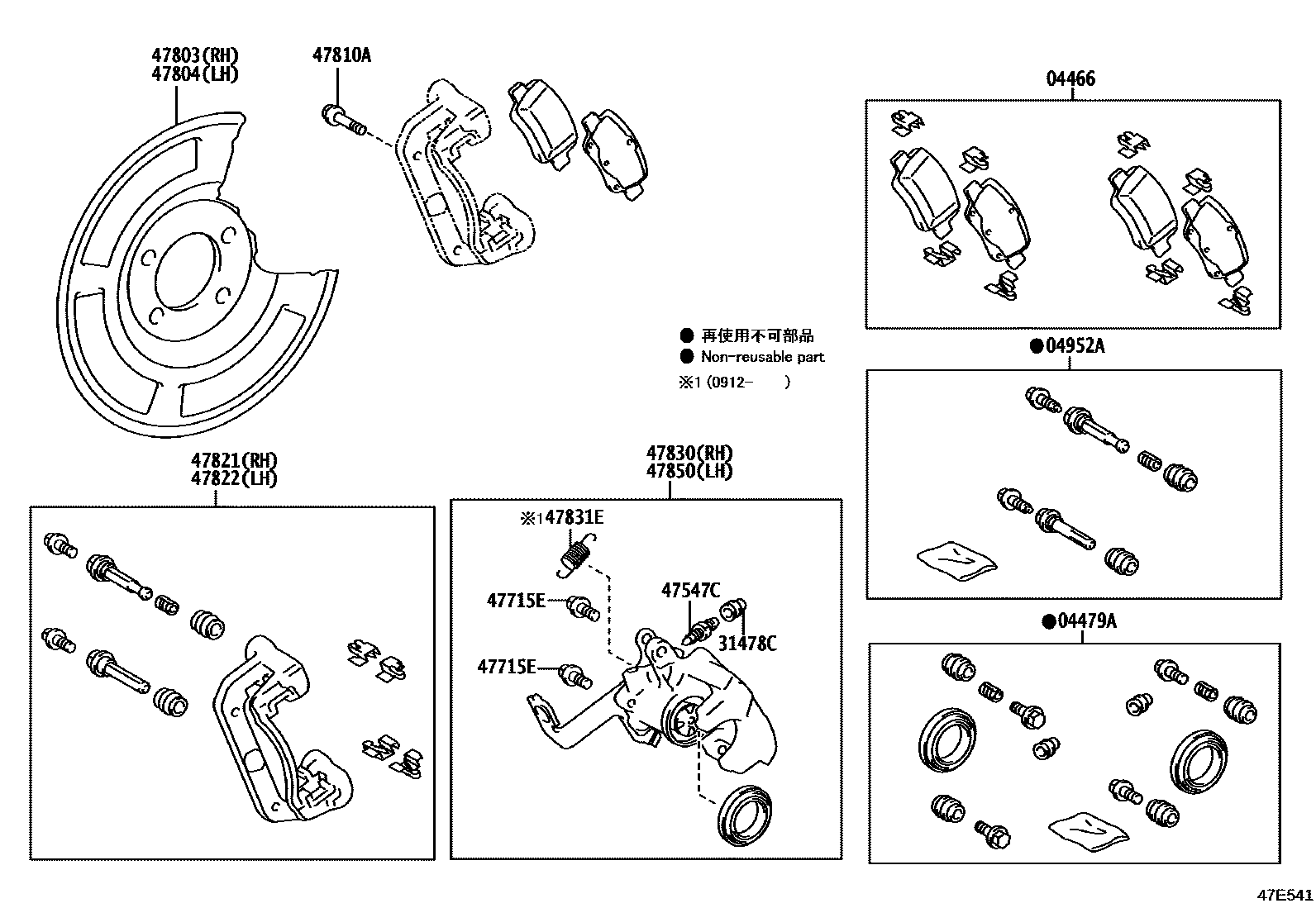

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-05040iAZT270200811-200905

MARK GA 3409

sub04466-05041

main04466-05041iAZT270200905-201104

MARK GA 3409

sub04466-05042

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02310iAZT270200811-201104

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02220iAZT270200811-201104

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main90069-39001iAZT270200811-201104

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39000iAZT270200811-201104

47715EBOLT(FOR REAR DISC BRAKE CYLINDER SLIDE)

main47715-05060iAZT270200811-201104

sub47715-28060

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-05020iAZT270200811-200911

sub47881-05021

main47881-05021iAZT270200912-201104

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-05010iAZT270200811-200911

sub47882-05011

main47882-05011iAZT270200912-201104

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10404iAZT270200811-200912

main90105-12174iAZT270200912-201104

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09040iAZT270200811-200912

main47821-09041iAZT270200912-201104

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-09040iAZT270200811-200912

main47822-09041iAZT270200912-201104

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-05030iAZT270200811-201104

sub47830-05050

47831ESPRING(FOR REAR DISC BRAKE)

main90069-51023iAZT270200912-201104

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-05030iAZT270200811-201104

sub47850-05050

14 parts on this diagram · 1 diagram in section
