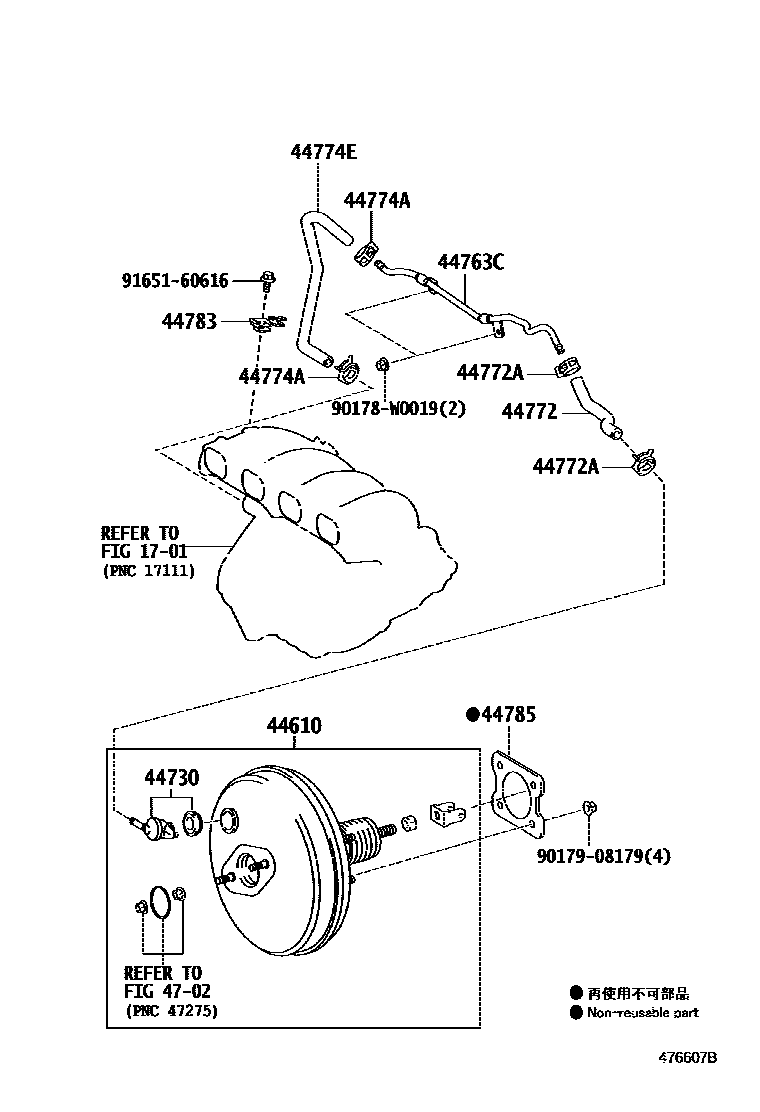

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-09510iAZT270..LHD200811-201006

main44610-09530iAZT270..RHD200811-201006

main44610-09770iAZT270..LHD201006-201104

sub44610-09771

main44610-09780iAZT270..RHD201006-201104

sub44610-09781

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iAZT270¥1,430200811-201104

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12520iAZT270..LHD200811-201104

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12580iAZT270..LHD200811-201104

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-W0008iAZT270..LHD¥120200811-201104

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-W0008iAZT270¥120200811-201104

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-12690iAZT270..LHD200811-201104

main44774-20450iAZT270..RHD200811-201104

44783CLAMP, VACUUM HOSE

main44783-44010iAZT270¥260200811-201104

44785GASKET, BRAKE BOOSTER

main44785-05020iAZT270¥640200811-201104

4702

90178W0019

main90178-W0019¥110

9017908179

main90179-08179¥200

9165160616

main91651-60616¥100

14 parts on this diagram · 2 diagrams in section
