TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

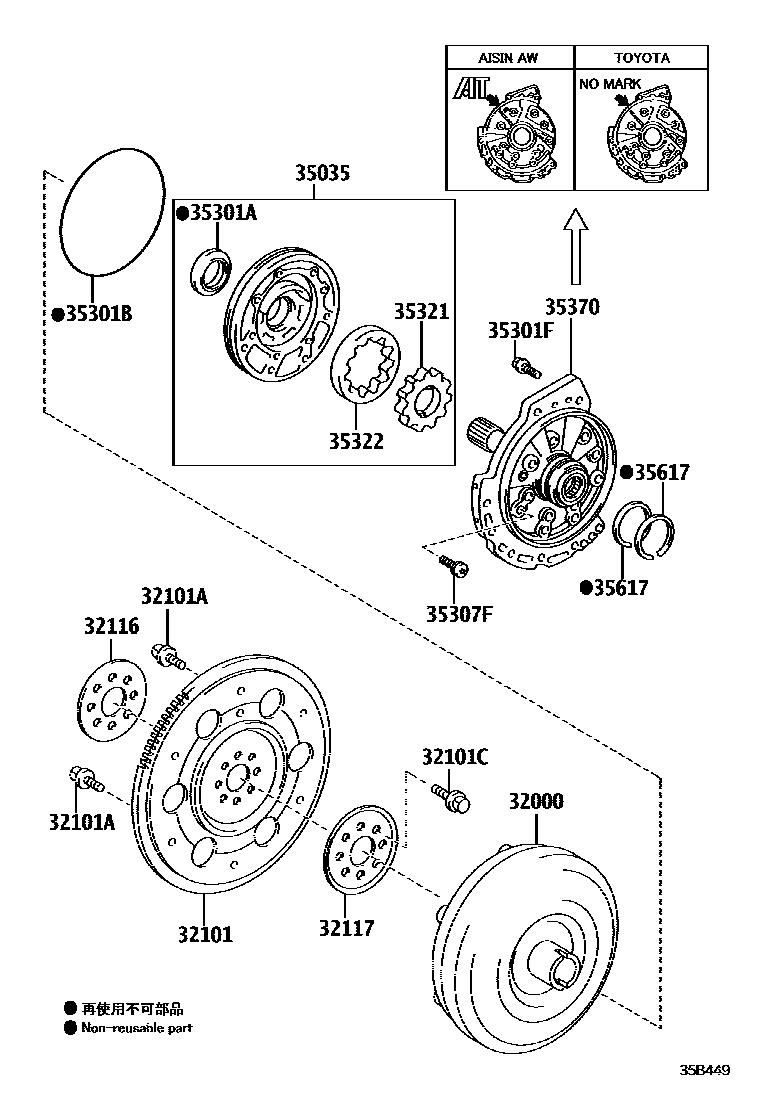

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-44040i200811-201104
sub32000-42040
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-28040i200811-201104
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i200811-201104
*9-1.25PX12.4-7.3,BLACK
main90119-09025i200811-201104
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-12184i200811-201005
*12-1.25PX22-16,(J)
sub90105-12384
main90105-12184i201005-201104
*12-1.25PX22-16
sub90105-12384
main90105-A0060i200811-201005
*12-1.25PX22-16,(L)
sub90105-12184
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i200811-201104
32117SPACER, DRIVE PLATE, REAR
main32117-20060i200811-201104
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-21020i200811-201010
TOYOTA:REFER TO ILL.
sub35035-28010
main35035-28010i200811-201104
AISIN AW:REF.ILLUST
sub35035-12070
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38083i200811
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99099i200811-201104
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i200811-201104
*8-1.25PX28-28
35307FBOLT (FOR STATOR SHAFT)
main90148-60027i200811
35321GEAR, FRONT OIL PUMP DRIVE
main35321-21060i200811-201010
T=10.690-10.699,TOYOTA:REFER TO ILL.
sub35321-28060
main35321-21070i200811-201010
T=10.700-10.709,TOYOTA:REFER TO ILL.
sub35321-28070
main35321-21080i200811-201010
T=10.710-10.720,TOYOTA:REFER TO ILL.
sub35321-28080
main35321-21090i200811-201010
T=10.721-10.730,TOYOTA:REFER TO ILL.
sub35321-28090
main35321-21100i200811-201010
T=10.731-10.740,TOYOTA:REFER TO ILL.
sub35321-28100
main35321-28060i200811-201104
T=10.715,MARK 1,AISIN AW:REF.ILLUST
main35321-28070i200811-201104
T=10.715,MARK 2,AISIN AW:REF.ILLUST
main35321-28080i200811-201104
T=10.715,MARK 3,AISIN AW:REF.ILLUST
main35321-28090i200811-201104
T=10.715,MARK 4,AISIN AW:REF.ILLUST
main35321-28100i200811-201104
T=10.715,MARK 5,AISIN AW:REF.ILLUST
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-21060i200811-201010
T=10.690-10.699,TOYOTA:REFER TO ILL.
sub35322-28060
main35322-21070i200811-201010
T=10.700-10.709,TOYOTA:REFER TO ILL.
sub35322-28070
main35322-21080i200811-201010
T=10.710-10.720,TOYOTA:REFER TO ILL.
sub35322-28080
main35322-21090i200811-201010
T=10.721-10.730,TOYOTA:REFER TO ILL.
sub35322-28090
main35322-21100i200811-201010
T=10.731-10.740,TOYOTA:REFER TO ILL.
sub35322-28100
main35322-28060i200811-201104
T=10.715,MARK 1,AISIN AW:REF.ILLUST
main35322-28070i200811-201104
T=10.715,MARK 2,AISIN AW:REF.ILLUST
main35322-28080i200811-201104
T=10.715,MARK 3,AISIN AW:REF.ILLUST
main35322-28090i200811-201104
T=10.715,MARK 4,AISIN AW:REF.ILLUST
main35322-28100i200811-201104
T=10.715,MARK 5,AISIN AW:REF.ILLUST
35370SHAFT ASSY, STATOR
main35370-21020i200811-201005
TOYOTA:REFER TO ILL.
sub35370-28010
main35370-28010i200811-201005
AISIN AW:REF.ILLUST
sub35370-12110
main35370-28010i201005
sub35370-12110
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i200811-201104

15 parts on this diagram · 1 diagram in section
