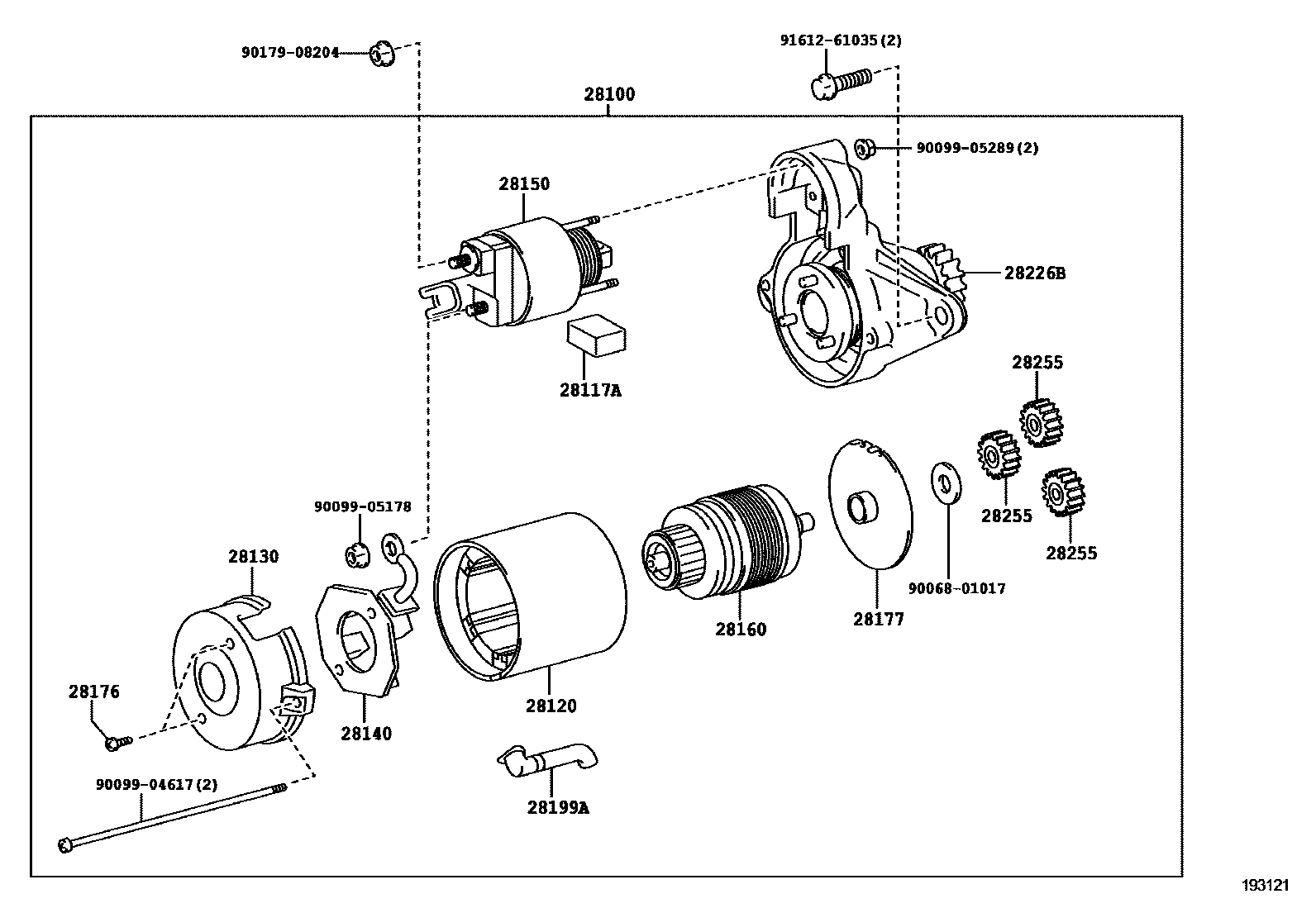

STARTER

28100STARTER ASSY

main28100-0H070i1AZFE..AZT270200811-201104

12V 1.6KW

28117ASEAL, RUBBER

main28117-37050i1AZFE..AZT270200811-201104

28120YOKE ASSY, STARTER

main28120-0H070i1AZFE..AZT270200811-201104

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-37050i1AZFE..AZT270200811-201104

28140HOLDER ASSY, STARTER BRUSH

main28140-31090i1AZFE..AZT270200811-201104

28150SWITCH ASSY, MAGNET STARTER

main28150-37020i1AZFE..AZT270200811-201104

28160ARMATURE ASSY, STARTER

main28160-37050i1AZFE..AZT270200811-201104

sub28160-75210

28176SCREW, STARTER

main90099-00323×2i1AZFE..AZT270200811-201104

28177PLATE(FOR STARTER ARMATURE)

main28177-37050i1AZFE..AZT270200811-201104

28199APROTECTOR, DUST STARTER

main28199-37050i1AZFE..AZT270200811-201104

28226BSTARTER KIT, REPAIR SERVICE

main28226-0H070i1AZFE..AZT270200811-201104

28255GEAR, PLANET

main28255-37050×3i1AZFE..AZT270200811-201104

9006801017

main90068-01017

9009904617

main90099-04617

9009905178

main90099-05178

9009905289

main90099-05289

9017908204

main90179-08204

9161261035

main91612-61035

18 parts on this diagram · 1 diagram in section
