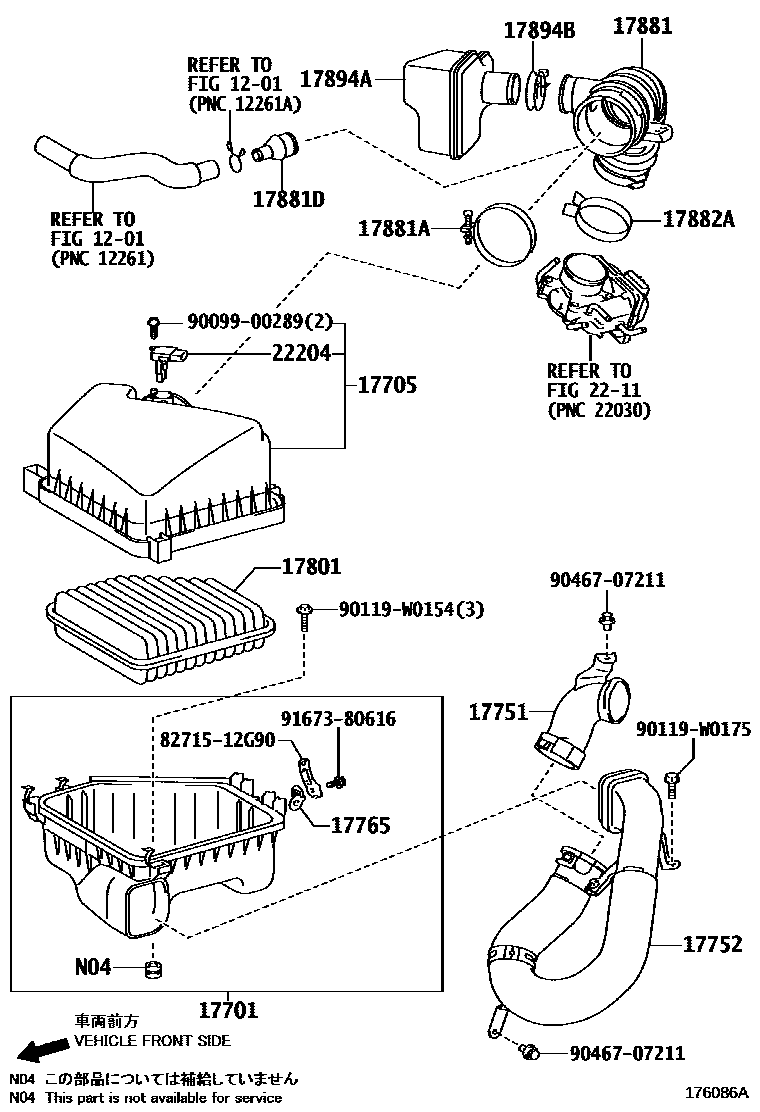

AIR CLEANER

1201

17701CASE SUB-ASSY, AIR CLEANER

main17701-28180i1AZFE..AZT270200811-201104

sub17701-28181

17705CAP SUB-ASSY, AIR CLEANER

main17705-28320i1AZFE..AZT270200811-201104

sub17705-28321

17751INLET, AIR CLEANER, NO.1

main17751-37020i1AZFE..AZT270200811-201104

17752INLET, AIR CLEANER, NO.2

main17752-31070i1AZFE..AZT270200811-201104

17765STAY, AIR CLEANER, NO.1

main17706-21010i1AZFE..AZT270200904-201104

main17706-22010i1AZFE..AZT270200811-200904

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31120i1AZFE..AZT270200811-201104

17881HOSE, AIR CLEANER, NO.1

main17881-28300i1AZFE..AZT270200811-201104

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850i1AZFE..AZT270200811-201104

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i1AZFE..AZT270200811-201104

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i1AZFE..AZT270200811-201104

17894ARESONATOR, INTAKE AIR, NO.2

main17894-28130i1AZFE..AZT270200811-201104

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10480i1AZFE..AZT270200811-201104

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-37010i1AZFE..AZT270200811-201104

sub22204-28010

8271512G90BRACKET,WIRING HARNESS CLAMP

main82715-12G90

9009900289

main90099-00289

90119W0154

main90119-W0154

90119W0175

main90119-W0175

9046707211

main90467-07211

9167380616

main91673-80616

21 parts on this diagram · 1 diagram in section
