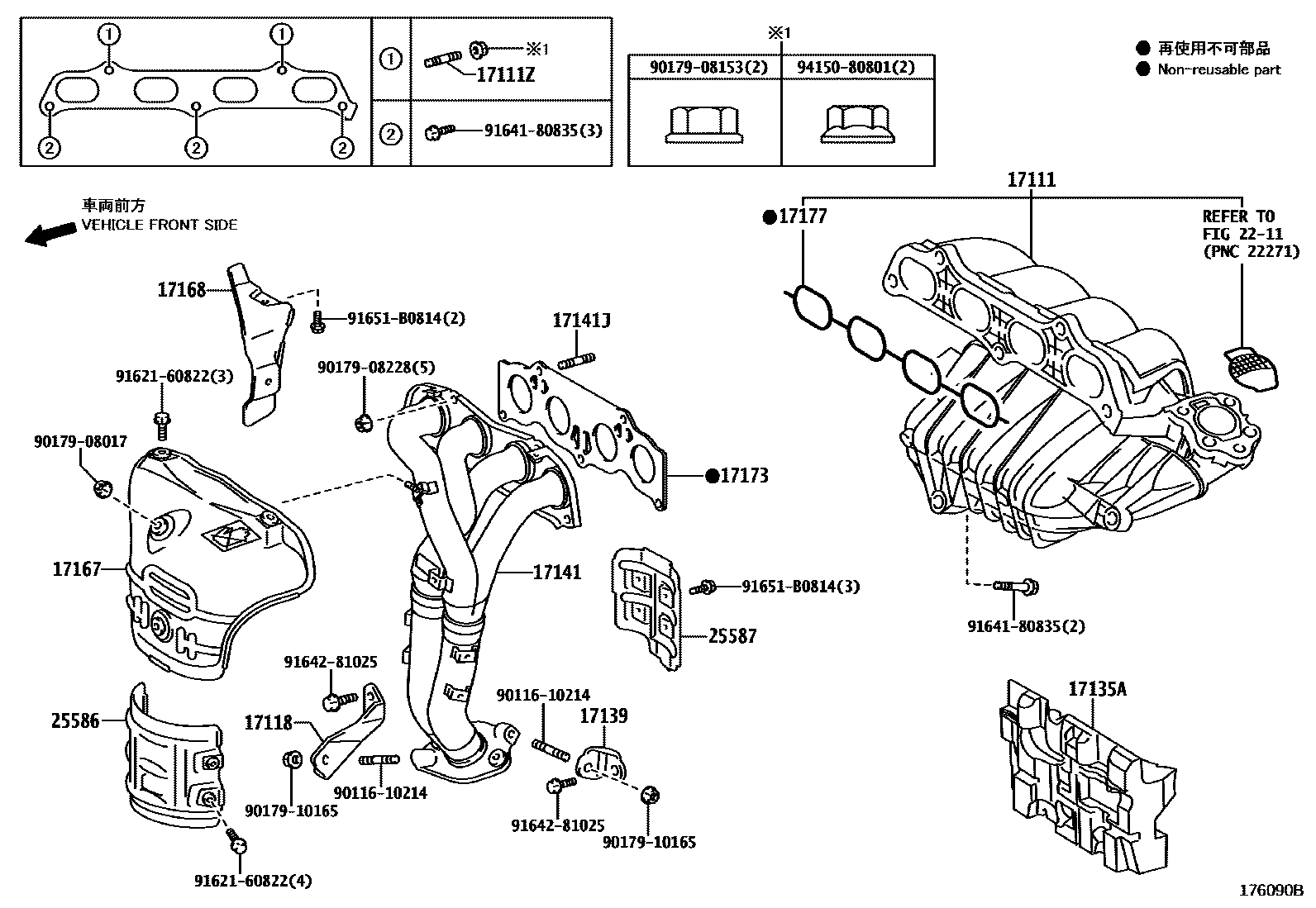

MANIFOLD

17111MANIFOLD, INTAKE

main17120-28100i1AZFE..AZT270200811-201104

sub17120-28101

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i1AZFE..AZT270200811-201104

17118STAY, MANIFOLD

main17118-28020i1AZFE..AZT270200811-201104

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-28011i1AZFE..AZT270200811-201104

17139STAY, MANIFOLD, NO.2

main17139-28050i1AZFE..AZT270200811-201104

17141MANIFOLD, EXHAUST

main17141-28450i1AZFE..AZT270200811-201104

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-08037×5i1AZFE..AZT270200811-201104

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-28080i1AZFE..AZT270200811-201104

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-28011i1AZFE..AZT270200811-201104

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-28010i1AZFE..AZT270200811-201104

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-28010i1AZFE..AZT270200811-201104

sub17177-28031

2211

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-28120i1AZFE..AZT270200811-201104

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-28020i1AZFE..AZT270200811-201104

9011610214

main90116-10214

9017908017

main90179-08017

9017908153

main90179-08153

9017908228

main90179-08228

9017910165

main90179-10165

9162160822

main91621-60822

9164180835

main91641-80835

9164281025

main91642-81025

91651B0814

main91651-B0814

9415080801

main94150-80801

24 parts on this diagram · 1 diagram in section
