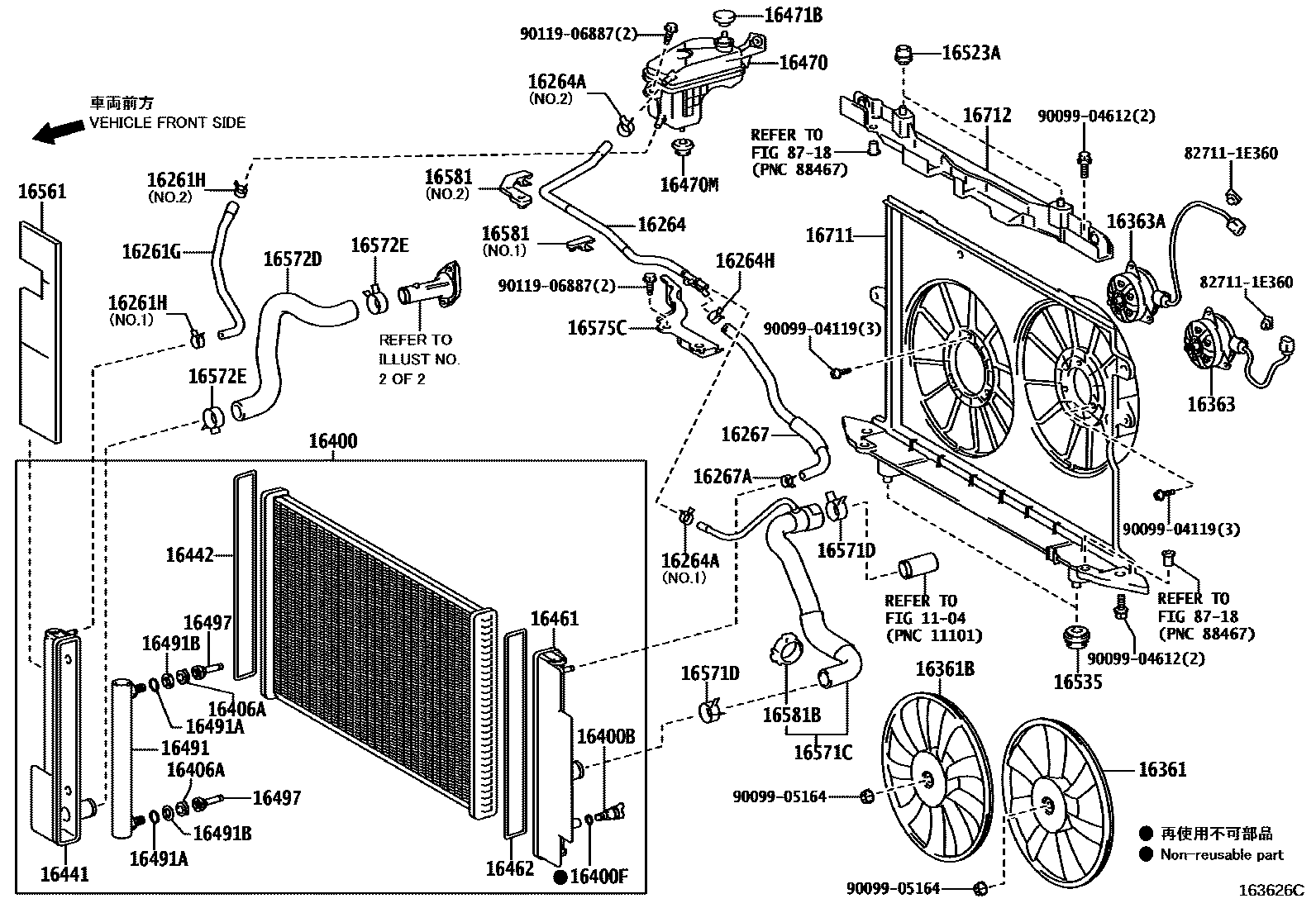

RADIATOR & WATER OUTLET
1104
16261HOSE, WATER BY-PASS
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
NO.1
NO.2
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
NO.1
NO.2
16264HCLIP(FOR WATER BY-PASS HOSE NO.3)
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16406ASUPPORT(FOR OIL COOLER)
16441TANK, RADIATOR, UPPER
16442RING, O(FOR RADIATOR UPPER TANK)
16461TANK, RADIATOR, LOWER
16462RING, O(FOR RADIATOR LOWER TANK)
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16471BCAP, RESERVE TANK
sub16475-28140
16491COOLER, OIL(FOR ATM)
16491ARING, O(FOR ATM OIL COOLER)
16491BWASHER, PLATE(FOR ATM OIL COOLER)
16497INLET SUB-ASSY
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16575CBRACKET, WATER HOSE CLAMP, NO.1
16581CLAMP, HOSE(FOR WATER HOSE)
NO.1
NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
8718
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009904119
main90099-04119
9009904612
main90099-04612
9009905164
main90099-05164
9011906887
main90119-06887
46 parts on this diagram · 2 diagrams in section
