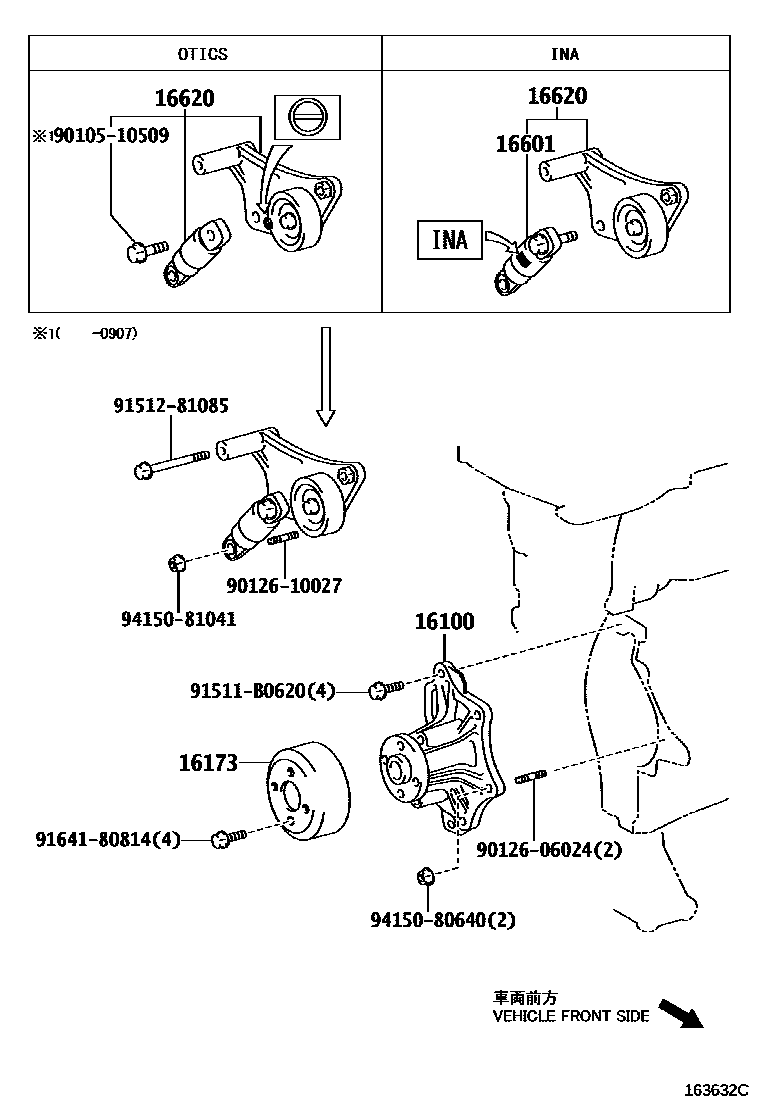

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-28041i1AZFE..AZT270200811-201104

16173PULLEY, WATER PUMP

main16173-28020i1AZFE..AZT270200811-201104

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28050i1AZFE..AZT270200811-201104

INA

16620TENSIONER ASSY, V-RIBBED BELT

main16620-28090i1AZFE..AZT270200811-201104

9010510509

main90105-10509

9012606024

main90126-06024

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

12 parts on this diagram · 1 diagram in section
