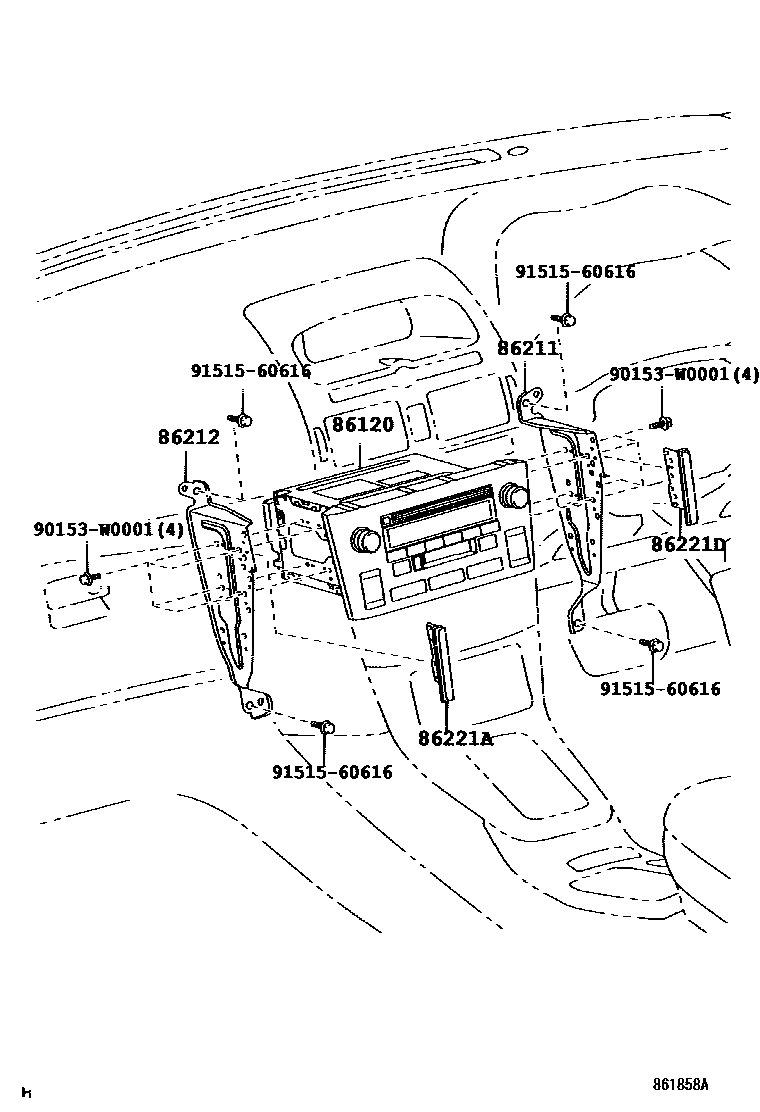

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-05070iAZT250200301-200502

MATSUSHITA,ID=W53900,TYPE A:REFER ILLUST.

sub86120-05071

main86120-05070iAZT250200301-200502

MATSUSHITA,ID=W53900,AUDIO-W/COVER 8SP/RADIOLESS,TYPE A:REFER ILLUST.

sub86120-05071

main86120-05071iAZT250200503-200604

MATSUSHITA,ID=W53905,TYPE A:REFER ILLUST.

main86120-05071iAZT250200503-200604

MATSUSHITA,ID=W53905,AUDIO-W/COVER 8SP/RADIOLESS,TYPE A:REFER ILLUST.

main86120-05081iAZT250200604

MATSUSHITA,ID=W53904

main86120-05081iAZT250200604

MATSUSHITA,ID=W53904,AUDIO-W/COVER 8SPEAKER/STRG.SW

main86120-05090iAZT250200701

MATSUSHITA,ID=W53902,LATIN AMERICA SPEC&AUDIO-RD/CD/CST 8SP/STRG.SW

main86120-05130iAZT250200604-200806

PANASONIC,ID=W58832,AUDIO-RADIO/CD CHANGER/DISPLAY/8SP/STRG.SW

sub86120-05131

main86120-05131iAZT250200807

PANASONIC,ID=W58832,AUDIO-RADIO/CD CHANGER/DISPLAY/8SP/STRG.SW

86211BRACKET, RADIO, NO.1

main86211-05060iAZT250200301-200604

86212BRACKET, RADIO, NO.2

main86212-05060iAZT250200301-200604

86221APANEL, RADIO RECEIVER

main86221-52050iAZT250200604

AUDIO-W/COVER 8SPEAKER/STRG.SW

main86221-52050iAZT250200301-200604

AUDIO-W/COVER 8SP/RADIOLESS

86221DPANEL, RADIO RECEIVER

main86221-52060iAZT250200301-200604

AUDIO-W/COVER 8SP/RADIOLESS

main86221-52060iAZT250200604

AUDIO-W/COVER 8SPEAKER/STRG.SW

90153W0001

main90153-W0001

9151560616

main91515-60616

7 parts on this diagram · 3 diagrams in section
