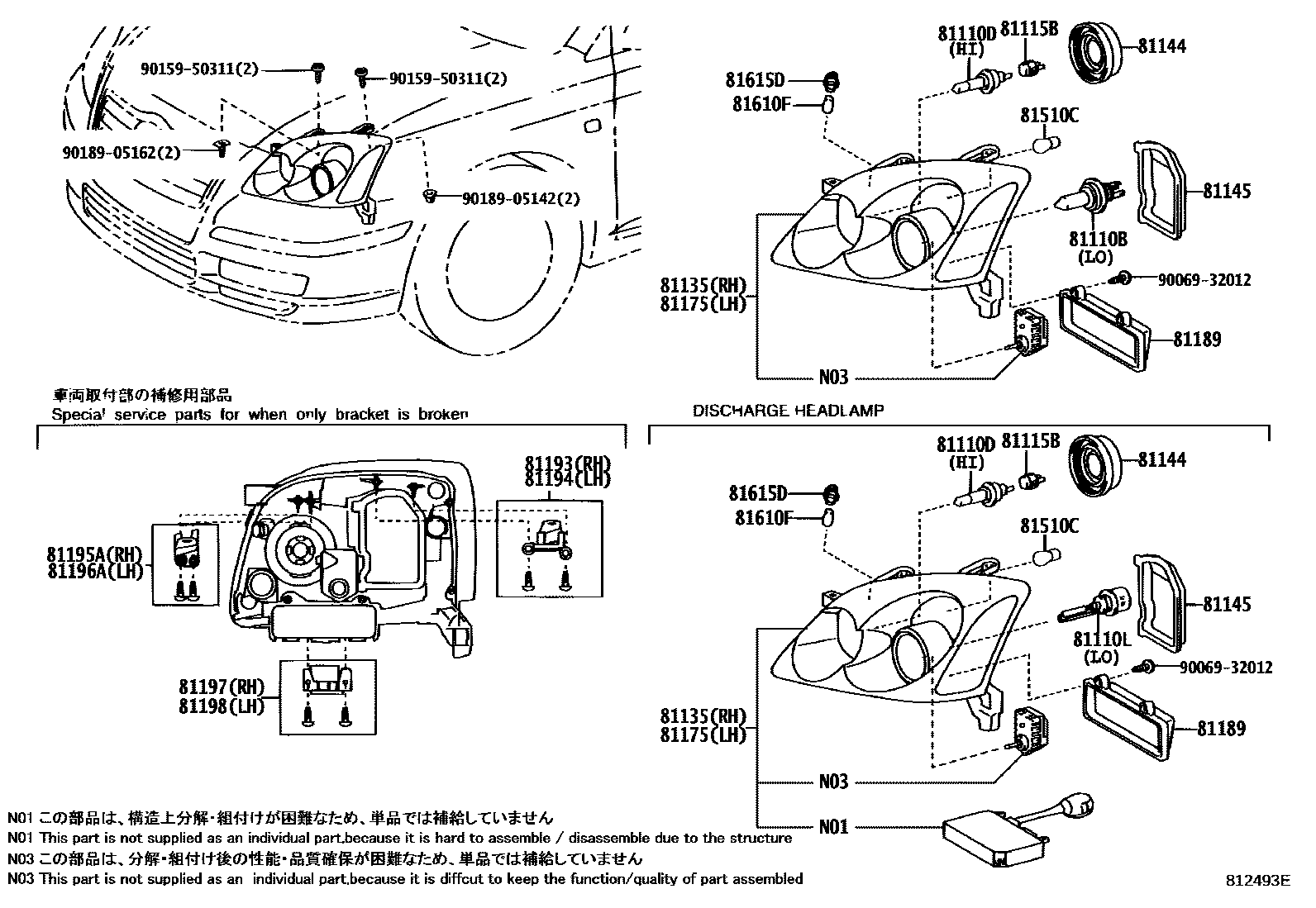

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V 55W
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,*HAL *WH
81110LBULB, DISCHARGE HEADLAMP
81115BSOCKET,HEADLAMP, NO.1
81135UNIT ASSY, HEADLAMP, RH
HEAD LAMP AIMING-LH,LABEL=72
HEAD LAMP AIMING-LH AIMING
81144COVER, HEADLAMP, NO.1
81145COVER, HEADLAMP, NO.2
RH
RH
RH
LH
LH
LH
81175UNIT ASSY, HEADLAMP, LH
HEAD LAMP AIMING-LH AIMING
HEAD LAMP AIMING-LH,LABEL=72
81189COVER, HEADLAMP
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W
12V 21W,AMBER
12V 21W
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
12V 5W
9006932012
main90069-32012
9015950311
main90159-50311
9018905142
main90189-05142
9018905162
main90189-05162
22 parts on this diagram · 2 diagrams in section
