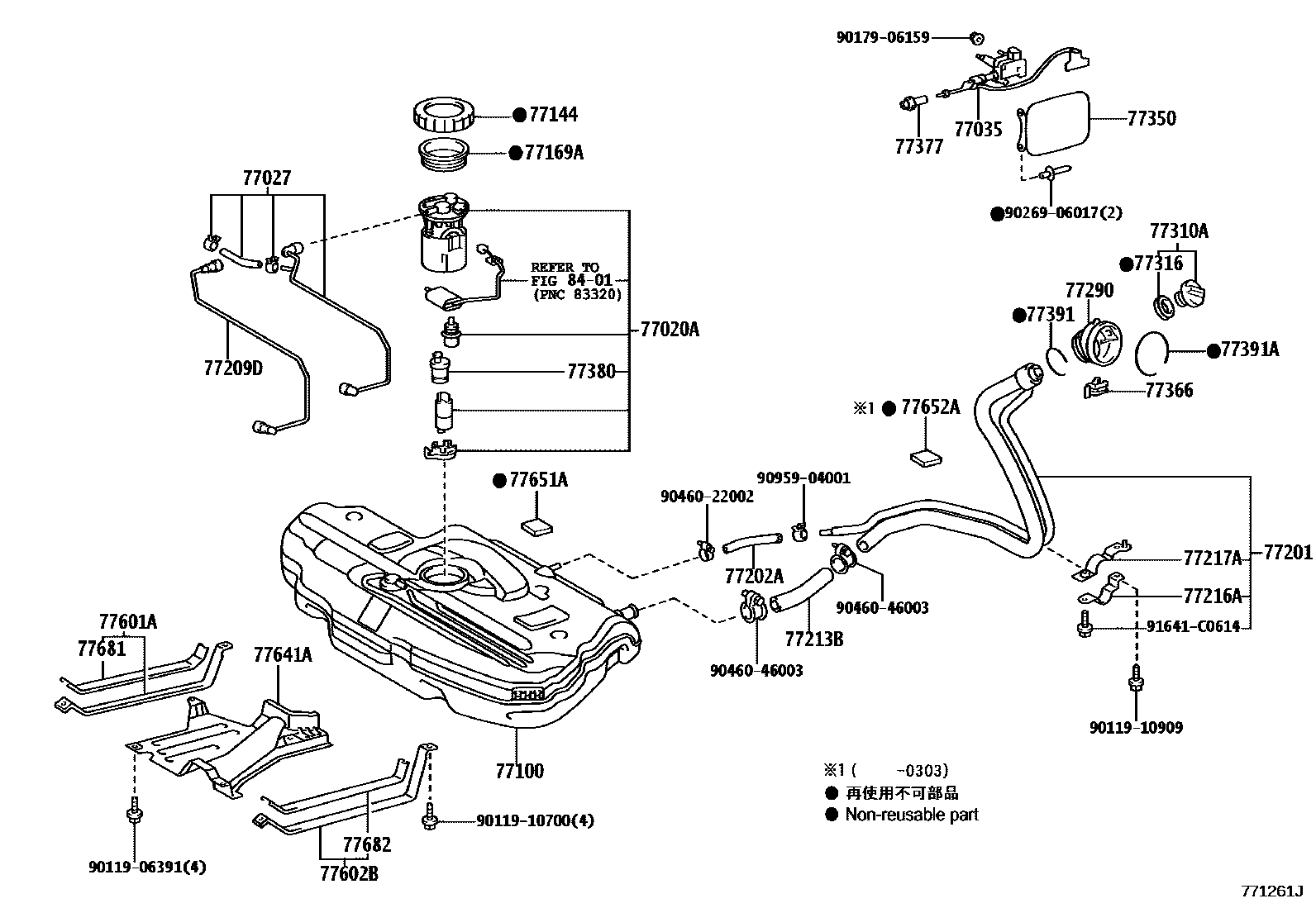

FUEL TANK & TUBE
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=160
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77681SEAT, FUEL TANK BAND, RH
sub77681-05020
77682SEAT, FUEL TANK BAND, LH
8401
9011906391
main90119-06391
9011910700
main90119-10700
9011910909
main90119-10909
9017906159
main90179-06159
9026906017
main90269-06017
9046022002
main90460-22002
9046046003
main90460-46003
9095904001
main90959-04001
91641C0614
main91641-C0614
38 parts on this diagram · 2 diagrams in section
