MUDGUARD & SPOILER

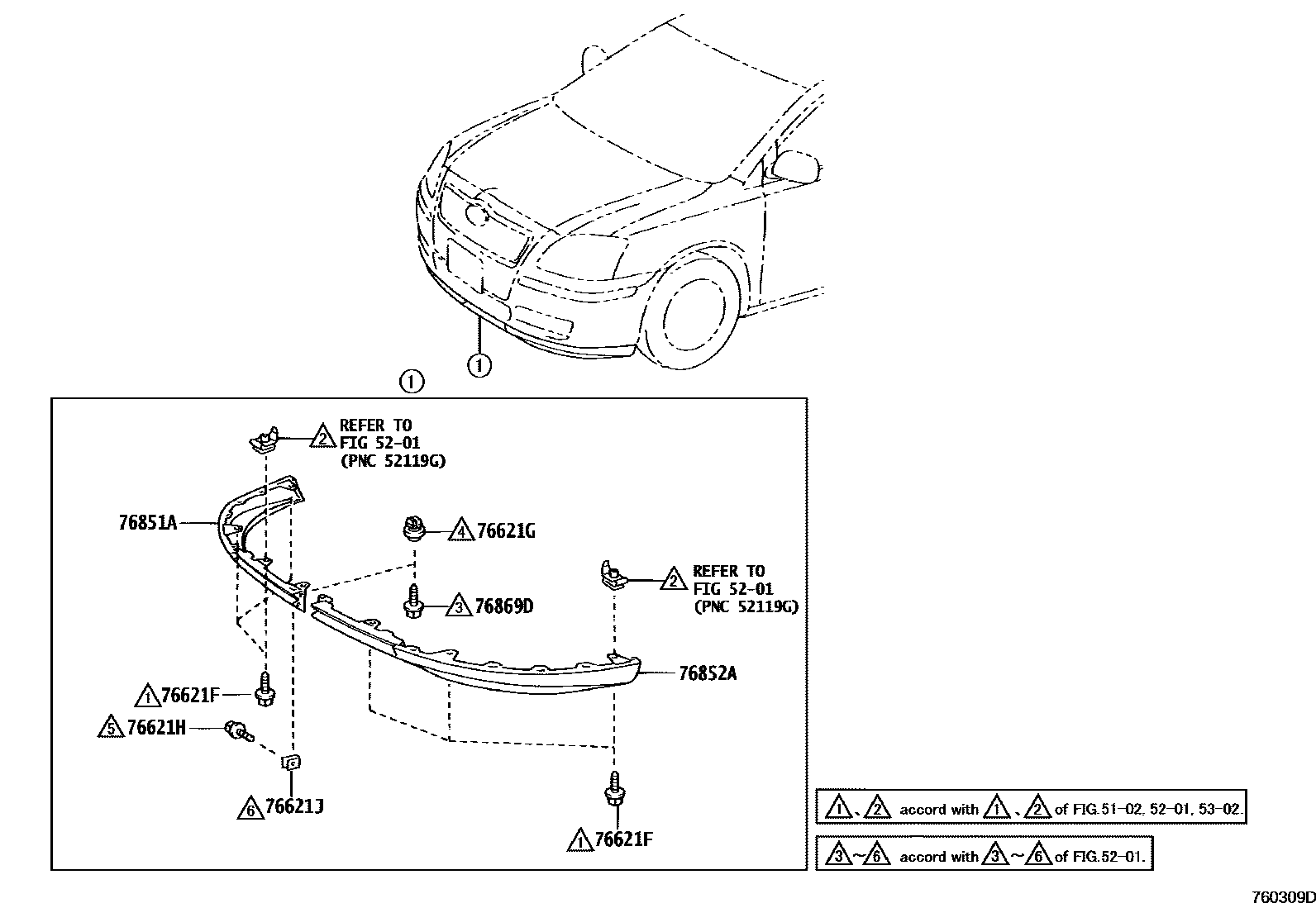

Parts diagram

5201

76621FSCREW, NO.1

main90159-60488i¥70200301-200811

76621GGROMMET, NO.1

main90189-05144i¥80200301-200811

76621HBOLT, NO.1

main90119-06451i¥70200301-200811

76621JNUT, NO.1

main90179-06127i¥90200301-200811

76851ACOVER, FRONT SPOILER, RH

main76851-05010i¥9,200200301-200604

main76851-05020i¥11,300200604-200811

76852ACOVER, FRONT SPOILER, LH

main76852-05010i¥9,200200301-200604

main76852-05020i¥11,300200604-200811

76869DSCREW, NO.2

main90159-60488i¥70200301-200811

8 parts on this diagram · 1 diagram in section
