E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

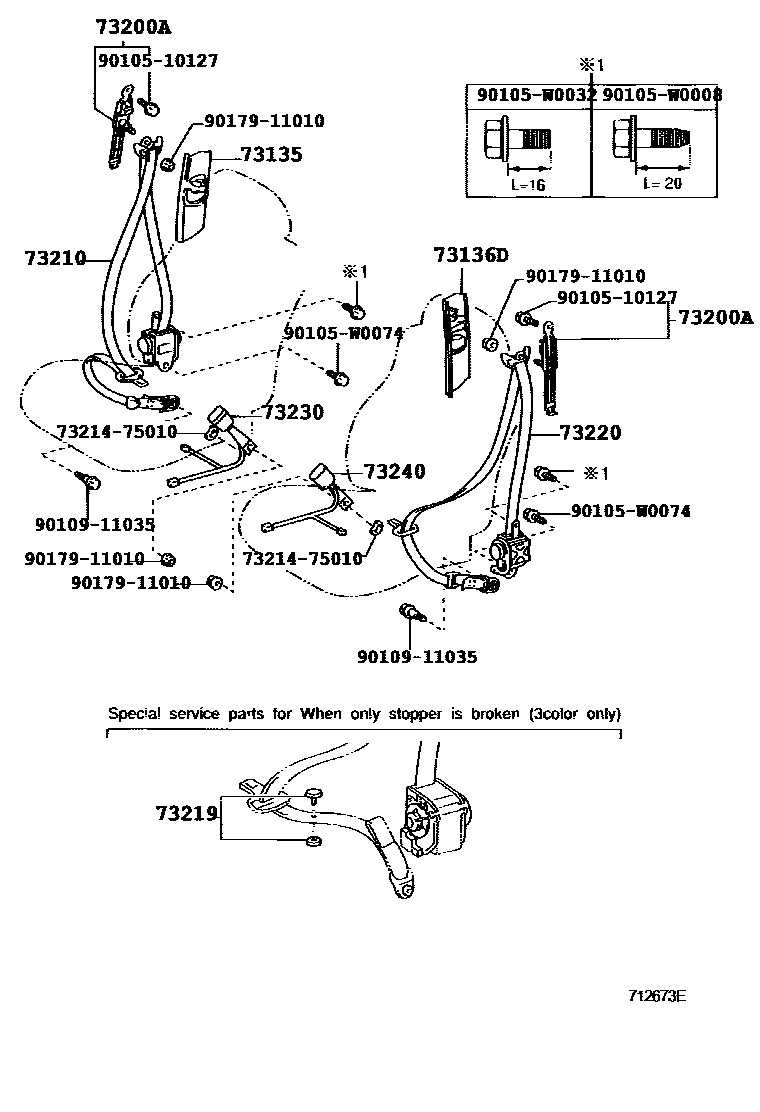

Parts diagram
73135COVER, SHOULDER BELT ANCHORAGE PLATE
main73023-05010-A0i200301-200604
IVORY,TRIM0#
main73023-05010-B0i200301-200604
LT.GRAY,TRIM1#
main73023-05010-E0i200604
GREGE,TRIM4#
73136DCOVER, SHOULDER BELT ANCHORAGE PLATE
main73024-05010-A0i200301-200604
IVORY,TRIM0#
main73024-05010-B0i200301-200604
LT.GRAY,TRIM1#
main73024-05010-E0i200604
GREGE,TRIM4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-05030i200301-200604
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-05050-A1i200301-200407
IVORY,TRIM0#
sub73210-05051
main73210-05050-C0i200301-200407
BLACK,TRIM1#
sub73210-05051
main73210-05051-A1i200408-200604
IVORY,TRIM0#
main73210-05051-C0i200408-200604
BLACK,TRIM1#
main73210-05051-E0i200604
GREGE,TRIM4#
73219STOPPER, TONGUE PLATE
main73219-33010i200301-200604
BLACK
main73219-33020i200301-200604
GRAY
main73219-33030i200301-200604
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-05050-A1i200301-200407
IVORY,TRIM0#
sub73220-05051
main73220-05050-C0i200301-200407
BLACK,TRIM1#
sub73220-05051
main73220-05051-A1i200408-200604
IVORY,TRIM0#
main73220-05051-C0i200408-200604
BLACK,TRIM1#
main73220-05051-E0i200604
GREGE,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-05040-A0i200301-200409
IVORY,TRIM0#
sub73230-05041
main73230-05040-B0i200301-200409
DK.GRAY,TRIM1#
sub73230-05041
main73230-05041-A0i200409-200604
IVORY,TRIM0#
main73230-05041-B0i200409-200604
DK.GRAY,TRIM1#
main73230-05041-E0i200604
GREGE,TRIM4#
main73230-05080-A0i200301-200409
IVORY,TRIM0#
sub73230-05081
main73230-05080-B0i200301-200409
DK.GRAY,TRIM1#
sub73230-05081
main73230-05081-A0i200409-200604
IVORY,TRIM0#
main73230-05081-B0i200409-200604
DK.GRAY,TRIM1#
main73230-05081-E0i200604
GREGE,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-05040-A0i200301-200409
IVORY,TRIM0#
sub73230-05041
main73230-05040-B0i200301-200409
DK.GRAY,TRIM1#
sub73230-05041
main73230-05041-A0i200409-200604
IVORY,TRIM0#
main73230-05041-B0i200409-200604
DK.GRAY,TRIM1#
main73230-05041-E0i200604
GREGE,TRIM4#
main73230-05080-A0i200401-200409
IVORY,TRIM0#
sub73230-05081
main73230-05080-B0i200401-200409
DK.GRAY,TRIM1#
sub73230-05081
main73230-05081-A0i200409-200604
IVORY,TRIM0#
main73230-05081-B0i200409-200604
DK.GRAY,TRIM1#
main73230-05081-E0i200604
GREGE,TRIM4#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510127
main90105-10127
90105W0008
main90105-W0008
90105W0032
main90105-W0032
90105W0074
main90105-W0074
9010911035
main90109-11035
9017911010
main90179-11010

15 parts on this diagram · 2 diagrams in section
