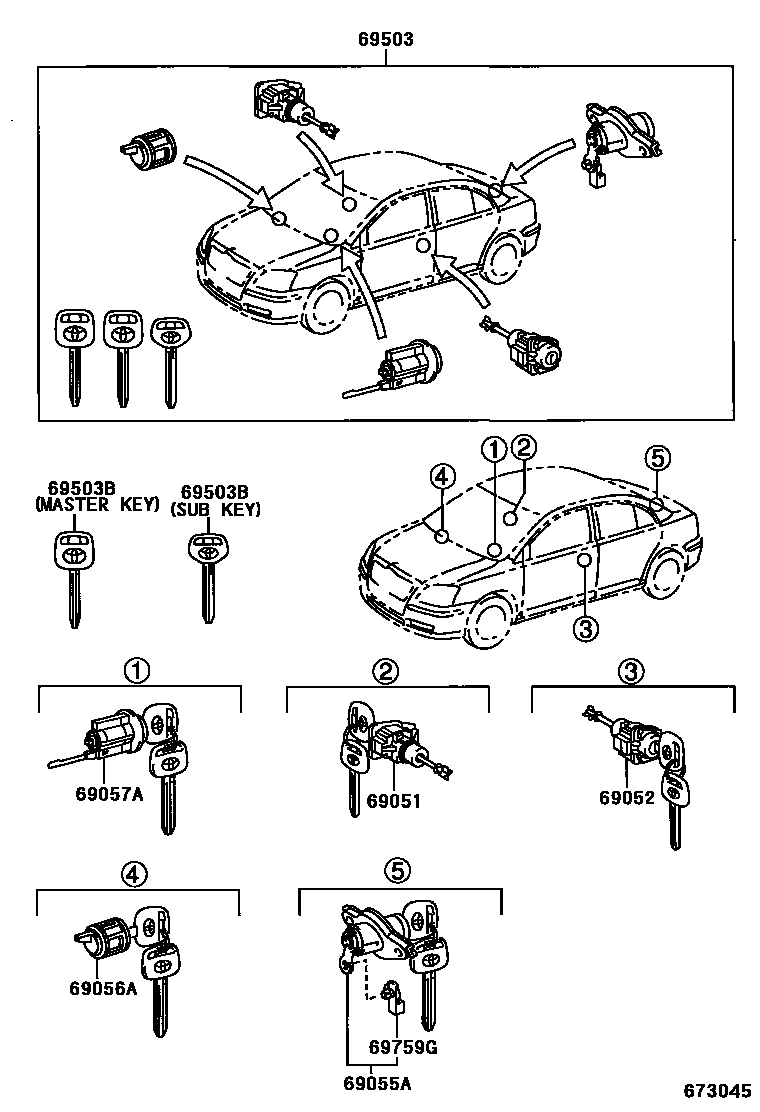

LOCK CYLINDER SET

0001 1 0002 1 0003 1 0004 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-05040iAZT250200301-200604

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-05040iAZT250200301-200604

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-05080iAZT250200301-200604

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-02010iAZT250200301-200604

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-05070iAZT250200301-200612

sub69057-05071

main69057-05071iAZT250200701

69503CYLINDER SET, LOCK

main69005-05140iAZT250200301-200604

main89073-05200iAZT250200604-200612

sub89073-05201

main89073-05201iAZT250200701

69503BKEY, CUT

main69515-05010iAZT250200301-200604

MASTER KEY(VALEO)

main69516-05010iAZT250200301-200606

SUB KEY(VALEO)

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20080iAZT250200301-200608

main69759-24080iAZT250200608

8 parts on this diagram · 4 diagrams in section
