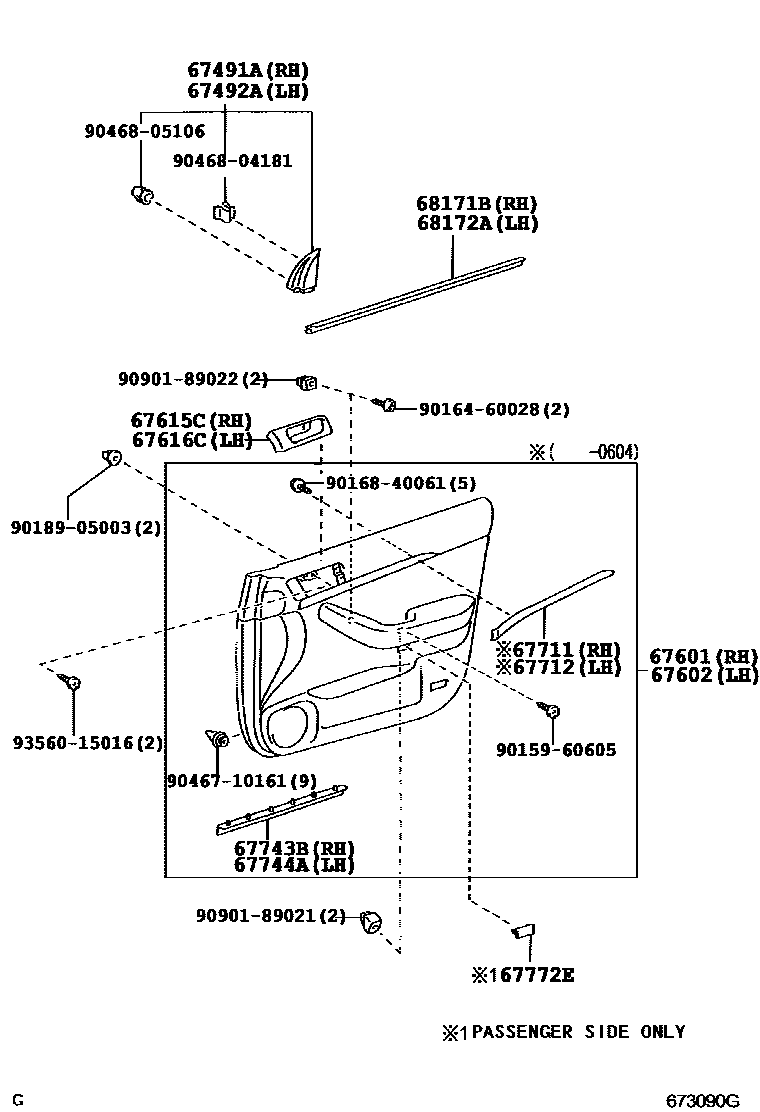

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-05060iAZT250200301-200604

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-05060iAZT250200301-200604

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-05420-A0iAZT250..RHD200301-200604

IVORY,TRIM0#

main67610-05420-B0iAZT250..RHD200301-200604

DK. GRAY,TRIM1#

main67610-05470-A0iAZT250..LHD200301-200604

IVORY,TRIM0#

main67610-05470-B0iAZT250..LHD200301-200604

DK. GRAY,TRIM1#

main67610-05530-B1iAZT250..RHD200604

DK.GRAY,TRIM1#

main67610-05530-E0iAZT250..RHD200604

GREGE,TRIM4#

main67610-05550-B1iAZT250..RHD200604

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main67610-05550-E1iAZT250..RHD200604

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

main67610-05570-B1iAZT250..LHD200604

DK.GRAY,TRIM1#

main67610-05570-E0iAZT250..LHD200604

GREGE,TRIM4#

main67610-05590-B1iAZT250..LHD200604

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main67610-05590-E1iAZT250..LHD200604

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-05420-A0iAZT250..RHD200301-200604

IVORY,TRIM0#

main67620-05420-B0iAZT250..RHD200301-200604

DK. GRAY,TRIM1#

main67620-05470-A0iAZT250..LHD200301-200604

IVORY,TRIM0#

main67620-05470-B0iAZT250..LHD200301-200604

DK. GRAY,TRIM1#

main67620-05530-B1iAZT250..RHD200604

DK.GRAY,TRIM1#

main67620-05530-E0iAZT250..RHD200604

GREGE,TRIM4#

main67620-05550-B1iAZT250..RHD200604

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main67620-05550-E1iAZT250..RHD200604

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

main67620-05570-B1iAZT250..LHD200604

DK.GRAY,TRIM1#

main67620-05570-E0iAZT250..LHD200604

GREGE,TRIM4#

main67620-05590-B1iAZT250..LHD200604

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main67620-05590-E1iAZT250..LHD200604

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

67615CBASE, FRONT DOOR TRIM, RH

main67615-05020-B0iAZT250200301-200604

DK. GRAY,TRIM0#,1#

main67615-05020-B0iAZT250200604

DK. GRAY,TRIM1#,4#

67616CBASE, FRONT DOOR TRIM, LH

main67616-05020-B0iAZT250200301-200604

DK. GRAY,TRIM0#,1#

main67616-05020-B0iAZT250200604

DK. GRAY,TRIM1#,4#

67711COVER, FRONT DOOR TRIM, RH

main67711-05030iAZT250200301-200604

67712COVER, FRONT DOOR TRIM, LH

main67712-05030iAZT250200301-200604

67743BMOULDING, FRONT DOOR TRIM, NO.2 RH

main67743-05010iAZT250200301-200604

67744ASEAL, FRONT DOOR TRIM, LH

main67744-05010iAZT250200301-200604

67772ECAP, FRONT DOOR TRIM RETAINER

main67772-05030-A0iAZT250200301-200604

IVORY,TRIM0#

main67772-05030-B0iAZT250200301-200604

DK.GRAY,TRIM1#

main67772-05030-E0iAZT250200604

GREGE,TRIM4#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-05050iAZT250200301-200307

sub68171-05051

main68171-05051iAZT250200307-200604

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-05050iAZT250200301-200307

sub68172-05051

main68172-05051iAZT250200307-200604

9015960605

main90159-60605

9016460028

main90164-60028

9016840061

main90168-40061

9018905003

main90189-05003

9046710161

main90467-10161

9046804181

main90468-04181

9046805106

main90468-05106

9090189021

main90901-89021

9090189022

main90901-89022

9356015016

main93560-15016

23 parts on this diagram · 3 diagrams in section
