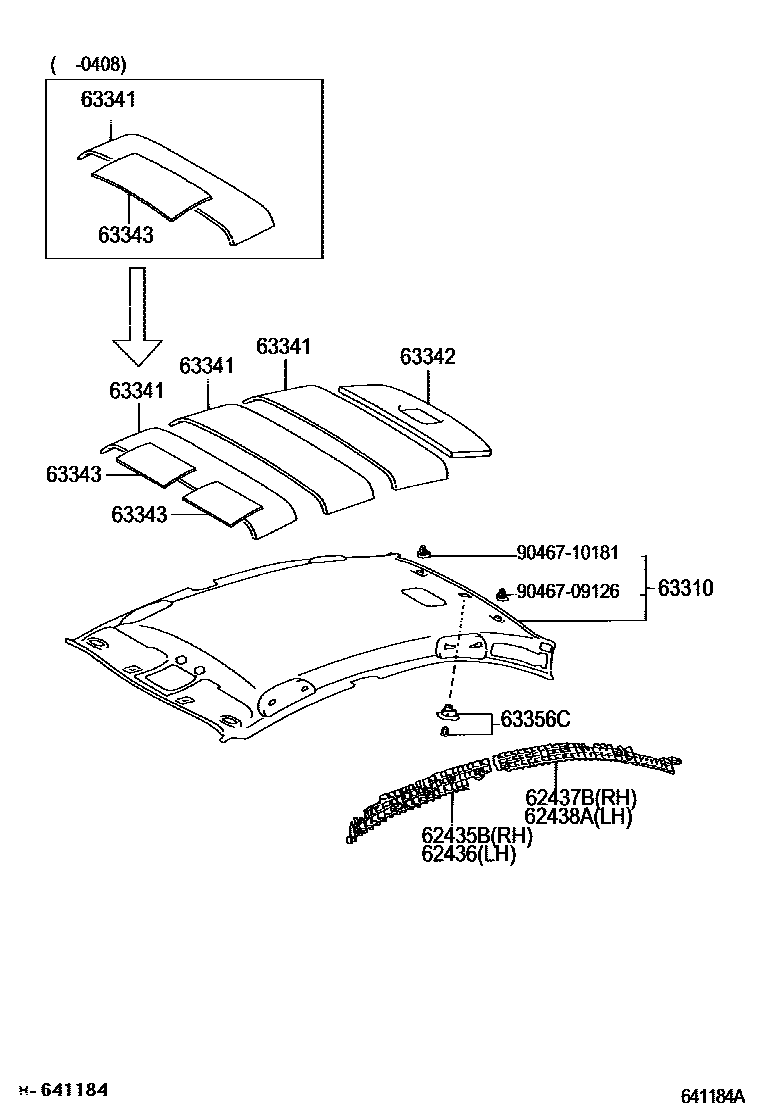

ROOF HEADLINING & SILENCER PAD

62435BPAD, ROOF SIDE RAIL, FRONT RH

main62435-05050iAZT250200301-200604

62436PAD, ROOF SIDE RAIL, FRONT LH

main62436-05050iAZT250200301-200604

62437BPAD, ROOF SIDE RAIL, REAR RH

main62437-05080iAZT250200301-200604

62438APAD, ROOF SIDE RAIL, REAR LH

main62438-05080iAZT250200301-200604

63310HEADLINING ASSY, ROOF

main63310-05440-A0iAZT250200301-200604

IVORY,TRIM0#

sub63310-05441

main63310-05440-B0iAZT250200301-200604

LT. GRAY,TRIM1#

sub63310-05441

main63310-05440-E0iAZT250200604

GREGE,TRIM4#

sub63310-05441

63341PAD, ROOF SILENCER, NO.1

main63341-05060iAZT250200301-200604

63342PAD, ROOF SILENCER, NO.2

main63342-05030iAZT250200301-200604

63343PAD, ROOF SILENCER, NO.3

main63343-05020iAZT250200301-200408

main63343-05021iAZT250200408-200604

63356CHOLDER, SUNSHADE TRIM

main63356-05010-A0iAZT250200301-200604

IVORY,TRIM0#

main63356-05010-B0iAZT250200301-200604

LT.GRAY,TRIM1#

main63356-05020-B0iAZT250200604

LT.GRAY,TRIM1#

main63356-05020-E0iAZT250200604

GREGE,TRIM4#

9046709126

main90467-09126

9046710181

main90467-10181

11 parts on this diagram · 1 diagram in section
