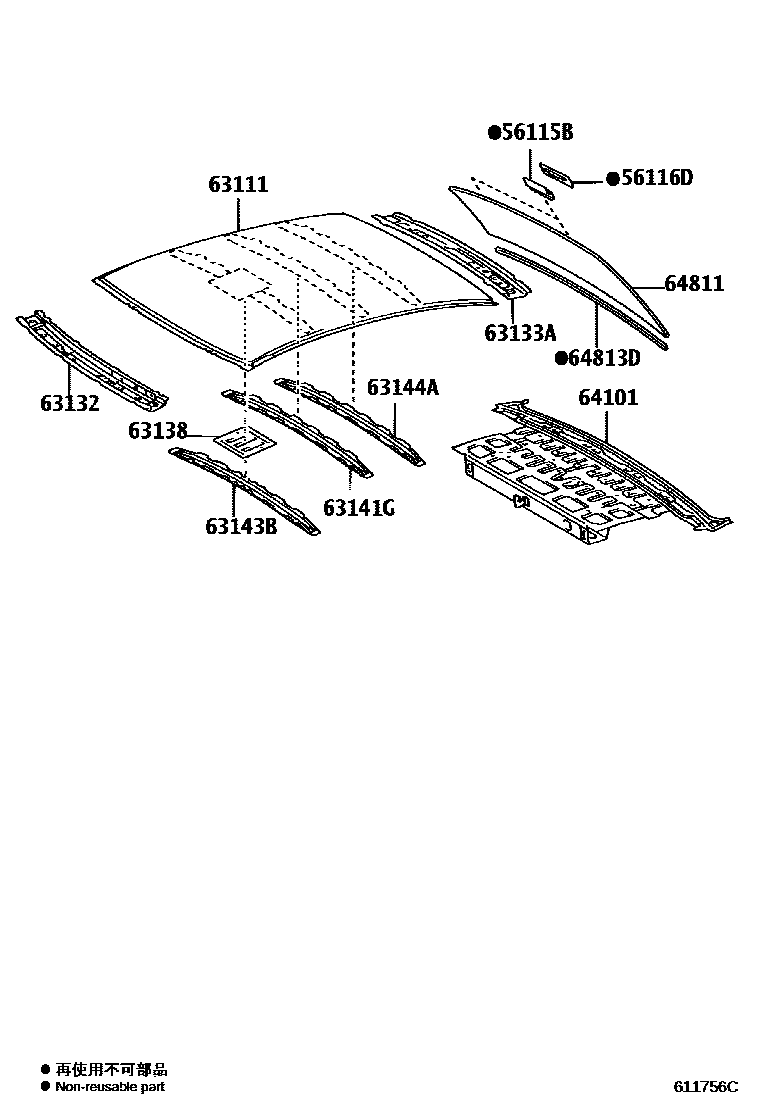

ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100×2iAZT250200301-200604

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iAZT250200301-200604

63111PANEL, ROOF

main63111-05230iAZT250200301-200604

63132PANEL, WINDSHIELD HEADER, INNER

main63132-05030iAZT250200301-200503

main63132-05031iAZT250200503-200603

main63132-05040iAZT250200604

63133AFRAME, BACK WINDOW, UPPER

main63133-05030iAZT250200301-200604

63138BRACKET, DOME LAMP, NO.2

main63138-05010iAZT250200301-200604

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-05050iAZT250200301-200604

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-05020iAZT250200301-200604

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-05050iAZT250200301-200604

64101PANEL SUB-ASSY, UPPER BACK

main64101-05090iAZT250200301-200407

main64101-05091iAZT250200407-200408

main64101-05092iAZT250200408-200604

64811GLASS, BACK WINDOW

main64811-05030iAZT250200301-200604

*EHT,T=3.1,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-20150iAZT250200301-200604

sub64813-52010

12 parts on this diagram · 1 diagram in section
