SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
55714CPANEL, COWL TOP SIDE, LH
5701
58396BBRACKET, WIRE HARNESS CLAMP
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61128REINFORCEMENT, COWL SIDE PANEL, RH
61129REINFORCEMENT, COWL SIDE PANEL, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61241AGUSSET, ROOF SIDE RAIL, REAR RH
61242AGUSSET, ROOF SIDE RAIL, REAR LH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61365AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, NO.3
61373AREINFORCE, CENTER PILLAR LOWER HINGE, NO.1 RH
61383EXTENSION, CENTER BODY PILLAR, OUTER RH
61401DRAIL SUB-ASSY, NO.1 LOWER OUTER, RH
61402DRAIL SUB-ASSY, NO.1 LOWER OUTER, LH
61415BEXTENSION, ROCKER, OUTER RH
61416BEXTENSION, ROCKER, OUTER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH
61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61647CREINFORCEMENT, WHEEL HOUSE, RH
61648CREINFORCEMENT, WHEEL HOUSE, LH
61683BBRACKET, REAR WHEEL OPENING, NO.1 RH
61684BBRACKET, REAR WHEEL OPENING, NO.1 LH
61685CBRACKET, REAR SEATBACK STOPPER, RH
61686ABRACKET, REAR SEATBACK STOPPER, LH
61693DBRACKET, REAR WHEEL OPENING, NO.1
61694DBRACKET, REAR WHEEL OPENING, NO.2
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61741BREINFORCEMENT, BACK WINDOW OPENING, RH
61742BREINFORCEMENT, BACK WINDOW OPENING, LH
61786FBRACKET, REAR BUMPER SIDE, RH
61787EBRACKET, REAR BUMPER SIDE, LH
61815CCOVER, ROOF SIDE, INNER UPPER
61824PLATE, NOISE CONTROL, NO.1
61848ARETAINER, QUARTER PANEL, LH
62151BPAD, COWL SIDE SILENCER
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
64305BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH
65631CPLATE, REAR WHEEL HOUSE, FRONT RH
65632BPLATE, REAR WHELL HOUSE, FRONT LH
67873HWEATHERSTRIP, CENTER DOOR, UPPER NO.1
67874HWEATHERSTRIP, CENTER DOOR, UPPER NO.2
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
9016460024
main90164-60024
9017906308
main90179-06308
9018906066
main90189-06066
9018906157
main90189-06157
9046704034
main90467-04034
9046706169
main90467-06169
91511B0812
main91511-B0812
9151580818
main91515-80818

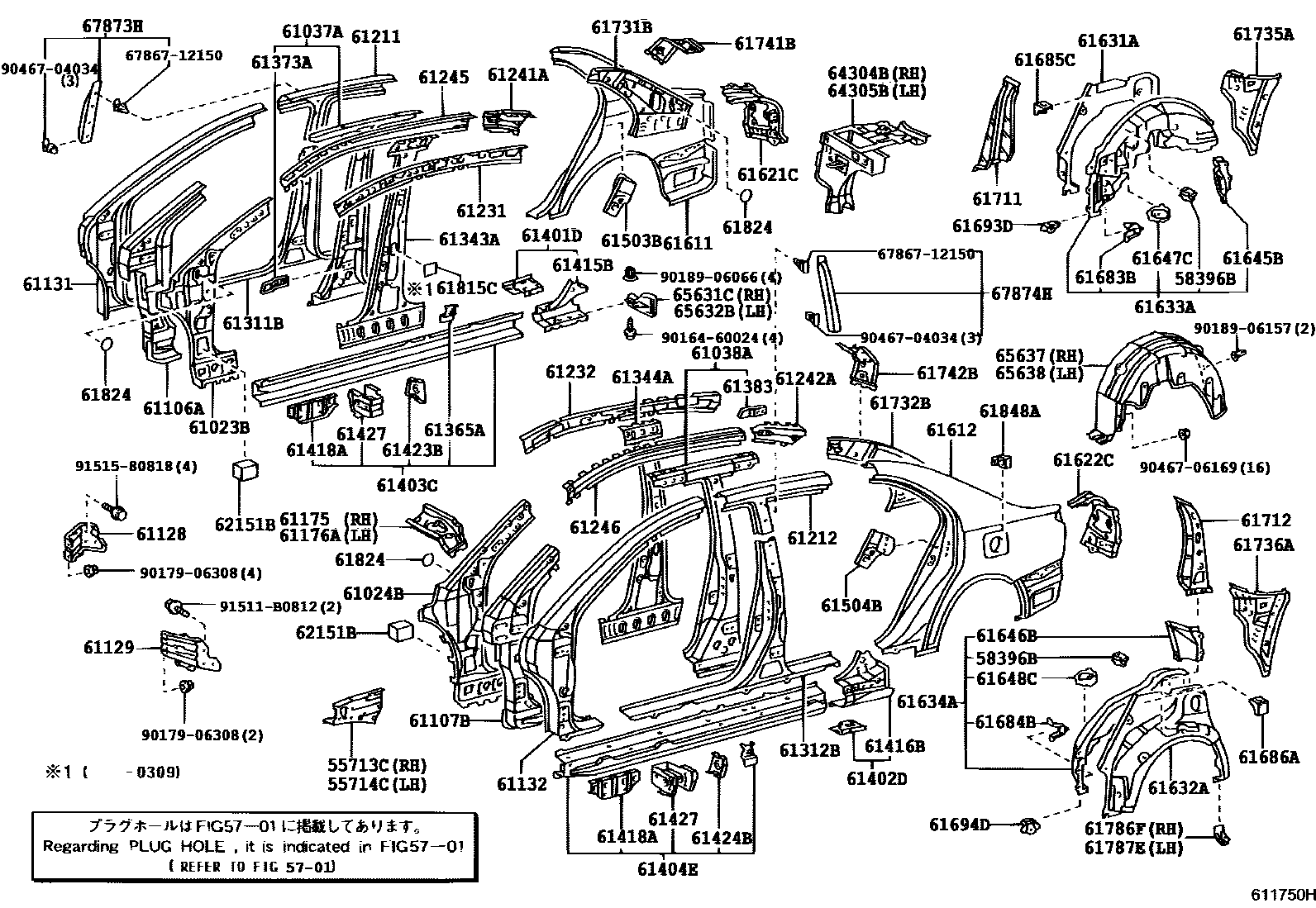

92 parts on this diagram · 1 diagram in section
