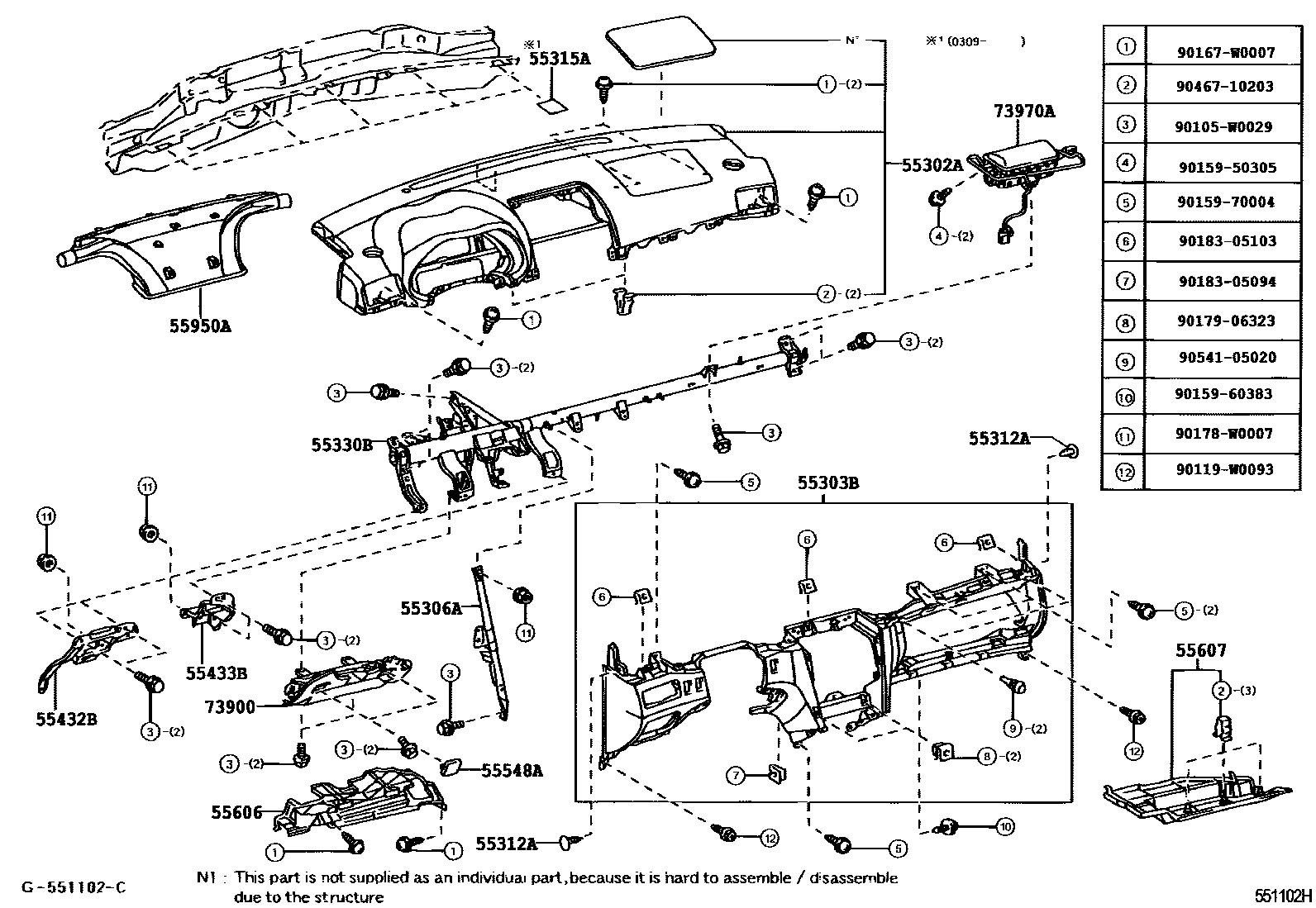

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1DRIVER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1CENTER 0009 1PASSENGER SIDE 0010 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-05010-B0iAZT250..LHD200301-200604

DK.GRAY,TRIM0#,1#

sub55302-05011¥67,600

main55302-05010-B0iAZT250..LHD200604-200707

DK.GRAY,TRIM1#,4#

sub55302-05011¥67,600

main55302-05011-B0iAZT250..LHD200708

DK.GRAY,TRIM1#,4#

sub55302-05011¥67,600

main55302-05020-B0iAZT250..RHD200604-200707

DK.GRAY,TRIM1#,4#

sub55302-05021¥67,600

main55302-05020-B0iAZT250..RHD200301-200604

DK.GRAY,TRIM0#,1#

sub55302-05021¥67,600

main55302-05021-B0iAZT250..RHD200708

DK.GRAY,TRIM1#,4#

sub55302-05021¥67,600

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-05011-A0iAZT250..LHD200301-200604

IVORY,TRIM0#

sub55303-05011

main55303-05011-B0iAZT250..LHD200301-200604

DK.GRAY,TRIM1#

sub55303-05011

main55303-05011-E0iAZT250..LHD200604

GREGE,TRIM4#

sub55303-05011

main55303-05021-A0iAZT250..RHD200301-200604

IVORY,TRIM0#

main55303-05021-B0iAZT250..RHD200301-200604

DK.GRAY,TRIM1#

main55303-05021-E0iAZT250..RHD200604

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-05080iAZT250..LHD200301-200604

main55306-05090iAZT250..RHD¥2,810200301-200604

55312ACLIP, INSTRUMENT PANEL

main90467-05161-A0iAZT250200301-200604

IVORY,TRIM0#

sub90467-05161¥90

main90467-05161-B0iAZT250200301-200604

DK.GRAY,TRIM1#

sub90467-05161¥90

main90467-05161-B0iAZT250200604

DK.GRAY

sub90467-05161¥90

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-05050iAZT250¥180200309-200604

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-05110iAZT250..LHD200301-200501

sub55330-05111

main55330-05111iAZT250..LHD200502-200604

sub55330-05130

main55330-05120iAZT250..RHD¥20,800200301-200501

sub55330-05121¥20,800

main55330-05121iAZT250..RHD¥20,800200502-200604

sub55330-05140¥20,700

main55330-05130iAZT250..LHD200604

main55330-05140iAZT250..RHD¥20,700200604

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20390iAZT250..LHD¥2,790200301-200604

main55432-20400iAZT250..RHD¥2,790200301-200604

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-20170iAZT250..LHD¥1,930200301-200604

main55433-20180iAZT250..RHD¥1,980200301-200604

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-05030-A0iAZT250200301-200604

IVORY,TRIM0#

main55548-05030-B0iAZT250200301-200604

DK.GRAY,TRIM1#

main55548-05030-E0iAZT250200604

GREGE,TRIM4#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-05030iAZT250..LHD200301-200604

main55606-05040iAZT250..RHD¥4,270200301-200604

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-05010iAZT250..LHD200301-200604

main55607-05020iAZT250..RHD¥4,270200301-200604

55950ANOZZLE ASSY, DEFROSTER

main55950-05050iAZT250..LHD200301-200604

main55950-05070iAZT250..RHD¥7,400200301-200604

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-05010-A0iAZT250..LHD200301-200604

IVORY,TRIM0#

main73900-05010-B0iAZT250..LHD200301-200604

DK.GRAY,TRIM1#

main73900-05010-E0iAZT250..LHD200604

GREGE,TRIM4#

main73900-05020-A0iAZT250..RHD200301-200604

IVORY,TRIM0#

main73900-05020-B0iAZT250..RHD200301-200604

DK.GRAY,TRIM1#

main73900-05020-E0iAZT250..RHD200604

GREGE,TRIM4#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-05070iAZT250..LHD¥132,000200301-200604

sub73970-05140

main73970-05080iAZT250..RHD¥132,000200301-200604

sub73970-05150

90105W0029

main90105-W0029¥130

90119W0093

main90119-W0093¥110

9015950305

main90159-50305¥120

9015960383

main90159-60383¥70

9015970004

main90159-70004¥60

90167W0007

main90167-W0007¥110

90178W0007

main90178-W0007¥60

9017906323

main90179-06323¥110

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9046710203

main90467-10203¥60

9054105020

main90541-05020¥110

26 parts on this diagram · 10 diagrams in section
