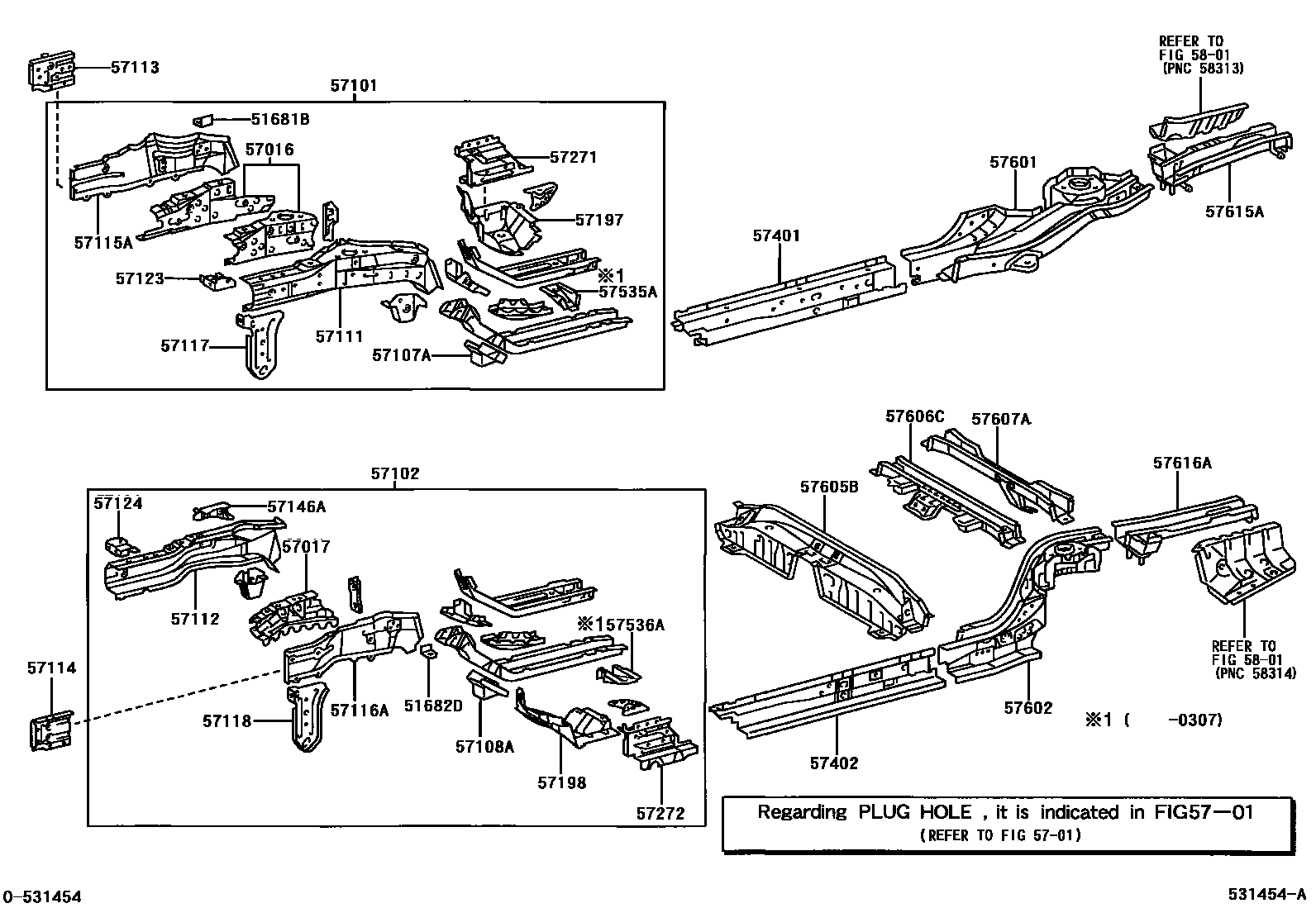

FLOOR SIDE MEMBER

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-32050iAZT250200301-200604

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-32040iAZT250200301-200604

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-02030iAZT250200301-200604

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-05010iAZT250200301-200604

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-05060iAZT250200301-200503

main57101-05061iAZT250200503-200509

sub57101-05090

main57101-05090iAZT250200509-200604

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-05050iAZT250200301-200509

main57102-05070iAZT250200509-200604

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-05010iAZT250200301-200604

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-05010iAZT250200301-200604

57111MEMBER, FRONT SIDE, RH

main57111-05020iAZT250200301-200503

sub57111-05021

main57111-05021iAZT250200503-200604

57112MEMBER, FRONT SIDE, LH

main57112-05030iAZT250200301-200604

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-05020iAZT250200301-200604

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-05020iAZT250200301-200604

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-02010iAZT250200301-200604

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-02010iAZT250200301-200604

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-05020iAZT250200301-200604

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-05020iAZT250200301-200604

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-05010iAZT250200301-200604

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-05010iAZT250200301-200604

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-12020iAZT250200301-200604

57197BOX, TORQUE, FRONT RH

main57197-02010iAZT250200301-200604

57198BOX, TORQUE, FRONT LH

main57198-02030iAZT250200301-200604

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-05020iAZT250200301-200604

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-05020iAZT250200301-200604

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-05050iAZT250200301-200604

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-05050iAZT250200301-200604

57535ABRACE, FRONT FLOOR, RH

main57535-13010iAZT250200301-200307

57536ABRACE, FRONT FLOOR, LH

main57536-13010iAZT250200301-200307

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-05080iAZT250200604

main57601-05900iAZT250200301-200402

main57601-05903iAZT250200402-200604

sub57601-05080

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-05100iAZT250200604

main57602-05900iAZT250200301-200402

main57602-05903iAZT250200402-200604

sub57602-05100

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02050iAZT250200301-200604

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-05060iAZT250200301-200604

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-05010iAZT250200301-200604

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57603-05010iAZT250200604

main57615-05901iAZT250200301-200604

sub57603-05010

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57604-05010iAZT250200604

main57616-05901iAZT250200301-200604

sub57604-05010

5801

36 parts on this diagram · 1 diagram in section
