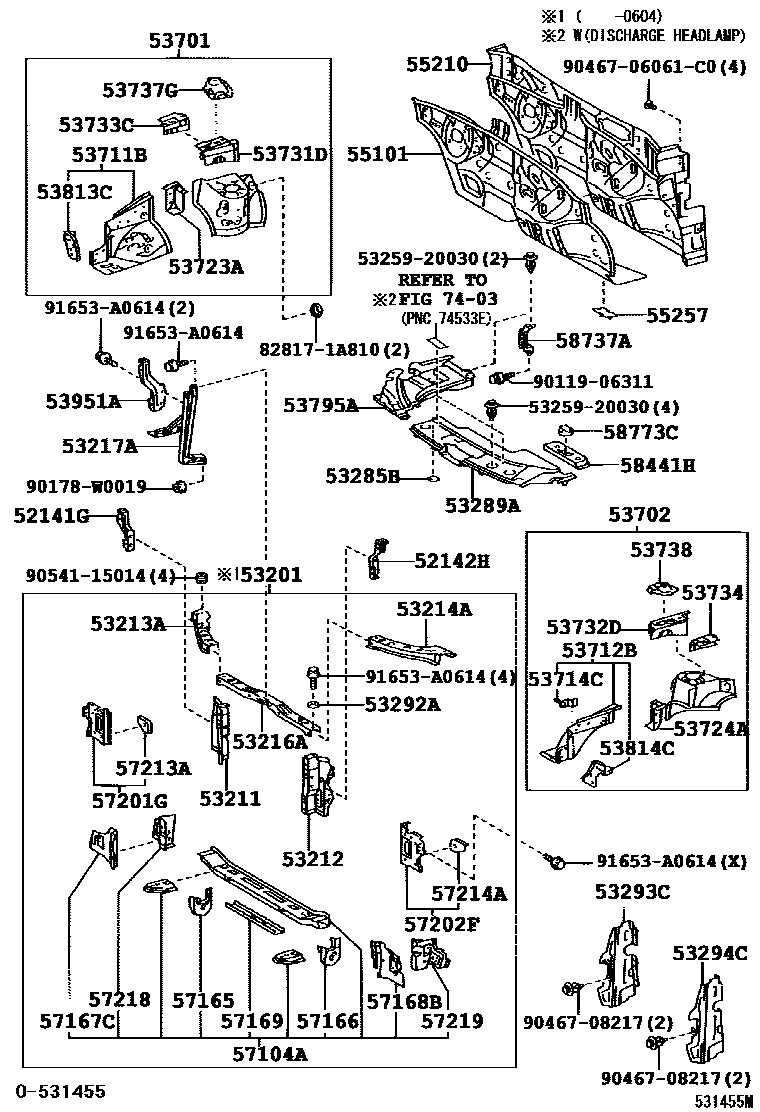

FRONT FENDER APRON & DASH PANEL

52141GSTAY, FRONT BUMPER, RH

main52141-05020iAZT250¥1,510200301-200604

52142HSTAY, FRONT BUMPER, LH

main52142-05020iAZT250¥1,510200301-200604

53201SUPPORT SUB-ASSY, RADIATOR

main53201-05030iAZT250¥43,500200301-200502

sub53201-05901¥40,600

main53201-05901iAZT250¥40,600200503-200604

53211SUPPORT, RADIATOR, RH

main53211-05030iAZT250¥2,980200301-200604

53212SUPPORT, RADIATOR, LH

main53212-05030iAZT250¥2,980200301-200604

53213ASUPPORT, RADIATOR, UPPER RH

main53213-05010iAZT250¥2,980200301-200604

53214ASUPPORT, RADIATOR, UPPER LH

main53214-05010iAZT250¥2,980200301-200604

53216ASUPPORT, RADIATOR, UPPER

main53216-05030iAZT250¥6,800200301-200604

53217ABRACE, HOOD LOCK SUPPORT

main53208-05010iAZT250¥4,430200301-200604

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53155-02020iAZT250¥550200301-200604

53289ACOVER, RADIATOR SUPPORT OPENING

main53141-05030iAZT250¥10,800200301-200604

53292ASEAL, RADIATOR SUPPORT, UPPER

main53882-30040iAZT250¥110200301-200604

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-05010iAZT250¥3,960200301-200604

main53293-05030iAZT250¥4,320200604

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-05010iAZT250¥4,520200301-200604

main53294-05030iAZT250¥4,630200604

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-05060iAZT250¥19,100200301-200508

sub53701-05070¥19,100

main53701-05070iAZT250¥19,100200509-200604

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-05060iAZT250¥19,100200301-200508

sub53702-05070¥19,100

main53702-05070iAZT250¥19,100200509-200604

53711BAPRON, FRONT FENDER, FRONT RH

main53711-05901iAZT250¥6,400200301-200604

53712BAPRON, FRONT FENDER, FRONT LH

main53712-05901iAZT250¥6,400200301-200604

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-20100iAZT250¥390200301-200604

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-12080iAZT250¥720200301-200604

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-12070iAZT250¥720200301-200604

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-05030iAZT250¥2,110200301-200604

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-05030iAZT250¥2,110200301-200604

53733CPATCH, FRONT FENDER APRON

main53733-05020iAZT250¥1,040200301-200604

53734PATCH, FRONT FENDER APRON, NO.4

main53734-05020iAZT250¥1,040200301-200604

53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-05010iAZT250¥1,330200301-200604

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-05010iAZT250¥1,330200301-200604

53795ACOVER, ENGINE ROOM, SIDE

main53795-05010iAZT250¥7,000200301-200604

53813CEXTENSION, FRONT FENDER, RH

main53813-05010iAZT250¥650200301-200604

53814CEXTENSION, FRONT FENDER, LH

main53814-05010iAZT250¥520200301-200604

53951ASUPPORT, FRONT END PANEL, UPPER

main53951-05010iAZT250¥850200301-200604

55101PANEL SUB-ASSY, DASH

main55101-05310iAZT250..RHD200301-200604

main55101-05360iAZT250..LHD..4FC200301-200604

main55101-05380iAZT250..5F200301-200604

55210INSULATOR ASSY, DASH PANEL

main55210-05110iAZT250..RHD200301-200309

sub55210-05111¥16,800

main55210-05111iAZT250..RHD¥16,800200309-200604

main55210-05120iAZT250..LHD200301-200505

sub55210-05121

main55210-05121iAZT250..LHD200506-200604

55257COVER, DASH PANEL OPENING

main55257-13010iAZT250¥300200301-200604

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-05030iAZT250¥20,900200301-200502

sub57104-05031¥20,900

main57104-05031iAZT250¥20,900200503-200604

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57165-12070iAZT250¥1,300200301-200604

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57166-12020iAZT250¥1,300200301-200604

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-05030iAZT250¥1,430200301-200604

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-05030iAZT250¥1,600200301-200604

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-05010iAZT250¥3,780200301-200604

(L)

main57169-42030iAZT250¥3,780200301-200604

(J)

57201GEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-05010iAZT250¥3,920200301-200604

57202FEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-05010iAZT250¥3,920200301-200604

57213APLATE, FRONT SIDE MEMBER, REAR RH

main57213-05010iAZT250¥940200301-200604

57214APLATE, FRONT SIDE MEMBER, REAR LH

main57214-05010iAZT250¥1,080200301-200604

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-05010iAZT250¥2,260200301-200604

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-05010iAZT250¥2,380200301-200604

58441HCOVER, BATTERY SERVICE HOLE

main58441-05010iAZT250¥2,440200301-200604

58737ABRACKET, ENGINE SERVICE COVER, RH

main58737-20010iAZT250..RHD¥1,170200301-200604

58773CRETAINER(RADIATOR COVER)

main58773-05050iAZT250¥390200301-200604

7403

5325920030SUPPORT, RADIATOR CENTER

main53259-20030¥230

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810¥220

9011906311

main90119-06311¥100

90178W0019

main90178-W0019¥110

9046706061C0

main90467-06061C0

9046708217

main90467-08217¥80

9054115014

main90541-15014¥320

91653A0614

main91653-A0614¥60

58 parts on this diagram · 1 diagram in section
