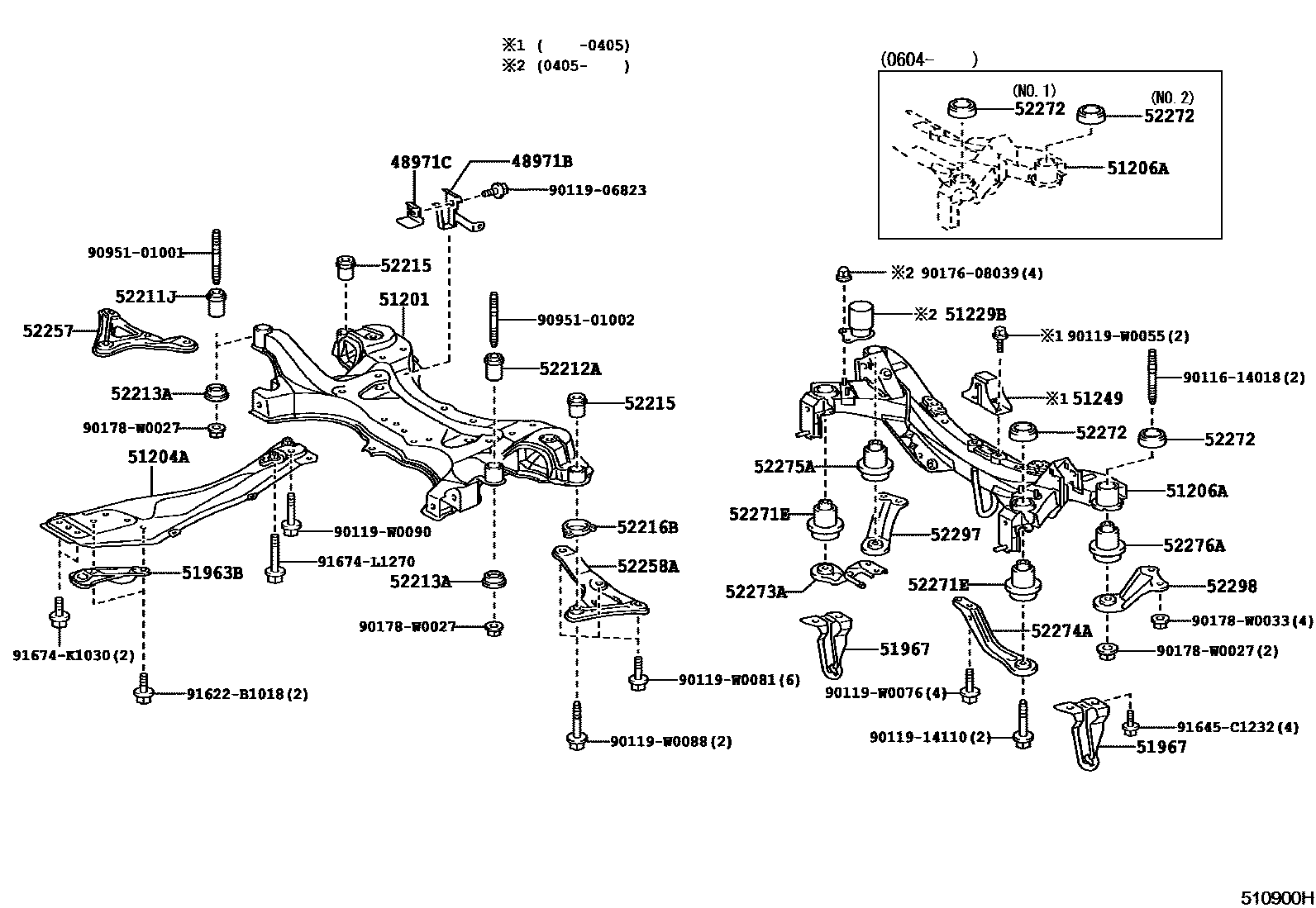

SUSPENSION CROSSMEMBER & UNDER COVER
48971BBRACKET, HEIGHT CONTROL PUMP, NO.1
48971CBRACKET, HEIGHT CONTROL PUMP, NO.2
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51206AMEMBER SUB-ASSY, REAR SUSPENSION
51229BDUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC
51249DAMPER, REAR SUSPENSION MEMBER
51963BHOOK, TRANSPORT, FRONT RH
51967HOOK, TRANSPORT, REAR
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52212ACUSHION, BODY MOUNTING, NO.2
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52257BRACE, FRONT SUSPENSION MEMBER, REAR RH
52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH
52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52272STOPPER, REAR SUSPENSION MEMBER, UPPER
NO.1
NO.2
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH
52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH
52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH
9011614018
9011906823
9011914110
90119W0055
main90119-W0055
90119W0076
main90119-W0076
90119W0081
90119W0088
main90119-W0088
90119W0090
main90119-W0090
9017608039
90178W0027
90178W0033
9095101001
9095101002
91622B1018
91645C1232
91674K1030
91674L1270
41 parts on this diagram · 3 diagrams in section
