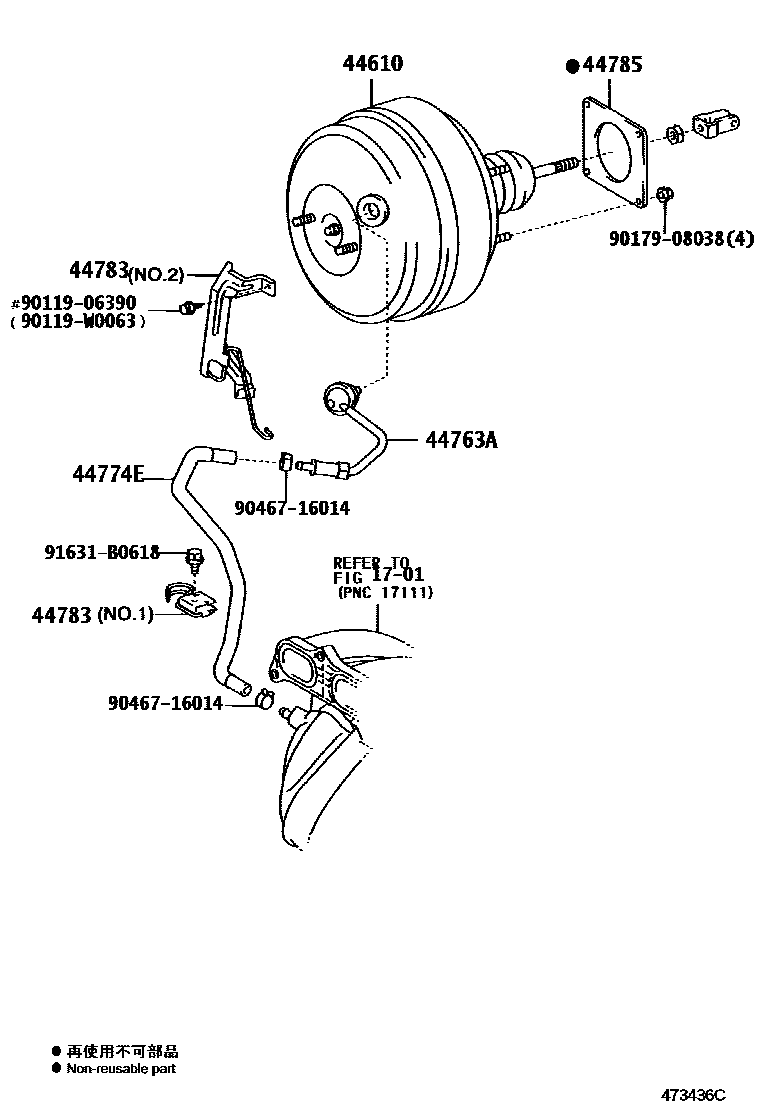

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-05090iAZT250..LHD200301-200604

main44610-05100iAZT250..RHD¥67,800200301-200604

44763ATUBE, HOSE TO HOSE, NO.1

main44763-05050iAZT250..LHD¥1,020200301-200604

main44763-05060iAZT250..RHD¥810200301-200604

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-20350iAZT250..LHD¥2,620200301-200604

main44774-20360iAZT250..RHD¥1,870200301-200604

44783CLAMP, VACUUM HOSE

main44783-20010iAZT250..LHD¥350200301-200604

NO.2

main44783-20040iAZT250..LHD¥320200301-200604

NO.3

main44783-20050iAZT250¥320200301-200604

NO.1

main44783-20060iAZT250..RHD¥580200301-200604

NO.2

44785GASKET, BRAKE BOOSTER

main44785-20020iAZT250¥320200301-200604

9011906390

main90119-06390¥70

90119W0063

main90119-W0063

9017908038

main90179-08038¥130

9046716014

main90467-16014¥230

91631B0618

main91631-B0618¥90

11 parts on this diagram · 2 diagrams in section
