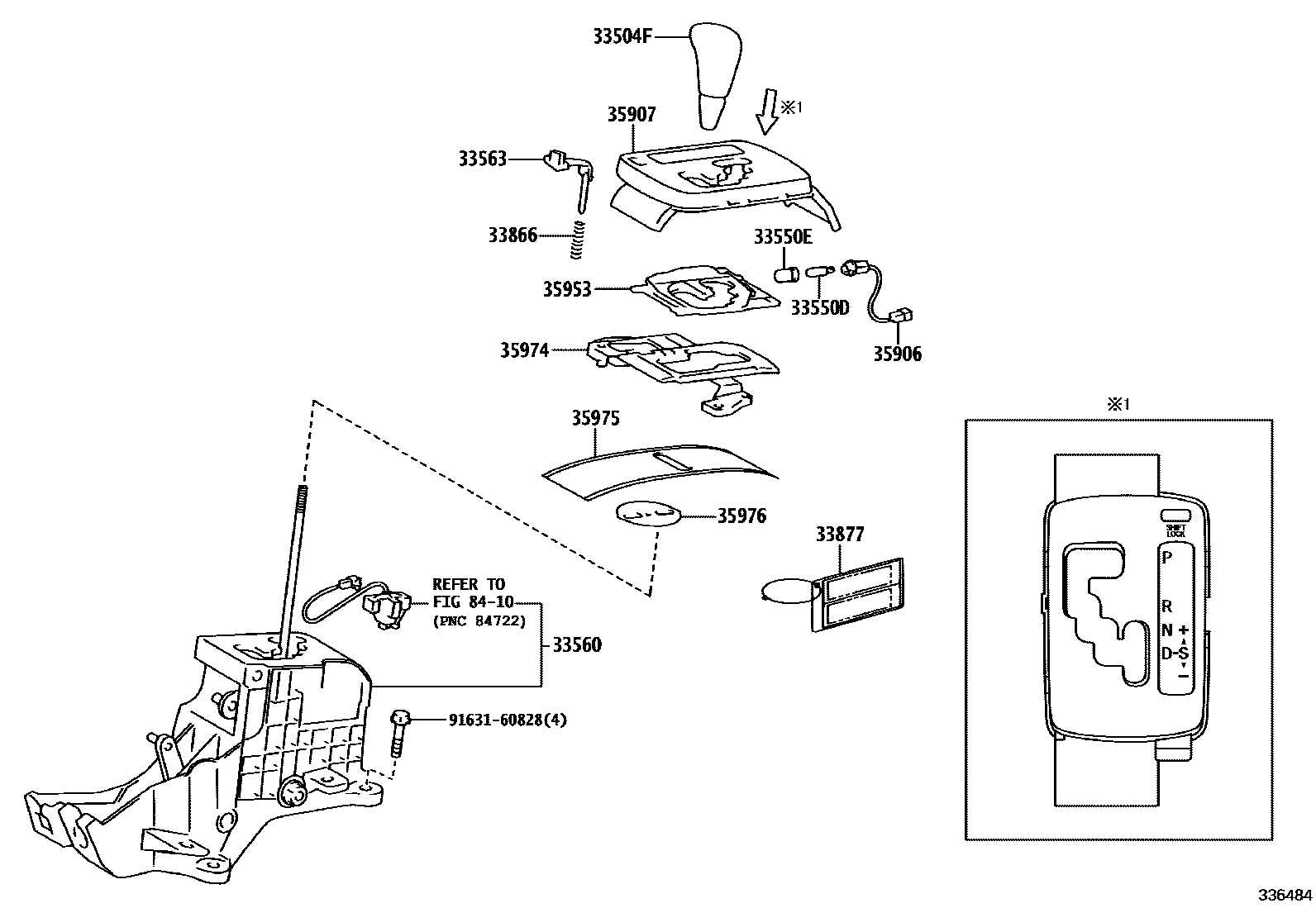

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM0#,1#,(L)
DK.GRAY,TRIM0#,1#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM0#,1#
DK.GRAY,TRIM1#,4#
33550DBULB, POSITION INDICATOR LAMP
14V 0.7W
33550ECAP, POSITION INDICATOR LAMP
33560UNIT ASSY, SHIFT LOCK CONTROL
33563BUTTON, SHIFT LOCK RELEASE
33866SPRING, SHIFT LOCK RELEASE
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35906WIRE SUB-ASSY, INDICATOR LAMP
sub35906-21020
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35953GUIDE, POSITION INDICATOR LIGHT
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8410
9163160828
main91631-60828
15 parts on this diagram · 3 diagrams in section
