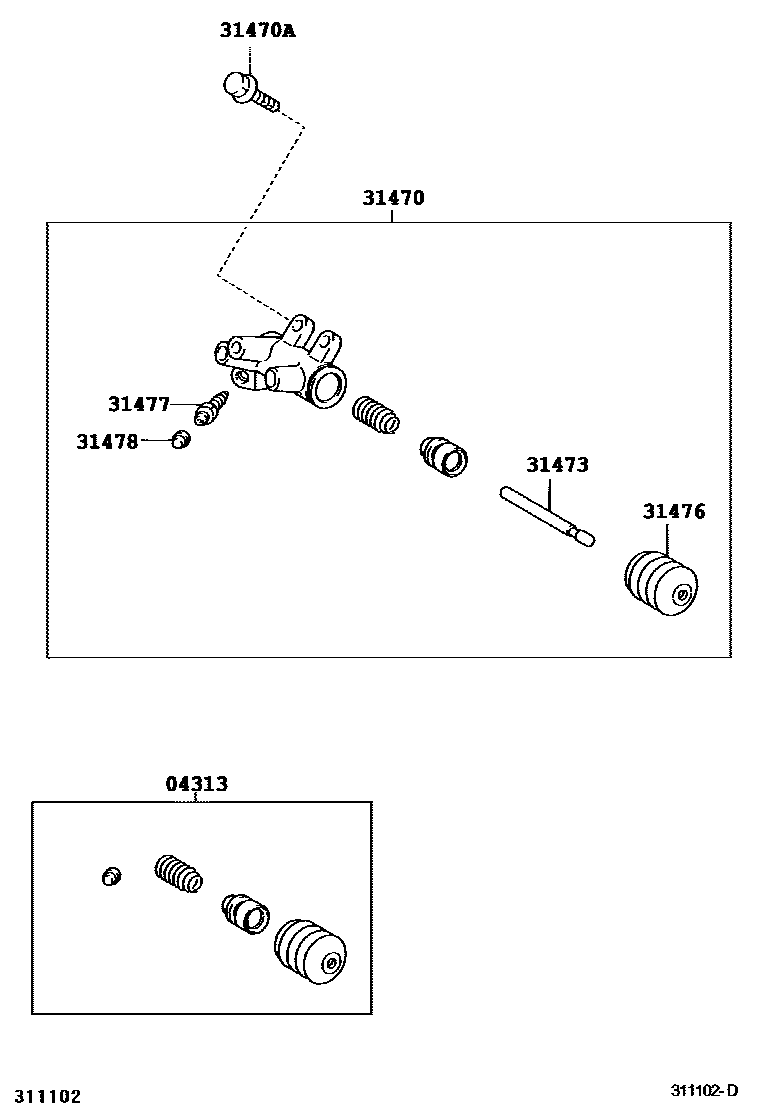

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iAZT250..5F¥780200301-200407

main04313-52020iAZT250..5F¥780200407-200604

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-42030iAZT250..5F¥7,400200301-200407

sub31470-42031¥7,400

main31470-42031iAZT250..5F¥7,400200407-200604

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-W0028iAZT250..5F¥80200307-200604

*8-1.25PX22-17.1

main91611-60822iAZT250..5F¥170200301-200307

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iAZT250..5F¥720200301-200407

main31473-22030iAZT250..5F¥520200407-200604

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAZT250..5F¥230200301-200604

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAZT250..5F¥200200301-200604

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAZT250..5F¥160200301-200604

7 parts on this diagram · 1 diagram in section
