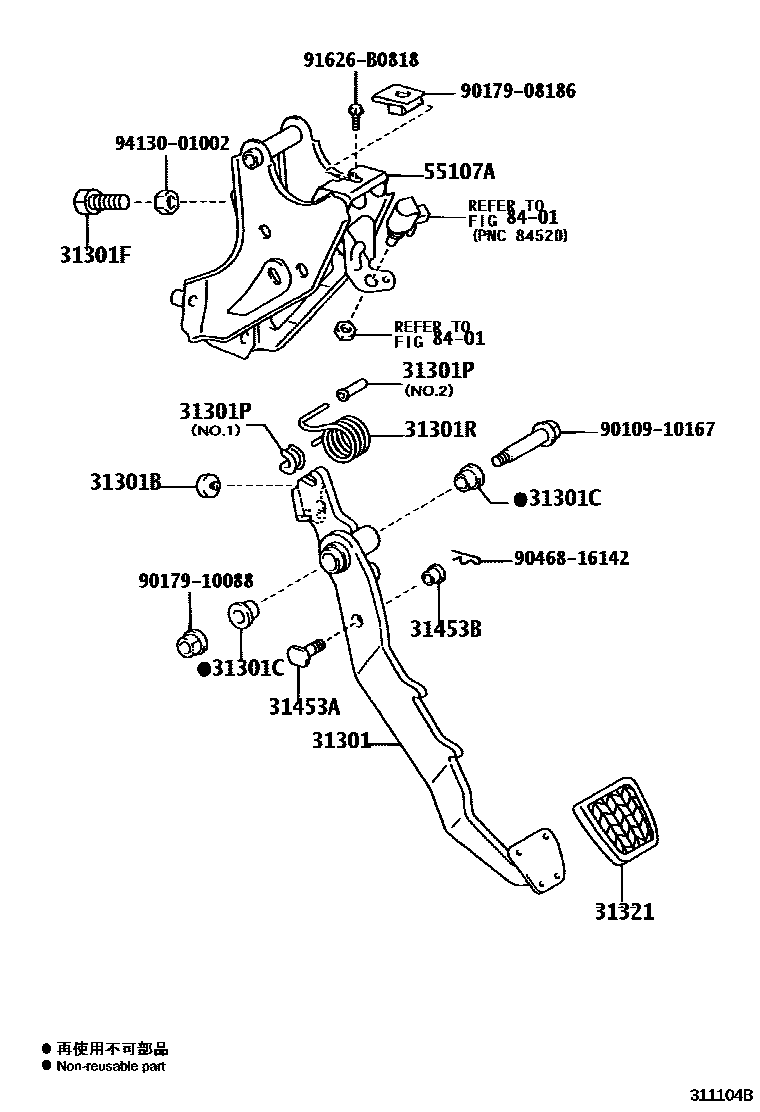

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-05060iAZT250..5F200301-200604

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iAZT250..5F200301-200604

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAZT250..5F200301-200604

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAZT250..5F200301-200604

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iAZT250..5F200301-200604

NO.1

main90389-05019iAZT250..5F200301-200604

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03100iAZT250..5F200301-200604

31321PAD, CLUTCH PEDAL

main31321-52010iAZT250..5F200301-200604

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iAZT250..5F200301-200604

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAZT250..5F200301-200604

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-05080iAZT250..5F200301-200604

8401

9010910167

main90109-10167

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

91626B0818

main91626-B0818

9413001002

main94130-01002

17 parts on this diagram · 2 diagrams in section
