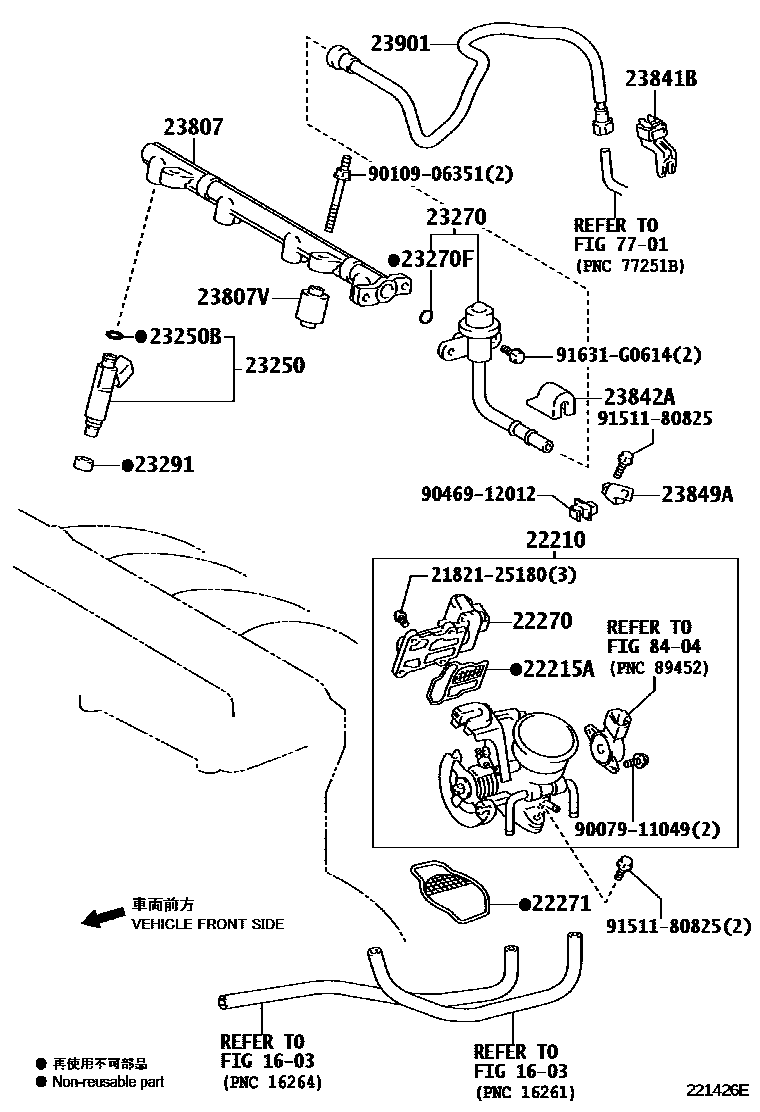

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

22210BODY ASSY, THROTTLE

main22210-28040i1AZFE..AZT250200301-200604

sub22210-28100

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-28042i1AZFE..AZT250200301-200604

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-28010i1AZFE..AZT250200301-200604

22271GASKET, THROTTLE BODY

main22271-28020i1AZFE..AZT250200301-200811

23250INJECTOR ASSY, FUEL

main23209-28040i1AZFE..AZT250200301-200811

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1AZFE..AZT250200301-200607

main90301-07037i1AZFE..AZT250200607

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28020i1AZFE..AZT250200301-200801

sub23270-28021

main23270-28021i1AZFE..AZT250200801

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i1AZFE..AZT250200301-200811

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1AZFE..AZT250200301-200604

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-28030i1AZFE..AZT250200301-200312

sub23814-28031

main23814-28031i1AZFE..AZT250200312-200604

sub23814-28060

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053i1AZFE..AZT250200301-200604

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1AZFE..AZT250200705

main23841-28010i1AZFE..AZT250200301-200704

sub23841-21050

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i1AZFE..AZT250200301-200402

main23842-28010i1AZFE..AZT250200402-200604

23849ASUPPORT, FUEL PIPE

main23849-28040i1AZFE..AZT250200301-200604

23901TUBE SUB-ASSY, FUEL

main23901-0H040i1AZFE..AZT250200301-200604

7701

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911049

main90079-11049

9010906351

main90109-06351

9046912012

main90469-12012

9151180825

main91511-80825

91631G0614

main91631-G0614

24 parts on this diagram · 2 diagrams in section
