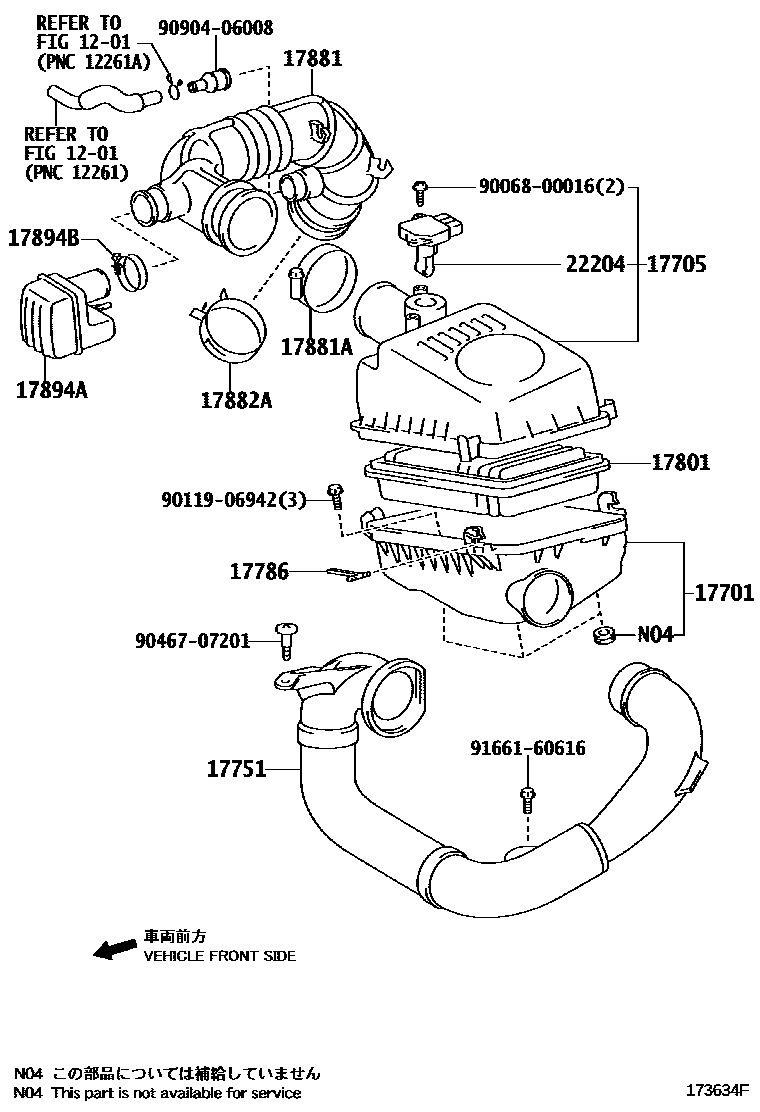

AIR CLEANER

1201

17701CASE SUB-ASSY, AIR CLEANER

main17701-0D041i1AZFE..AZT250200301-200604

17705CAP SUB-ASSY, AIR CLEANER

main17705-0D041i1AZFE..AZT250200301-200604

17751INLET, AIR CLEANER, NO.1

main17751-0H030i1AZFE..AZT250200301-200604

17786CLAMP, AIR CLEANER

main17786-0D011i1AZFE..AZT250200301-200604

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0D010i1AZFE..AZT250200301-200601

(L)

sub17801-0D011

main17801-0D011i1AZFE..AZT250200602-200604

(L)

main17801-22020i1AZFE..AZT250200301-200604

(J)

17881HOSE, AIR CLEANER, NO.1

main17881-0H050i1AZFE..AZT250200301-200604

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800i1AZFE..AZT250200301-200604

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i1AZFE..AZT250200301-200604

17894ARESONATOR, INTAKE AIR, NO.2

main17894-0H020i1AZFE..AZT250200301-200604

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10500i1AZFE..AZT250200301-200604

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0J010i1AZFE..AZT250200301-200604

sub22204-0C020

9006800016

main90068-00016

9011906942

main90119-06942

9046707201

main90467-07201

9090406008

main90904-06008

9166160616

main91661-60616

17 parts on this diagram · 1 diagram in section
