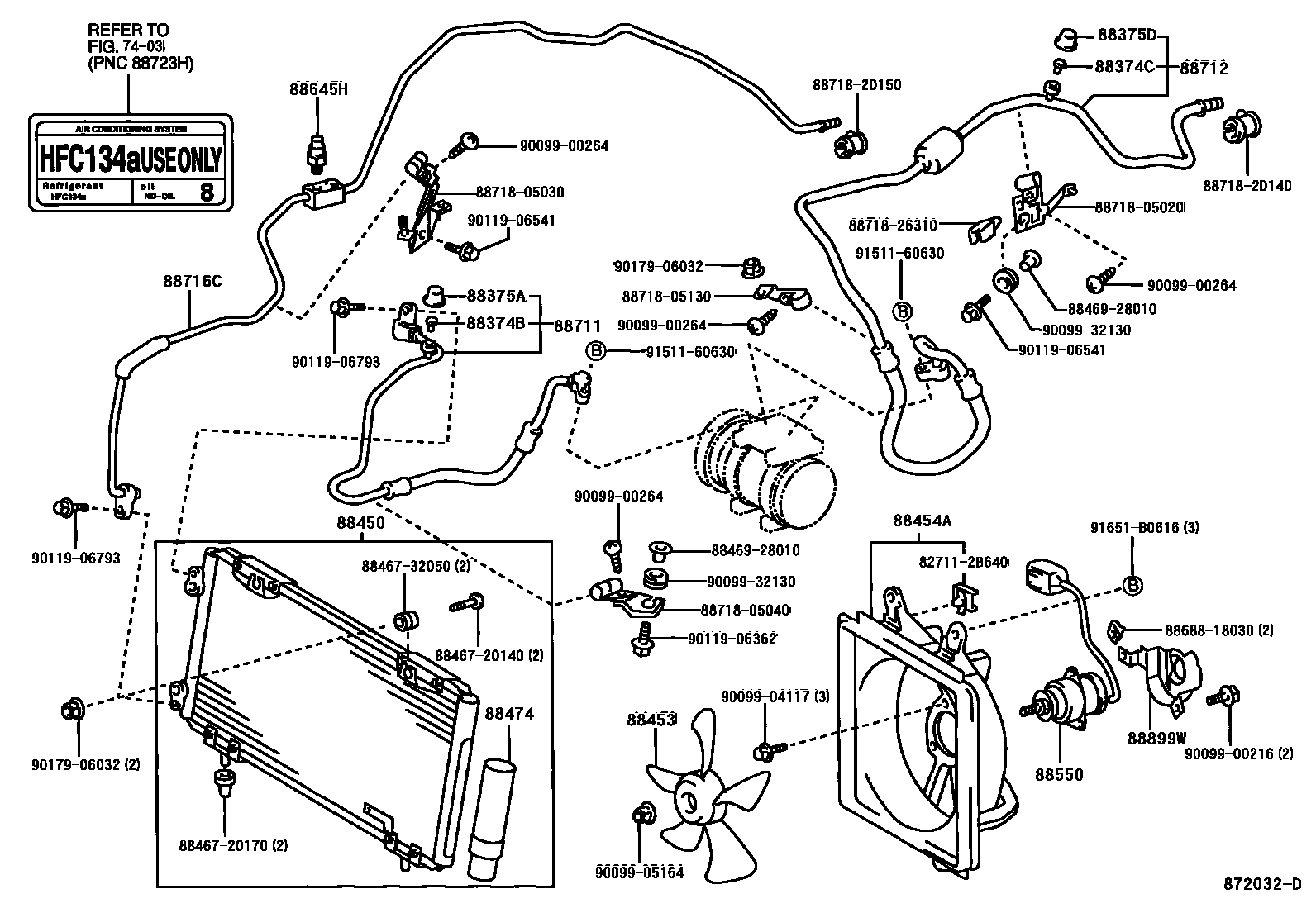

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1MAKER OPTION 0003 1MAKER OPTION 0004 1MAKER OPTION 0005 1MAKER OPTION 0006 1MAKER OPTION 0007 1DEALER OPTION 0008 1DEALER OPTION 0009 1DEALER OPTION 0010 1DEALER OPTION 0011 1O-RING

7403

88374BVALVE, SERVICE, NO.1

main88374-30010iAT220,CT220,ST220199710

88374CVALVE, SERVICE, NO.2

main88374-30010iAT220,CT220,ST220199710

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iAT220,CT220,ST220199710

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAT220,CT220,ST220199710

88450CONDENSER ASSY, W/RECEIVER

main88450-05010iAT220,CT220,ST220..LHD199710-200007

sub88450-05070

main88450-05020iAT220,ST220..RHD199710-200007

sub88450-05080

main88450-05070iST220..LHD200007

main88450-05080iST220..RHD200007

88453FAN, COOLING (FOR CONDENSER)

main16361-02110iST220199710

main16361-74100iCT220199710-199711

sub16361-74110

main16361-74110iCT220199711-200007

main88453-20080iAT220199710-200007

88454ASHROUD, FAN

main16711-02070iST220199710

main16711-74660iAT220199710-200007

main16712-64170iCT220199710-200007

88474DRYER, COOLER

main88474-47010iAT220,CT220,ST220199710

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-11030iCT220199710-200007

main16363-64080iAT220199710-200007

main16363-74250iST220199804

main88550-33010iST220199710-199804

88645HSWITCH, PRESSURE NO.1

main88645-60030iAT220,CT220,ST220199710

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-05010iAT220..RHD199710-200007

main88711-05020iAT220..LHD199710-200007

main88711-05030iST220..RHD199710-200007

sub88711-05180

main88711-05040iST220..LHD199710-200007

sub88711-05170

main88711-05060iCT220199710-200007

main88711-05170iST220..LHD200007-200210

sub88711-05220

main88711-05180iST220..RHD200007-200210

sub88711-05210

main88711-05210iST220..RHD200007-200301

DEALER OPTION

main88711-05220iST220..LHD200007-200301

DEALER OPTION

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-05010iAT220..RHD199710-200007

MAKER OPTION

main88712-05020iST220..RHD199710

MAKER OPTION

main88712-05040iAT220..LHD199710-200007

MAKER OPTION

main88712-05050iST220..LHD199710

main88712-05060iCT220199710-200007

main88712-05070iAT220..RHD199710-200007

DEALER OPTION

main88712-05080iST220..RHD199710

DEALER OPTION

main88712-05100iAT220..LHD199710-200007

DEALER OPTION

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-05090iAT220,ST220..RHD199710-200007

main88716-05100iAT220,ST220..LHD199710

main88716-05110iCT220199710-200007

main88716-05290iST220..RHD200007

88899WSUPPORT SUB-ASSY, B

main16374-02010iST220199710

main88899-20270iAT220199710-200007

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846720140CUSHION, COOLER CONDENSER, NO.1

main88467-20140

8846720170CUSHION, COOLER CONDENSER, NO.1

main88467-20170

8846732050CUSHION, COOLER CONDENSER, NO.1

main88467-32050

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

8868818030BRACKET, COOLER DIAPHRAGM

main88688-18030

8871805020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-05020

8871805030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-05030

8871805040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-05040

8871805130PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-05130

8871826310PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26310

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

9009900216

main90099-00216

9009900264

main90099-00264

9009904117

main90099-04117

9009905164

main90099-05164

9009932130

main90099-32130

9011906362

main90119-06362

9011906541

main90119-06541

9011906793

main90119-06793

9017906032

main90179-06032

9151160630

main91511-60630

91651B0616

main91651-B0616

39 parts on this diagram · 11 diagrams in section
