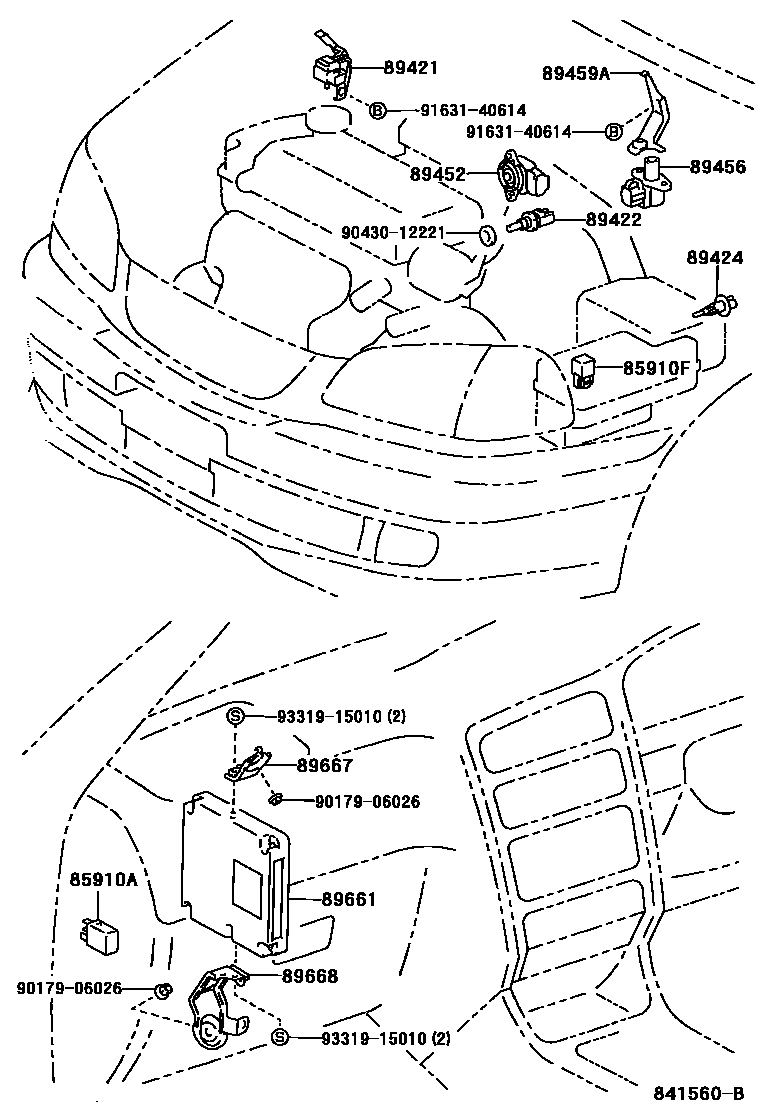

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87013iAT220,ST220199710

sub90080-87021

85910FRELAY, COMPUTER (FOR EFI)

main90080-87013iAT220,ST220199710

sub90080-87021

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-20250iAT220,ST220199710

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iAT220,ST220199710

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAT220,ST220199710

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iST220;AT220..LHD199710

main89452-33030iAT220..RHD199710-200007

89456RESISTOR, VARIABLE

main89456-30010iAT220,ST220199710

89459ABRACKET, VARIABLE RESISTOR

main89459-20030iAT220,ST220199710

89661COMPUTER, ENGINE CONTROL

main89661-05290iST220..MTM199710

main89661-05300iST220..ATM199710

main89661-2D670iAT220..MTM199710-200007

main89661-2D680iAT220..ATM199710-200007

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-05010iAT220,ST220199710-200007

main89667-05030iST220200007

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-05010iAT220,ST220..RHD199710-200007

main89668-05020iAT220,ST220..LHD199710-200007

main89668-05040iST220..RHD200007

main89668-05050iST220..LHD200007

9017906026

main90179-06026

9043012221

main90430-12221

9163140614

main91631-40614

9331915010

main93319-15010

15 parts on this diagram · 4 diagrams in section
