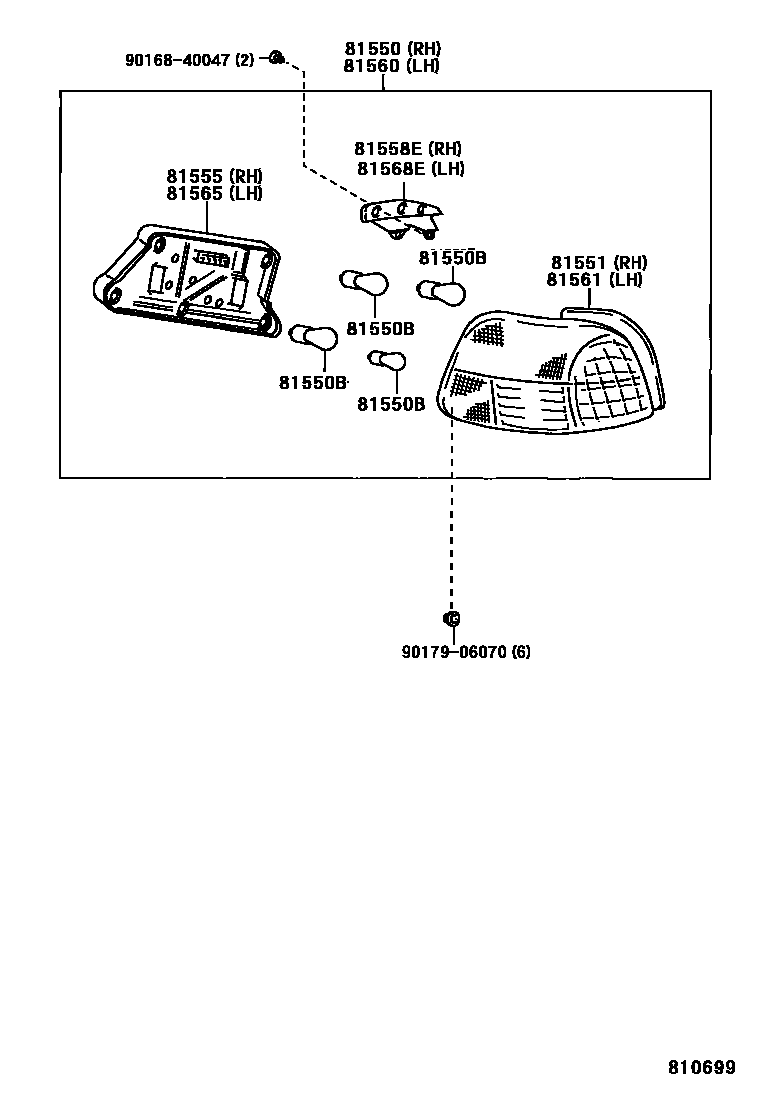

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-05060iAT220,CT220,ST220199710-199811

sub81551-05060

sub81555-05050

sub90080-81068

sub99132-11210

main81550-05061iAT220,CT220,ST220199811-200007

sub81551-05060

sub81555-05050

sub90080-81068

sub99132-11210

main81550-05100iST220200007

sub81551-05100

sub81552-05090

sub81555-05090

sub90080-81046

sub90080-81068

sub99132-11210

81550BBULB(FOR REAR COMBINATION LAMP)

main90080-81035iST220200007

12V 21W,CLEAR

main90080-81035iAT220,CT220,ST220199710-200007

12V 21W

main90080-81046iST220200007

12V 21W,ORANGE

main90080-81068iAT220,CT220,ST220199710

12V 5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-05060iAT220,CT220,ST220199710-200007

main81551-05100iST220200007

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-05050iAT220,CT220,ST220199710-200007

main81555-05090iST220200007

81558ECOVER, REAR COMBINATION LAMP, RH

main81558-2B020iAT220,CT220,ST220199710-199811

81560LAMP ASSY, REAR COMBINATION, LH

main81560-05060iAT220,CT220,ST220199710-199811

sub81561-05060

sub81565-05050

sub90080-81068

sub99132-11210

main81560-05061iAT220,CT220,ST220199811-200007

sub81561-05060

sub81565-05050

sub90080-81068

sub99132-11210

main81560-05100iST220200007

sub81561-05100

sub81552-05090

sub81565-05090

sub90080-81046

sub90080-81068

sub99132-11210

81561LENS, REAR COMBINATION LAMP, LH

main81561-05060iAT220,CT220,ST220199710-200007

main81561-05100iST220200007

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-05050iAT220,CT220,ST220199710-200007

main81565-05090iST220200007

81568ECOVER, REAR COMBINATION LAMP, LH

main81568-2B020iAT220,CT220,ST220199710-199811

9016840047

main90168-40047

9017906070

main90179-06070

11 parts on this diagram · 2 diagrams in section
