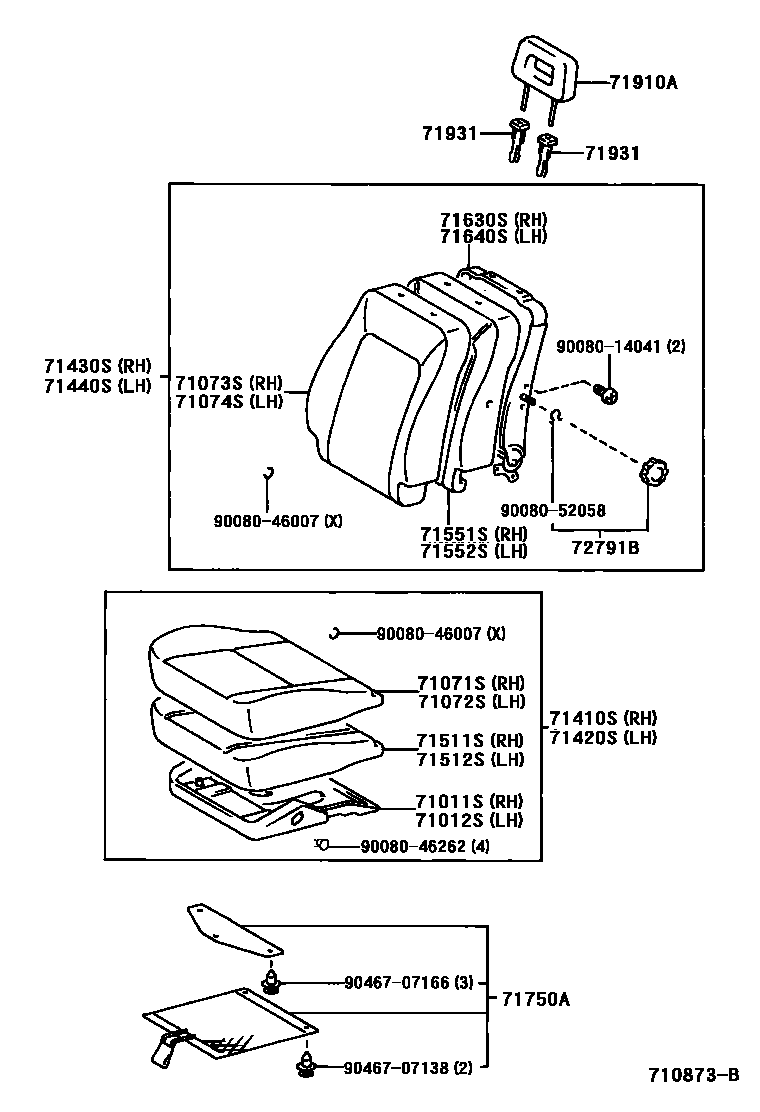

FRONT SEAT & SEAT TRACK

0001 1 0002 1NORMAL ADJUSTER 0003 1VERTICAL ADJUSTER

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-05030iAT220,CT220,ST220199710

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-05030iAT220,CT220,ST220199710

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-05340-B0iAT220,CT220,ST220..LHD199710-199810

MEDIUM GRAY,TRIM1#

main71071-05340-G0iAT220,CT220,ST220..LHD199710-199810

SLATE GREEN,TRIM6#

main71071-05341-B2iAT220,CT220,ST220..LHD199810-200007

MEDIUM GRAY,TRIM1#

main71071-05341-G1iAT220,CT220,ST220..LHD199810-200007

LT. GREEN,TRIM6#

main71071-05360-B0iAT220,ST220..RHD199710-199810

MEDIUM GRAY,TRIM1#

main71071-05360-G0iAT220,ST220..RHD199710-199810

SLATE GREEN,TRIM6#

main71071-05361-B2iAT220,ST220..RHD199810-200007

MEDIUM GRAY,TRIM1#

main71071-05361-G1iAT220,ST220..RHD199810-200007

LT. GREEN,TRIM6#

main71071-05460-B1iAT220,ST220..RHD199901-200007

LINEA LUNA,MEDIUM GRAY,TRIM1#

main71071-05470-B1iAT220,CT220,ST220..LHD199901-200007

LINEA LUNA,MEDIUM GRAY,TRIM1#

main71071-05490-B0iST220..LHD200007-200203

SEAT = TYPE B-*104,GRAY,TRIM1#

sub71071-05491

main71071-05490-G0iST220..LHD200007-200203

SEAT = TYPE B-*104,GREEN,TRIM6#

sub71071-05491

main71071-05491-B0iST220..LHD200203

SEAT = TYPE B-*104,GRAY,TRIM1#

main71071-05491-G0iST220..LHD200203

SEAT = TYPE B-*104,GREEN,TRIM6#

main71071-05510-B0iST220..RHD200007-200203

SEAT = TYPE B-*104,GRAY,TRIM1#

sub71071-05511

main71071-05510-G0iST220..RHD200007-200203

SEAT = TYPE B-*104,GREEN,TRIM6#

sub71071-05511

main71071-05511-B0iST220..RHD200203

SEAT = TYPE B-*104,GRAY,TRIM1#

main71071-05511-G0iST220..RHD200203

SEAT = TYPE B-*104,GREEN,TRIM6#

main71071-05640-B0iST220..LHD200107

SEAT = TYPE E-*104,DK.GRAY,TRIM1#

main71071-05660-B0iST220..RHD200107

SEAT = TYPE E-*104,DK.GRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-05340-B0iAT220,ST220..RHD199710-199810

MEDIUM GRAY,TRIM1#

main71071-05340-G0iAT220,ST220..RHD199710-199810

SLATE GREEN,TRIM6#

main71071-05341-B2iAT220,ST220..RHD199810-200007

MEDIUM GRAY,TRIM1#

main71071-05341-G1iAT220,ST220..RHD199810-200007

LT. GREEN,TRIM6#

main71071-05470-B1iAT220,ST220..RHD199901-200007

LINEA LUNA,MEDIUM GRAY,TRIM1#

main71071-05490-B0iST220..RHD200007-200203

SEAT = TYPE B-*104,GRAY,TRIM1#

sub71071-05491

main71071-05490-G0iST220..RHD200007-200203

SEAT = TYPE B-*104,GREEN,TRIM6#

sub71071-05491

main71071-05491-B0iST220..RHD200203

SEAT = TYPE B-*104,GRAY,TRIM1#

main71071-05491-G0iST220..RHD200203

SEAT = TYPE B-*104,GREEN,TRIM6#

main71071-05640-B0iST220..RHD200107

SEAT = TYPE E-*104,DK.GRAY,TRIM1#

main71072-05360-B0iAT220,CT220,ST220..LHD199710-199810

MEDIUM GRAY,TRIM1#

main71072-05360-G0iAT220,CT220,ST220..LHD199710-199810

SLATE GREEN,TRIM6#

main71072-05361-B2iAT220,CT220,ST220..LHD199810-200007

MEDIUM GRAY,TRIM1#

main71072-05361-G1iAT220,CT220,ST220..LHD199810-200007

LT. GREEN,TRIM6#

main71072-05450-B1iAT220,CT220,ST220..LHD199901-200007

LINEA LUNA,MEDIUM GRAY,TRIM1#

main71072-05470-B0iST220..LHD200007-200203

SEAT = TYPE B-*104,GRAY,TRIM1#

sub71072-05471

main71072-05470-G0iST220..LHD200007-200203

SEAT = TYPE B-*104,GREEN,TRIM6#

sub71072-05471

main71072-05471-B0iST220..LHD200203

SEAT = TYPE B-*104,GRAY,TRIM1#

main71072-05471-G0iST220..LHD200203

SEAT = TYPE B-*104,GREEN,TRIM6#

main71072-05520-B0iST220..LHD200107

SEAT = TYPE E-*104,DK.GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-05340-B0iAT220,ST220..RHD199901-200007

LINEA LUNA,MEDIUM GRAY,TRIM1#

main71073-05380-B0iAT220,CT220,ST220..LHD199901-200007

LINEA LUNA,MEDIUM GRAY,TRIM1#

main71073-05490-B0iAT220,CT220,ST220..LHD199710-199810

MEDIUM GRAY,TRIM1#

main71073-05490-G0iAT220,CT220,ST220..LHD199710-199810

SLATE GREEN,TRIM6#

main71073-05491-B2iAT220,CT220,ST220..LHD199810-200007

MEDIUM GRAY,TRIM1#

main71073-05491-G1iAT220,CT220,ST220..LHD199810-200007

LT. GREEN,TRIM6#

main71073-05500-B0iAT220,ST220..RHD199710-199810

MEDIUM GRAY,TRIM1#

main71073-05500-G0iAT220,ST220..RHD199710-199810

SLATE GREEN,TRIM6#

main71073-05501-B2iAT220,ST220..RHD199810-200007

MEDIUM GRAY,TRIM1#

main71073-05501-G1iAT220,ST220..RHD199810-200007

LT. GREEN,TRIM6#

main71073-05580-B0iST220..LHD200007-200203

SEAT = TYPE B-*104,GRAY,TRIM1#

sub71073-05581

main71073-05580-G0iST220..LHD200007-200203

SEAT = TYPE B-*104,GREEN,TRIM6#

sub71073-05581

main71073-05581-B0iST220..LHD200203

SEAT = TYPE B-*104,GRAY,TRIM1#

main71073-05581-G0iST220..LHD200203

SEAT = TYPE B-*104,GREEN,TRIM6#

main71073-05620-B0iST220..RHD200007-200203

SEAT = TYPE B-*104,GRAY,TRIM1#

sub71073-05621

main71073-05620-G0iST220..RHD200007-200203

SEAT = TYPE B-*104,GREEN,TRIM6#

sub71073-05621

main71073-05621-B0iST220..RHD200203

SEAT = TYPE B-*104,GRAY,TRIM1#

main71073-05621-G0iST220..RHD200203

SEAT = TYPE B-*104,GREEN,TRIM6#

main71073-05810-B0iST220..RHD200107

SEAT = TYPE E-*104,DK.GRAY,TRIM1#

main71073-05820-B0iST220..LHD200107

SEAT = TYPE E-*104,DK.GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-05380-B0iAT220,ST220..RHD199901-200007

LINEA LUNA,MEDIUM GRAY,TRIM1#

main71073-05490-B0iAT220,ST220..RHD199710-199810

MEDIUM GRAY,TRIM1#

main71073-05490-G0iAT220,ST220..RHD199710-199810

SLATE GREEN,TRIM6#

main71073-05491-B2iAT220,ST220..RHD199810-200007

MEDIUM GRAY,TRIM1#

main71073-05491-G1iAT220,ST220..RHD199810-200007

LT. GREEN,TRIM6#

main71073-05580-B0iST220..RHD200007-200203

SEAT = TYPE B-*104,GRAY,TRIM1#

sub71073-05581

main71073-05580-G0iST220..RHD200007-200203

SEAT = TYPE B-*104,GREEN,TRIM6#

sub71073-05581

main71073-05581-B0iST220..RHD200203

SEAT = TYPE B-*104,GRAY,TRIM1#

main71073-05581-G0iST220..RHD200203

SEAT = TYPE B-*104,GREEN,TRIM6#

main71073-05820-B0iST220..RHD200107

SEAT = TYPE E-*104,DK.GRAY,TRIM1#

main71074-05320-B0iAT220,CT220,ST220..LHD199710-199810

MEDIUM GRAY,TRIM1#

main71074-05320-G0iAT220,CT220,ST220..LHD199710-199810

SLATE GREEN,TRIM6#

main71074-05321-B2iAT220,CT220,ST220..LHD199810-200007

MEDIUM GRAY,TRIM1#

main71074-05321-G1iAT220,CT220,ST220..LHD199810-200007

LT. GREEN,TRIM6#

main71074-05370-B0iAT220,CT220,ST220..LHD199901-200007

LINEA LUNA,MEDIUM GRAY,TRIM1#

main71074-05430-B0iST220..LHD200007-200203

SEAT = TYPE B-*104,GRAY,TRIM1#

sub71074-05431

main71074-05430-G0iST220..LHD200007-200203

SEAT = TYPE B-*104,GREEN,TRIM6#

sub71074-05431

main71074-05431-B0iST220..LHD200203

SEAT = TYPE B-*104,GRAY,TRIM1#

main71074-05431-G0iST220..LHD200203

SEAT = TYPE B-*104,GREEN,TRIM6#

main71074-05630-B0iST220..LHD200107

SEAT = TYPE E-*104,DK.GRAY,TRIM1#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-05310-B0iAT220,CT220,ST220..LHD199710-199810

***,MEDIUM GRAY,TRIM1#

main71410-05310-G0iAT220,CT220,ST220..LHD199710-199810

***,SLATE GREEN,TRIM6#

main71410-05311-B2iAT220,CT220,ST220..LHD199810-200007

***,MEDIUM GRAY,TRIM1#

main71410-05311-G1iAT220,CT220,ST220..LHD199810-200007

***,LT.GREEN,TRIM6#

main71410-05330-B0iAT220,ST220..RHD199710-199810

***,MEDIUM GRAY,TRIM1#

main71410-05330-G0iAT220,ST220..RHD199710-199810

***,SLATE GREEN,TRIM6#

main71410-05331-B2iAT220,ST220..RHD199810-200007

***,MEDIUM GRAY,TRIM1#

main71410-05331-G1iAT220,ST220..RHD199810-200007

***,LT.GREEN,TRIM6#

main71410-05400-B0iAT220,ST220..RHD199901-200007

***,LINEA LUNA,MEDIUM GRAY,TRIM1#

main71410-05410-B0iAT220,CT220,ST220..LHD199901-200007

***,LINEA LUNA,MEDIUM GRAY,TRIM1#

main71410-05430-B0iST220..RHD200007-200203

***,SEAT = TYPE B-*104,DARK GRAY,TRIM1#

sub71410-05431

main71410-05430-G0iST220..RHD200007-200203

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

sub71410-05431

main71410-05431-B2iST220..RHD200203

***,SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71410-05431-G1iST220..RHD200203

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

main71410-05470-B0iST220..LHD200007-200203

***,SEAT = TYPE B-*104,DARK GRAY,TRIM1#

sub71410-05471

main71410-05470-G0iST220..LHD200007-200203

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

sub71410-05471

main71410-05471-B2iST220..LHD200203

***,SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71410-05471-G1iST220..LHD200203

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

main71410-05540-B0iST220..RHD200107

***,SEAT = TYPE E-*104,DK.GRAY,TRIM1#

main71410-05550-B0iST220..LHD200107

***,SEAT = TYPE E-*104,DK.GRAY,TRIM1#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-05340-B0iAT220,CT220,ST220..LHD199710-199810

***,MEDIUM GRAY,TRIM1#

main71420-05340-G0iAT220,CT220,ST220..LHD199710-199810

***,SLATE GREEN,TRIM6#

main71420-05341-B2iAT220,CT220,ST220..LHD199810-200007

***,MEDIUM GRAY,TRIM1#

main71420-05341-G1iAT220,CT220,ST220..LHD199810-200007

***,LT.GREEN,TRIM6#

main71420-05400-B0iAT220,ST220..RHD199901-200007

***,LINEA LUNA,MEDIUM GRAY,TRIM1#

main71420-05410-B0iAT220,CT220,ST220..LHD199901-200007

***,LINEA LUNA,MEDIUM GRAY,TRIM1#

main71420-05430-B0iAT220,ST220..RHD199710-199810

***,MEDIUM GRAY,TRIM1#

main71420-05430-G0iAT220,ST220..RHD199710-199810

***,SLATE GREEN,TRIM6#

main71420-05431-B2iAT220,ST220..RHD199810-200007

***,MEDIUM GRAY,TRIM1#

main71420-05431-G1iAT220,ST220..RHD199810-200007

***,LT.GREEN,TRIM6#

main71420-05490-B0iST220..RHD200007-200203

***,SEAT = TYPE B-*104,DARK GRAY,TRIM1#

sub71420-05491

main71420-05490-G0iST220..RHD200007-200203

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

sub71420-05491

main71420-05491-B2iST220..RHD200203

***,SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71420-05491-G1iST220..RHD200203

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

main71420-05500-B0iST220..LHD200007-200203

***,SEAT = TYPE B-*104,DARK GRAY,TRIM1#

sub71420-05501

main71420-05500-G0iST220..LHD200007-200203

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

sub71420-05501

main71420-05501-B2iST220..LHD200203

***,SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71420-05501-G1iST220..LHD200203

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

main71420-05570-B0iST220..RHD200107

***,SEAT = TYPE E-*104,DK.GRAY,TRIM1#

main71420-05580-B0iST220..LHD200107

***,SEAT = TYPE E-*104,DK.GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-05320-B0iAT220,ST220..RHD199901-199912

***,LINEA LUNA,MEDIUM GRAY,TRIM1#

main71430-05321-B0iAT220,ST220..RHD199912-200007

***,LINEA LUNA,MEDIUM GRAY,TRIM1#

main71430-05330-B0iAT220,CT220,ST220..LHD199710-199810

***,MEDIUM GRAY,TRIM1#

main71430-05330-G0iAT220,CT220,ST220..LHD199710-199810

***,SLATE GREEN,TRIM6#

main71430-05331-B2iAT220,CT220,ST220..LHD199810-199912

***,MEDIUM GRAY,TRIM1#

main71430-05331-G1iAT220,CT220,ST220..LHD199810-199912

***,LT.GREEN,TRIM6#

main71430-05332-B2iAT220,CT220,ST220..LHD199912-200007

***,MEDIUM GRAY,TRIM1#

main71430-05332-G1iAT220,CT220,ST220..LHD199912-200007

***,SLATE GREEN,TRIM6#

main71430-05340-B0iAT220,ST220..RHD199710-199810

***,MEDIUM GRAY,TRIM1#

main71430-05340-G0iAT220,ST220..RHD199710-199810

***,SLATE GREEN,TRIM6#

main71430-05341-B2iAT220,ST220..RHD199810-199912

***,MEDIUM GRAY,TRIM1#

main71430-05341-G1iAT220,ST220..RHD199810-199912

***,LT.GREEN,TRIM6#

main71430-05342-B2iAT220,ST220..RHD199912-200007

***,MEDIUM GRAY,TRIM1#

main71430-05342-G1iAT220,ST220..RHD199912-200007

***,SLATE GREEN,TRIM6#

main71430-05390-B0iAT220,CT220,ST220..LHD199901-199912

***,LINEA LUNA,MEDIUM GRAY,TRIM1#

main71430-05391-B0iAT220,CT220,ST220..LHD199912-200007

***,LINEA LUNA,MEDIUM GRAY,TRIM1#

main71430-05560-B0iST220..RHD200007-200203

***,SEAT = TYPE B-*104,DARK GRAY,TRIM1#

sub71430-05562

main71430-05560-G0iST220..RHD200007-200203

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

sub71430-05562

main71430-05562-B2iST220..RHD200203-200301

***,SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71430-05562-G1iST220..RHD200203-200301

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

main71430-05570-B0iST220..LHD200007-200203

***,SEAT = TYPE B-*104,DARK GRAY,TRIM1#

sub71430-05572

main71430-05570-G0iST220..LHD200007-200203

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

sub71430-05572

main71430-05572-B2iST220..LHD200203-200301

***,SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71430-05572-G1iST220..LHD200203-200301

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

main71430-05700-B0iST220..RHD200107-200203

***,SEAT = TYPE E-*104,DK.GRAY,TRIM1#

sub71430-05701

main71430-05701-B0iST220..RHD200203-200301

***,SEAT = TYPE E-*104,DK.GRAY,TRIM1#

main71430-05710-B0iST220..LHD200107-200203

***,SEAT = TYPE E-*104,DK.GRAY,TRIM1#

sub71430-05711

main71430-05711-B0iST220..LHD200203-200301

***,SEAT = TYPE E-*104,DK.GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-05160-B0iAT220,ST220..RHD199710-199810

***,MEDIUM GRAY,TRIM1#

main71440-05160-G0iAT220,ST220..RHD199710-199810

***,SLATE GREEN,TRIM6#

main71440-05161-B2iAT220,ST220..RHD199810-199912

***,MEDIUM GRAY,TRIM1#

main71440-05161-G1iAT220,ST220..RHD199810-199912

***,LT.GREEN,TRIM6#

main71440-05162-B2iAT220,ST220..RHD199912-200007

***,MEDIUM GRAY,TRIM1#

main71440-05162-G1iAT220,ST220..RHD199912-200007

***,SLATE GREEN,TRIM6#

main71440-05170-B0iAT220,CT220,ST220..LHD199710-199810

***,MEDIUM GRAY,TRIM1#

main71440-05170-G0iAT220,CT220,ST220..LHD199710-199810

***,SLATE GREEN,TRIM6#

main71440-05171-B2iAT220,CT220,ST220..LHD199810-199912

***,MEDIUM GRAY,TRIM1#

main71440-05171-G1iAT220,CT220,ST220..LHD199810-199912

***,LT.GREEN,TRIM6#

main71440-05172-B2iAT220,CT220,ST220..LHD199912-200007

***,MEDIUM GRAY,TRIM1#

main71440-05172-G1iAT220,CT220,ST220..LHD199912-200007

***,SLATE GREEN,TRIM6#

main71440-05280-B0iAT220,ST220..RHD199901-199912

***,LINEA LUNA,MEDIUM GRAY,TRIM1#

main71440-05281-B0iAT220,ST220..RHD199912-200007

***,LINEA LUNA,MEDIUM GRAY,TRIM1#

main71440-05290-B0iAT220,CT220,ST220..LHD199901-199912

***,LINEA LUNA,MEDIUM GRAY,TRIM1#

main71440-05291-B0iAT220,CT220,ST220..LHD199912-200007

***,LINEA LUNA,MEDIUM GRAY,TRIM1#

main71440-05420-B0iST220..RHD200007-200203

***,SEAT = TYPE B-*104,DARK GRAY,TRIM1#

sub71440-05422

main71440-05420-G0iST220..RHD200007-200203

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

sub71440-05422

main71440-05422-B2iST220..RHD200203-200301

***,SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71440-05422-G1iST220..RHD200203-200301

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

main71440-05430-B0iST220..LHD200007-200203

***,SEAT = TYPE B-*104,DARK GRAY,TRIM1#

sub71440-05432

main71440-05430-G0iST220..LHD200007-200203

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

sub71440-05432

main71440-05432-B2iST220..LHD200203-200301

***,SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71440-05432-G1iST220..LHD200203-200301

***,SEAT = TYPE B-*104,SLATE GREEN,TRIM6#

main71440-05590-B0iST220..RHD200107-200203

***,SEAT = TYPE E-*104,DK.GRAY,TRIM1#

sub71440-05591

main71440-05591-B0iST220..RHD200203-200301

***,SEAT = TYPE E-*104,DK.GRAY,TRIM1#

main71440-05600-B0iST220..LHD200107-200203

***,SEAT = TYPE E-*104,DK.GRAY,TRIM1#

sub71440-05601

main71440-05601-B0iST220..LHD200203-200301

***,SEAT = TYPE E-*104,DK.GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-05040iAT220,CT220,ST220199710

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-05040iAT220,CT220,ST220199710

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-05010iAT220,ST220..RHD199710

main71551-05050iAT220,CT220,ST220..LHD199710

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-05050iAT220,ST220..RHD199710-199901

main71552-05030iAT220,CT220,ST220..LHD199710

main71552-05040iAT220,ST220..RHD199901

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-05030iAT220,ST220..RHD199710-199906

main71630-05031iAT220,ST220..RHD199906-200203

sub71630-05032

main71630-05032iST220..RHD200203

main71630-05040iAT220,CT220,ST220..LHD199710-199912

main71630-05041iAT220,CT220,ST220..LHD199912-200203

sub71630-05042

main71630-05042iST220..LHD200203

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-05020iAT220,CT220,ST220..LHD199710-199912

main71640-05021iAT220,CT220,ST220..LHD199912-200203

sub71640-05022

main71640-05022iST220..LHD200203

main71640-05030iAT220,ST220..RHD199710-199912

main71640-05031iAT220,ST220..RHD199912-200203

sub71640-05032

main71640-05032iST220..RHD200203

71750ATRAY ASSY, FRONT SEAT UNDER

main71750-20030iAT220,CT220,ST220199710

71910AHEADREST ASSY, FRONT SEAT

main71910-05090-B1iAT220,CT220,ST220199901-200007

LINEA LUNA,MEDIUM GRAY,TRIM1#

main71910-05100-B0iAT220,CT220,ST220199710-200007

MEDIUM GRAY,TRIM1#

main71910-05100-G0iAT220,CT220,ST220199710-200007

SLATE GREEN,TRIM6#

main71910-05140-B0iST220200007

SEAT = TYPE B-*104,GRAY,TRIM1#

main71910-05140-G0iST220200007

SEAT = TYPE B-*104,GREEN,TRIM6#

main71910-05160-B0iST220200107

SEAT = TYPE E-*104,DK.GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-05010-B1iAT220,CT220,ST220199710-200007

W(LOCK),MD.GRAY,TRIM1#

sub71930-12070

main71930-05010-B3iST220200007

W(LOCK),DK.GRAY,TRIM1#

sub71930-12070

main71930-05010-G0iAT220,CT220,ST220199710

W(LOCK),SLATE GREEN,TRIM6#

sub71930-12070

main71931-05010-B1iAT220,CT220,ST220199710-200007

W/O(LOCK),MD.GRAY,TRIM1#

main71931-05010-B3iST220200007

W/O(LOCK),DK.GRAY,TRIM1#

main71931-05010-G0iAT220,CT220,ST220199710

W/O(LOCK),SLATE GREEN,TRIM6#

72791BKNOB, LUMBAR SUPPORT, LH

main72791-05020-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main72791-05020-B1iST220200007

DK.GRAY,TRIM1#

main72791-05020-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

9008014041

main90080-14041

9008046007

main90080-46007

9008046262

main90080-46262

9008052058

main90080-52058

9046707138

main90467-07138

9046707166

main90467-07166

26 parts on this diagram · 3 diagrams in section
