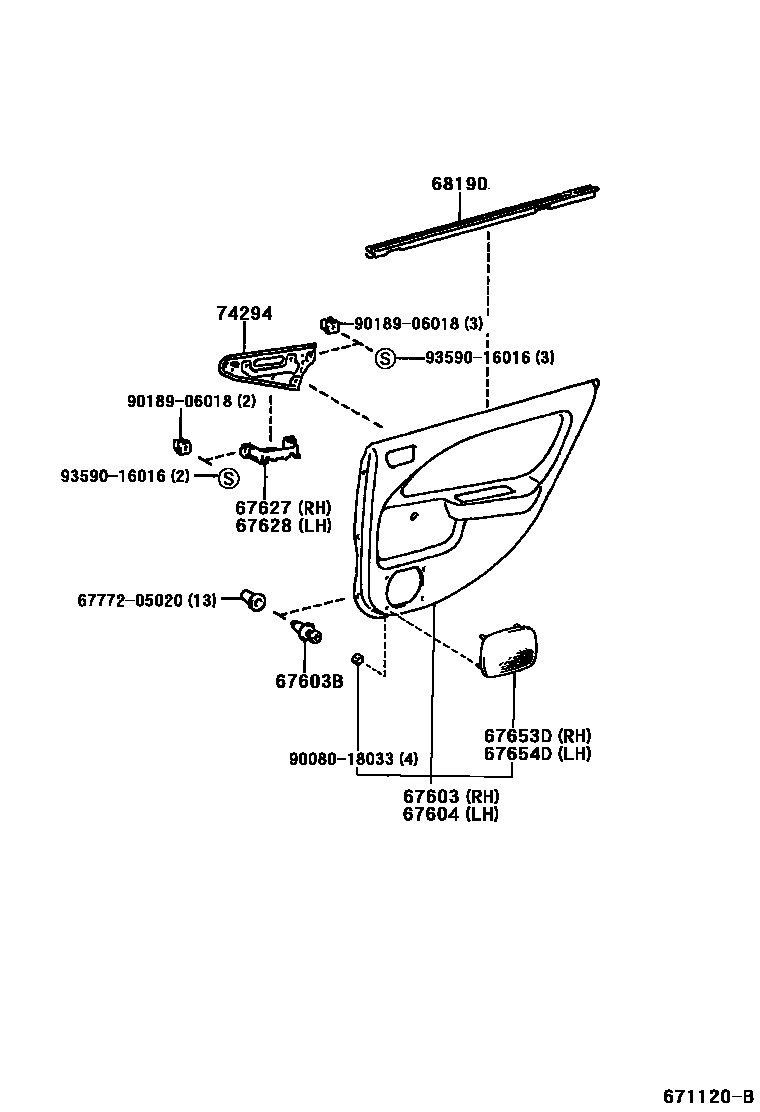

REAR DOOR PANEL & GLASS
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
LINEA LUNA & W(POWER WINDOW---FRONT ONLY) & W(SPEAKER),MEDIUM GRAY,TRIM1#
LINEA LUNA & W(POWER WINDOW---FRONT & REAR) & W(SPEAKER),MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
SLATE GREEN,TRIM6#
W(POWER WINDOW),MEDIUM GRAY,TRIM1#
W(POWER WINDOW),SLATE GREEN,TRIM6#
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#
sub67010-05230
DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#
DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#
DOOR TRIM=TYPE B-*104,DK. GRAY,TRIM1#
SLATE GREEN,TRIM6#
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
W(POWER WINDOW),SLATE GREEN,TRIM6#
MEDIUM GRAY,TRIM1#
GREEN,TRIM6#
W(POWER WINDOW),MEDIUM GRAY,TRIM1#
W(POWER WINDOW),GREEN,TRIM6#
67603BCLIP(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
LINEA LUNA & W(POWER WINDOW---FRONT ONLY) & W(SPEAKER),MEDIUM GRAY,TRIM1#
LINEA LUNA & W(POWER WINDOW---FRONT & REAR) & W(SPEAKER),MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
SLATE GREEN,TRIM6#
W(POWER WINDOW),MEDIUM GRAY,TRIM1#
W(POWER WINDOW),SLATE GREEN,TRIM6#
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#
sub67020-05220
DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#
DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#
DOOR TRIM=TYPE B-*104,DK. GRAY,TRIM1#
SLATE GREEN,TRIM6#
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
W(POWER WINDOW),SLATE GREEN,TRIM6#
MEDIUM GRAY,TRIM1#
GREEN,TRIM6#
W(POWER WINDOW),MEDIUM GRAY,TRIM1#
W(POWER WINDOW),GREEN,TRIM6#
67627BRACKET, REAR DOOR TRIM, RH
67628BRACKET, REAR DOOR TRIM, LH
67653DGRILLE SUB-ASSY, REAR DOOR SPEAKER, RH
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
SLATE GREEN,TRIM6#
67654DGRILLE SUB-ASSY, REAR DOOR SPEAKER, LH
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
SLATE GREEN,TRIM6#
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
(J),RH
(J),LH
74294PLATE, REAR DOOR ARMREST, NO.2
RH
LH
6777205020WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-05020
9008018033
main90080-18033
9018906018
main90189-06018
9359016016
main93590-16016
13 parts on this diagram · 2 diagrams in section
