FRONT DOOR WINDOW REGULATOR & HINGE

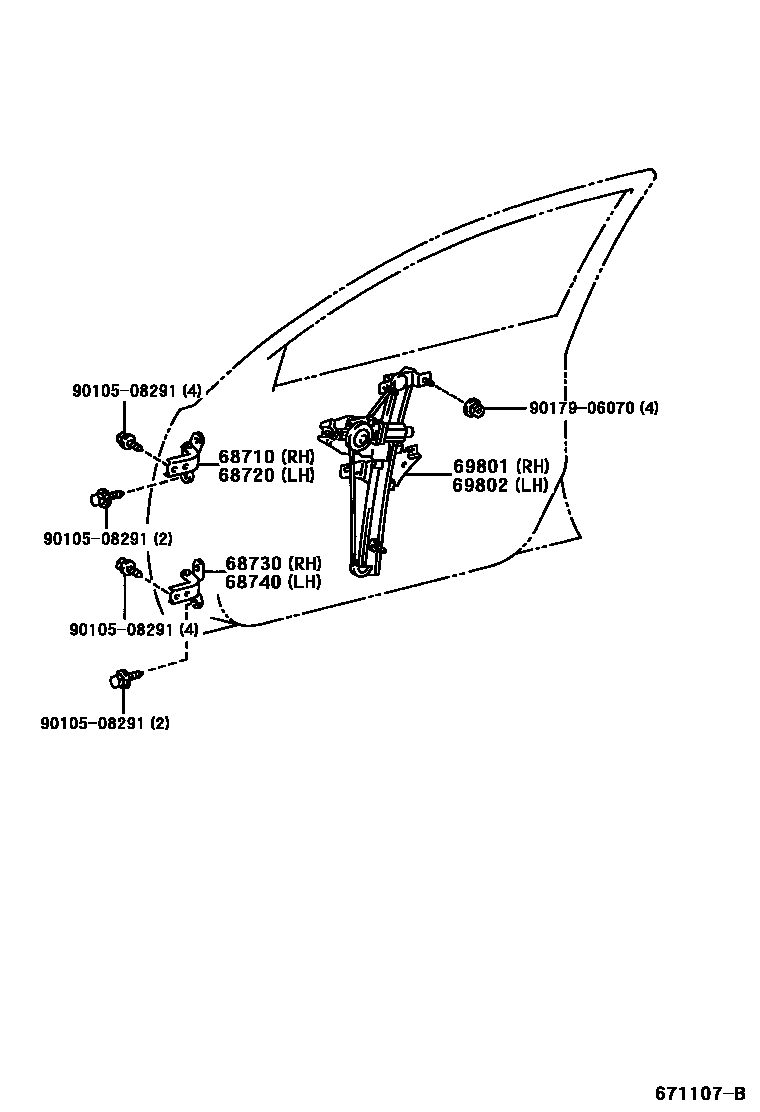

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-05010i199710-199809
sub68710-12150
main68710-12150i199809
sub68710-12151
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-05010i199710-199809
sub68720-12150
main68720-12150i199809
sub68720-12151
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-05010i199710-199809
sub68730-12110
main68730-12110i199809
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-05010i199710-199809
sub68740-12110
main68740-12110i199809
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69810-05030i199710-200205
sub69810-05031
main69810-05031i200205-200301
main69810-05040i199710-200205
sub69810-05041
main69810-05041i200205-200301
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69820-05030i199710-200205
sub69820-05031
main69820-05031i200205-200301
main69820-05040i199710-200205
sub69820-05041
main69820-05041i200205-200301
9010508291
main90105-08291
9017906070
main90179-06070

8 parts on this diagram · 1 diagram in section
