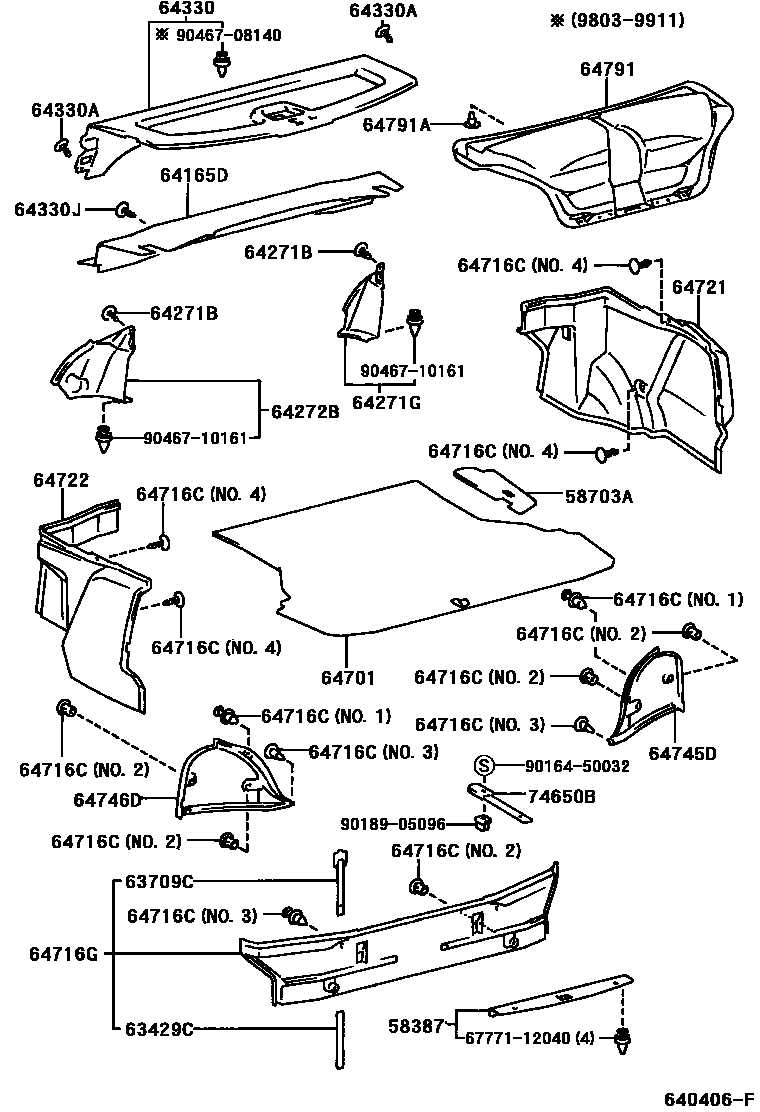

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM1#,6#
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
63429CBAND, ROOM RACK
63709CBAND SUB-ASSY, ROOM RACK
64165DCOVER, UPPER BACK PANEL HOLE, NO.1
64271BCLIP(FOR ROOM PARTITION BOARD)
MD.GRAY,TRIM1#
SLATE GREEN,TRIM6#
64271GBOARD, ROOM PARTITION, RH
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
SLATE GREEN,TRIM6#
64272BBOARD, ROOM PARTITION, LH
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
SLATE GREEN,TRIM6#
64330PANEL ASSY, PACKAGE TRAY TRIM
MEDIUM GRAY,TRIM1#
DARK GRAY,TRIM1#
SLATE GREEN,TRIM6#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#,INNER
DK.GRAY,TRIM1#
SLATE GREEN,TRIM6#,INNER
SLATE GREEN,TRIM6#
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM1#,6#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
BLACK,TRIM1#,6#,NO.2
BLACK,TRIM1#,6#,NO.3
NO.1,3,4
NO.4
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM1#,6#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#,6#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#,6#
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM1#,6#
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM1#,6#
64791COVER, BACK DOOR TRIM
BLACK,TRIM1#,6#
64791ACLIP(FOR BACK DOOR TRIM)
BLACK,TRIM1#,6#
74650BSTRAP ASSY, ASSIST
6777112040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12040
9016450032
main90164-50032
9018905096
main90189-05096
9046708140
main90467-08140
9046710161
main90467-10161
26 parts on this diagram · 1 diagram in section
