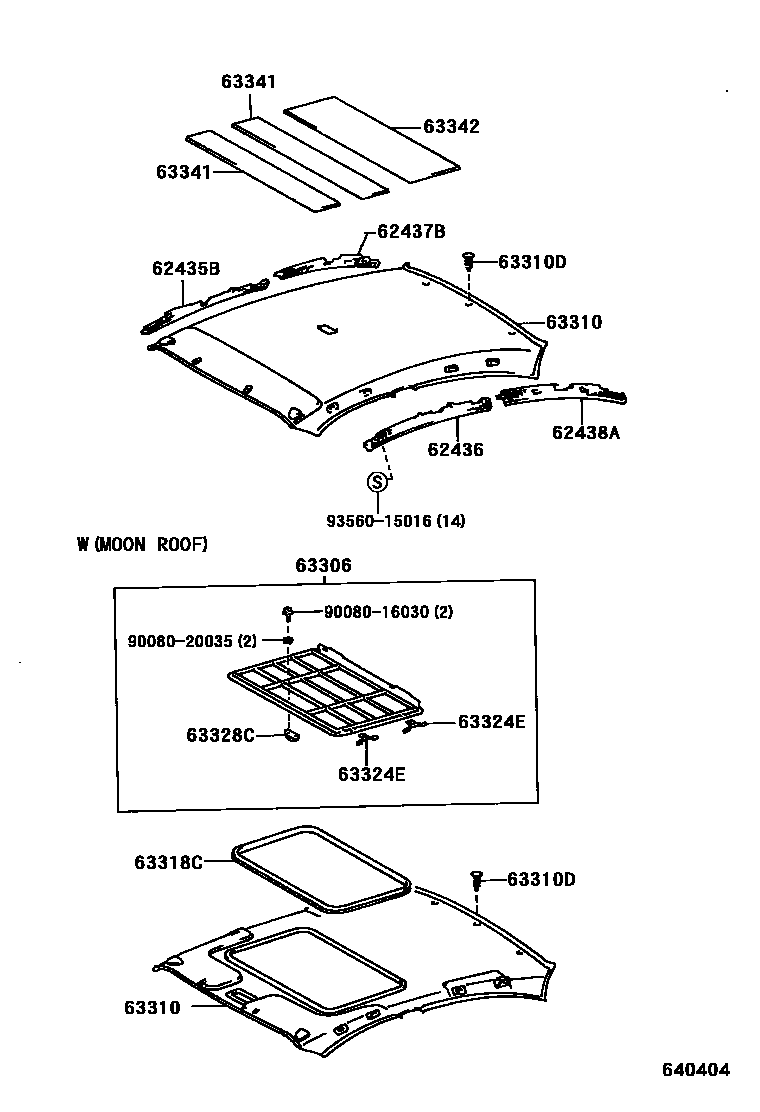

ROOF HEADLINING & SILENCER PAD
62435BPAD, ROOF SIDE RAIL, FRONT RH
62436PAD, ROOF SIDE RAIL, FRONT LH
62437BPAD, ROOF SIDE RAIL, REAR RH
62438APAD, ROOF SIDE RAIL, REAR LH
63306TRIM SUB-ASSY, SUNSHADE
LT. GRAY,TRIM1#
LT. GREEN,TRIM6#
63310HEADLINING ASSY, ROOF
LT. GRAY,TRIM1#
sub63310-05280
sub62435-05030
sub62436-05030
sub62437-05050
sub62438-05050
sub63399-05020
sub74610-05050
sub74610-05060
LT. GREEN,TRIM6#
sub63310-05280
sub62435-05030
sub62436-05030
sub62437-05050
sub62438-05050
sub63399-05020
sub74610-05050
sub74610-05060
W(MOON ROOF),LT. GRAY,TRIM1#
sub63310-05290
sub62435-05030
sub62436-05030
sub62437-05050
sub62438-05050
sub63399-05020
sub74610-05050
sub74610-05060
W(MOON ROOF),LT. GREEN,TRIM6#
sub63310-05290
sub62435-05030
sub62436-05030
sub62437-05050
sub62438-05050
sub63399-05020
sub74610-05050
sub74610-05060
LT. GRAY,TRIM1#
LT. GREEN,TRIM6#
W(MOON ROOF),LT. GRAY,TRIM1#
W(MOON ROOF),LT. GREEN,TRIM6#
LT. GRAY,TRIM1#
LT. GREEN,TRIM6#
W(MOON ROOF),LT. GRAY,TRIM1#
W(MOON ROOF),LT. GREEN,TRIM6#
63310DCLIP, ROOF HEADLINING
LT.GRAY,TRIM13
LT.GRAY,TRIM1#
LT.GREEN,TRIM61
LT.GREEN,TRIM6#
63318CMOULDING, SUN ROOF OPENING TRIM
L=2270,LT. GRAY,TRIM1#
L=2270,LT. GREEN,TRIM6#
63324ESPRING, SUNSHADE LOCK
63328CKNOB, SUNSHADE TRIM
LT.GRAY,TRIM1#
LT.GREEN,TRIM6#
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
9008016030
main90080-16030
9008020035
main90080-20035
9356015016
main93560-15016
15 parts on this diagram · 1 diagram in section
