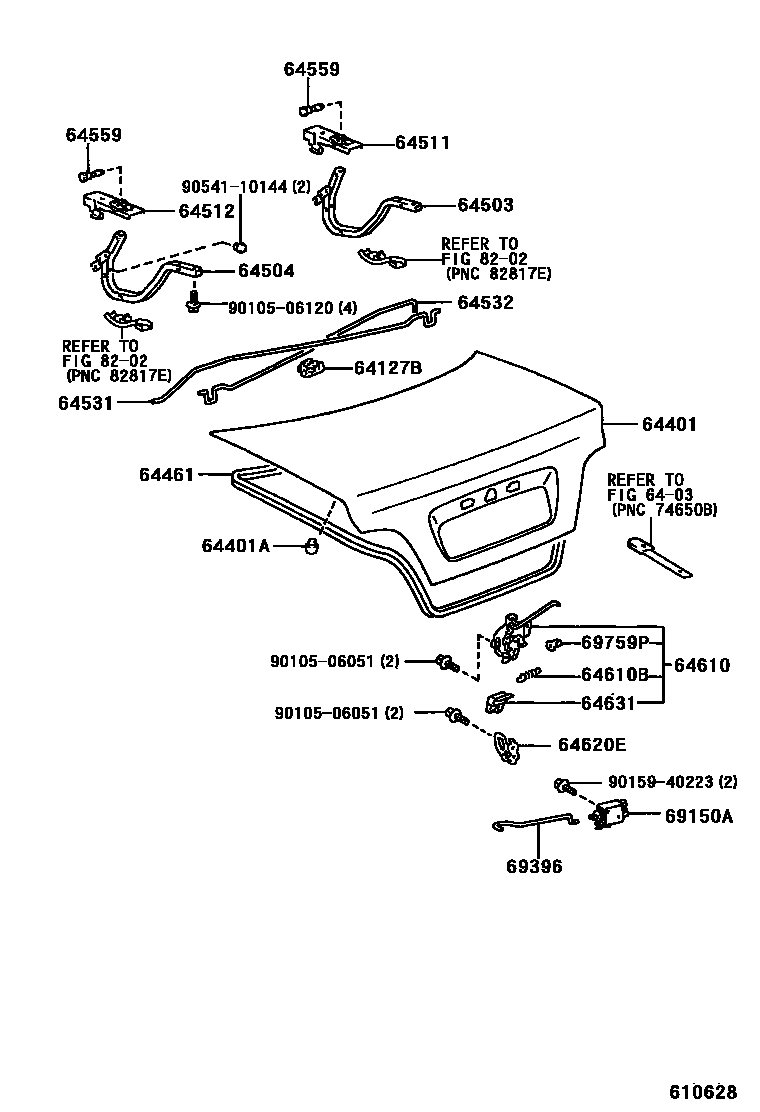

LUGGAGE COMPARTMENT DOOR & LOCK

6403

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-20120iAT220,CT220,ST220199710

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-05060iAT220,CT220,ST220199710

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main85643-20010iAT220,CT220,ST220199710

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-05020iAT220,CT220,ST220199710

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-05010iAT220,CT220,ST220199710

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-05010iAT220,CT220,ST220199710

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-05010iAT220,CT220,ST220199710

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64511-05010iAT220,CT220,ST220199710

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-05030iAT220,CT220,ST220199710

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-05030iAT220,CT220,ST220199710

64559PIN, LUGGAGE DOOR HINGE

main64559-32020iAT220,CT220,ST220199710

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20320iAT220,CT220,ST220199710

64610BSPRING, TENSION(FOR LOCK)

main90905-06021iAT220,CT220,ST220199710

WD=0.55,CW=17.5

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64621-16020iAT220,CT220,ST220199804

main64621-20120iAT220,CT220,ST220199710-199804

sub64621-16020

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12050iST220200007

main64631-16020iAT220,CT220,ST220199710-200007

69150AACTUATOR ASSY, BACK DOOR LOCK

main69150-05010iAT220,CT220,ST220199710

69396ROD, LUGGAGE COMPARTMENT DOOR LOCK OPENING, NO.2

main69396-05010iAT220,CT220,ST220199710

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-20110iAT220,CT220,ST220199710

8202

9010506051

main90105-06051

9010506120

main90105-06120

9015940223

main90159-40223

9054110144

main90541-10144

24 parts on this diagram · 1 diagram in section
