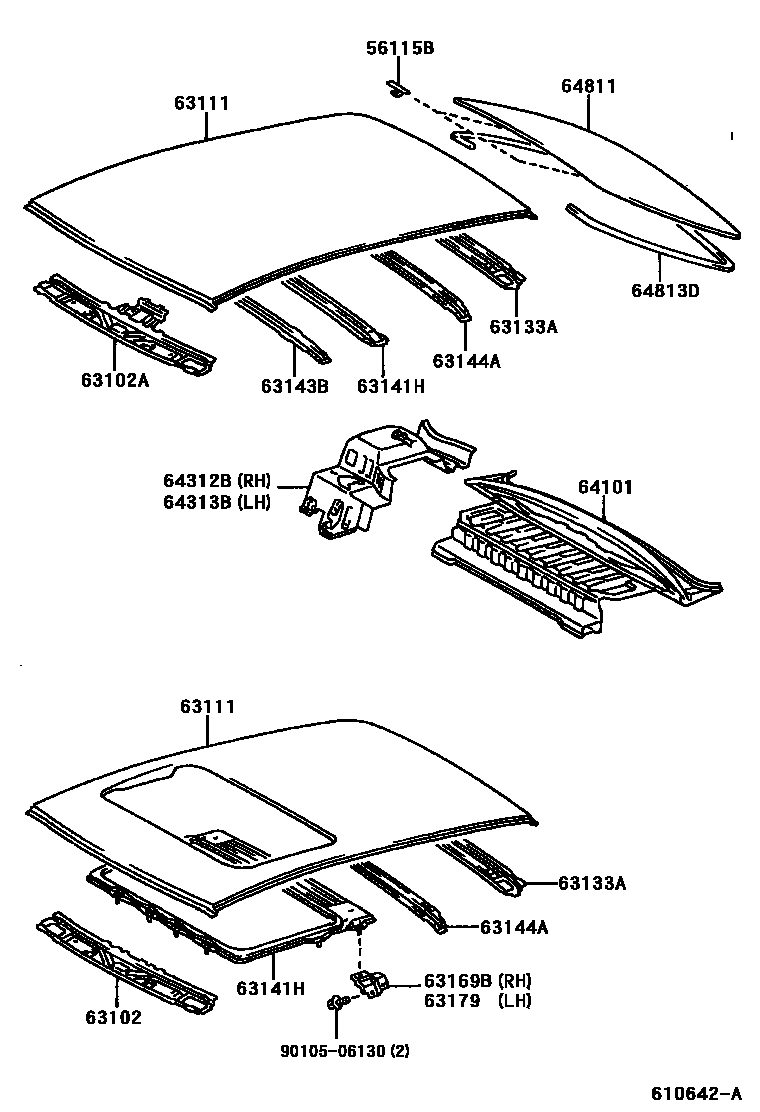

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1MOON ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-20090iAT220,CT220,ST220199807

main56115-33020iAT220,CT220,ST220199710-199804

main56116-20120iAT220,CT220,ST220199804-199807

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-05050iAT220,CT220,ST220199710

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-05040iAT220,CT220,ST220199710

63111PANEL, ROOF

main63111-05170iAT220,CT220,ST220199710

main63111-05180iAT220,CT220,ST220199710

W(MOON ROOF)

63133AFRAME, BACK WINDOW, UPPER

main63133-05020iAT220,CT220,ST220199710

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63103-05020iAT220,CT220,ST220199710

W(MOON ROOF)

main63141-05030iAT220,CT220,ST220199710

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-05040iAT220,CT220,ST220199710

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-05020iAT220,CT220,ST220199710

main63144-05030iAT220,CT220,ST220199710

W(MOON ROOF)

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-05010iAT220,CT220,ST220199710-199905

main63169-05011iAT220,CT220,ST220199905

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-05010iAT220,CT220,ST220199710-199905

main63179-05011iAT220,CT220,ST220199905

64101PANEL SUB-ASSY, UPPER BACK

main64101-05070iAT220,CT220,ST220199710

64312BBRACKET, PACKAGE TRAY, RH

main64301-05010iAT220,CT220,ST220199710

64313BBRACKET, PACKAGE TRAY, LH

main64302-05010iAT220,CT220,ST220199710

64811GLASS, BACK WINDOW

main64811-05021iAT220,CT220,ST220199710

*TT,T=3.1,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-05040iAT220,CT220,ST220199710

9010506130

main90105-06130

16 parts on this diagram · 2 diagrams in section
