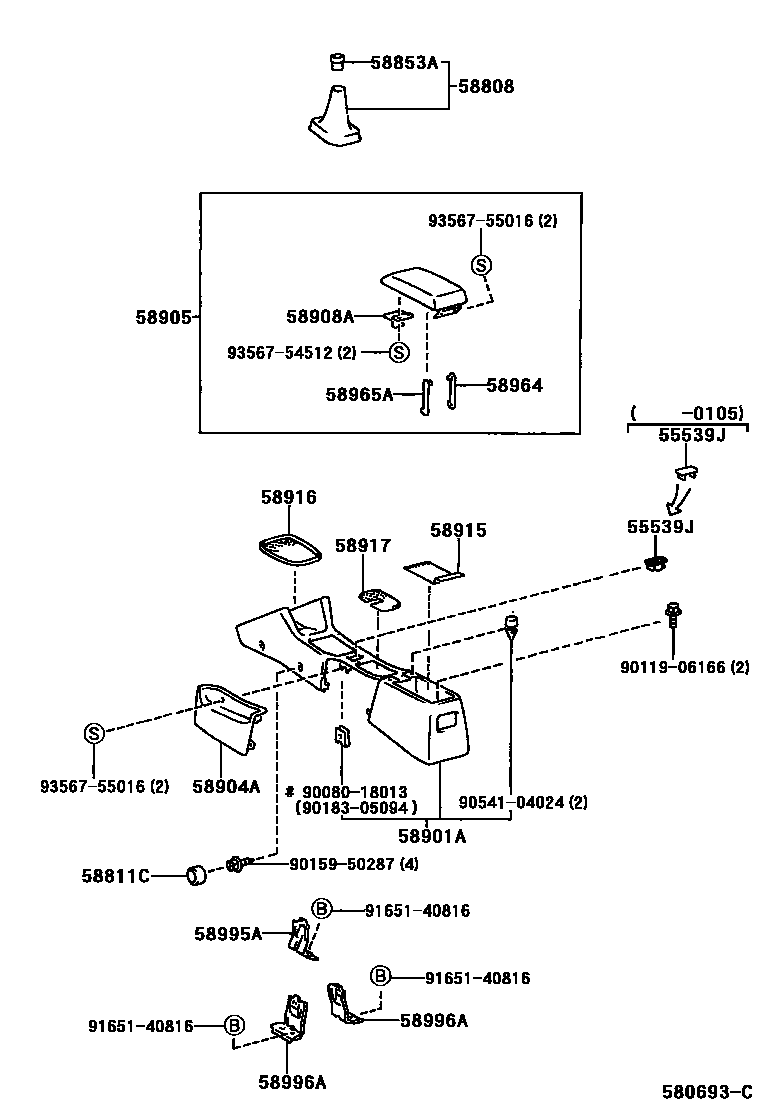

CONSOLE BOX & BRACKET

55539JCOVER, SPARE SWITCH HOLE

main55539-02010-B3iST220200105

DK.GRAY,TRIM1#

main55539-02010-G0iST220200105

SLATE GREEN,TRIM6#

main55539-05030-B0iAT220,CT220,ST220199710-200007

MD. GRAY,TRIM1#

main55539-05030-B1iST220200007-200105

DK.GRAY,TRIM1#

main55539-05030-G0iAT220,CT220,ST220199710-200105

GREEN,TRIM6#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-05030-C0iAT220,CT220,ST220..LHD..MTM199710-200007

BLACK,TRIM1#,6#

main58808-05040-C0iAT220,ST220..RHD..MTM199710-200007

BLACK,TRIM1#,6#

main58808-05050-C0iST220..LHD..MTM200007

BLACK,TRIM1#,6#

main58808-05060-C0iST220..RHD..MTM200007

BLACK,TRIM1#,6#

58811CCAP(FOR CONSOLE)

main90339-10014-B1×4iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main90339-10014-B3×4iST220200007

DK.GRAY,TRIM1#

main90339-10014-G3×4iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

58853APACKING, SHIFT LEVER HOLE

main58853-05010iAT220,CT220,ST220..MTM199710-200007

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-05050-B0iAT220,CT220,ST220..LHD199710-200007

MD.GRAY,TRIM1#

main58901-05050-B1iST220..LHD200007

DK.GRAY,TRIM1#

main58901-05050-G0iAT220,CT220,ST220..LHD199710

SLATE GREEN,TRIM6#

main58901-05060-B0iAT220,ST220..RHD199710-200007

MD.GRAY,TRIM1#

main58901-05060-B1iST220..RHD200007

DK.GRAY,TRIM1#

main58901-05060-G0iAT220,ST220..RHD199710

SLATE GREEN,TRIM6#

58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58904-05030-B0iAT220,CT220,ST220..LHD199710-200007

MD.GRAY,TRIM1#

main58904-05030-B1iST220..LHD200007

DK.GRAY,TRIM1#

main58904-05030-G0iAT220,CT220,ST220..LHD199710

SLATE GREEN,TRIM6#

main58904-05040-B0iAT220,ST220..RHD199710-200007

MD.GRAY,TRIM1#

main58904-05040-B1iST220..RHD200007

DK.GRAY,TRIM1#

main58904-05040-G0iAT220,ST220..RHD199710

SLATE GREEN,TRIM6#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-05020-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main58905-05020-B1iST220200007

DK.GRAY,TRIM1#

main58905-05020-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32050iAT220,CT220,ST220199710

58915PANEL, BOX BOTTOM

main58915-05010iST220200007

58916MAT, BOX BOTTOM

main58916-05010iST220..LHD200007

main58916-05020iST220..RHD200007

58917MAT, BOX BOTTOM, NO.2

main58917-05010iST220200007

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-05020iAT220,CT220,ST220199710

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-05040iAT220,CT220,ST220199710

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-05010iAT220,CT220,ST220..LHD199710

main58995-05020iAT220,ST220..RHD199710

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-05010×2iAT220,CT220,ST220199710

9008018013

main90080-18013

9011906166

main90119-06166

9015950287

main90159-50287

9018305094

main90183-05094

9054104024

main90541-04024

9165140816

main91651-40816

9356754512

main93567-54512

9356755016

main93567-55016

23 parts on this diagram · 1 diagram in section
