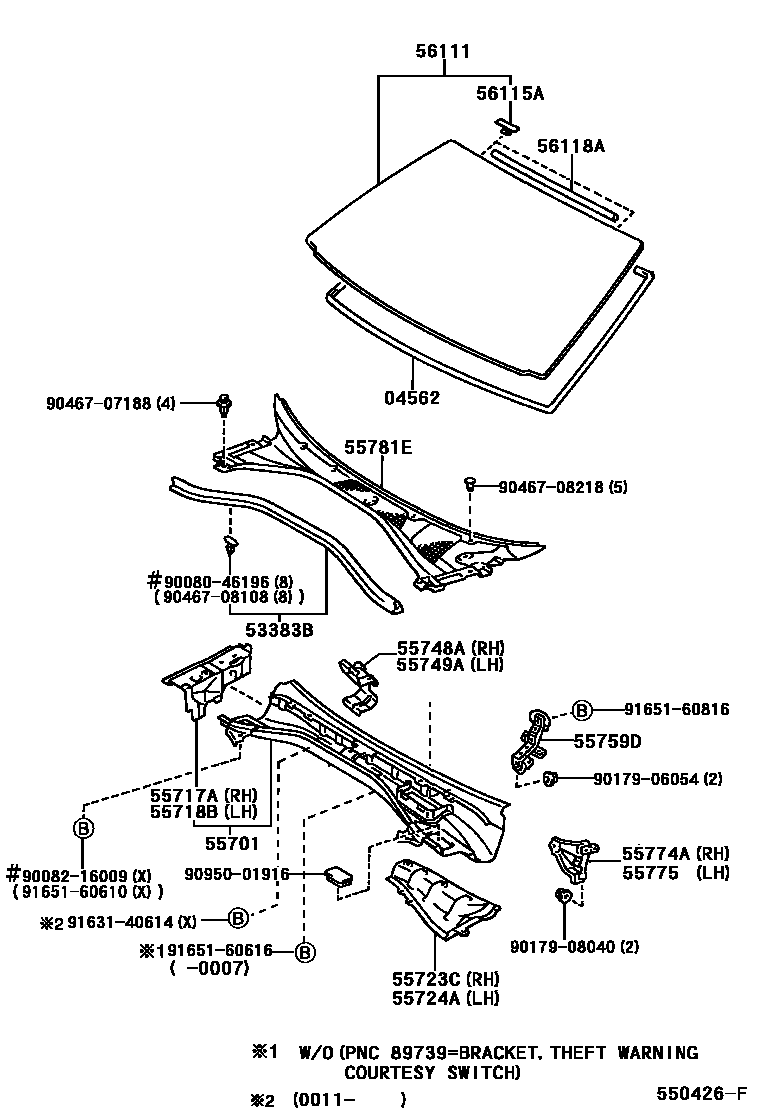

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main56117-05020iAT220,CT220,ST220¥1,350199710

sub56117-47010¥1,630

53383BSEAL, HOOD TO COWL TOP

main53383-05020iAT220,CT220,ST220¥1,650199710-199807

sub53383-05021

main53383-05021iAT220,CT220,ST220199807

55701PANEL SUB-ASSY, COWL

main55700-05130iAT220,ST220..RHD199807

main55700-05140iCT220199807-200007

sub55700-05210

sub90333-20001¥70

main55700-05150iAT220,ST220..LHD..ATM199807-200007

main55700-05160iAT220,ST220..LHD..MTM199807-200007

main55700-05200iST220..LHD..ATM200007

main55700-05210iST220..LHD..MTM200007

main55700-05901iAT220,ST220..RHD199710-199807

sub55700-05130

main55700-05902iCT220199710-199807

sub55700-05140

main55700-05903iAT220,ST220..LHD..ATM199710-199807

sub55700-05150

main55700-05904iAT220,ST220..LHD..MTM199710-199807

sub55700-05160

55717APANEL, COWL TOP SIDE, INNER RH

main55717-05010iAT220,CT220,ST220¥3,320199710

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-05010iAT220,CT220,ST220¥3,320199710

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-05010iAT220,CT220,ST220..LHD¥3,520199710

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-05010iAT220,ST220..RHD¥3,520199710

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-05010iAT220,CT220,ST220¥1,350199710

55749ABRACE, COWL TOP INNER TO PILLAR, LH

main55749-05010iAT220,CT220,ST220¥1,350199710

55759DBRACKET, COWL TOP INNER STAY MOUNTING

main55707-05010iST220200007

main55759-05010iAT220,CT220,ST220¥1,900199710-200007

55774ABRACKET, COWL TOP INNER TO PILLAR BRACE, RH

main55774-05010iAT220,CT220,ST220..LHD¥3,110199710-199806

sub55774-05011

main55774-05011iAT220,CT220,ST220..LHD199806

55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH

main55775-05010iAT220,ST220..RHD¥3,110199710-199806

sub55775-05011

main55775-05011iAT220,ST220..RHD199806

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-05050iAT220,ST220..RHD199710-199905

sub55708-05051

main55708-05051iAT220,ST220..RHD199905

main55708-05061iST220..LHD200007

COLD SPEC

main55708-05070iAT220,CT220,ST220..LHD199710-199905

sub55708-05071

main55708-05071iAT220,CT220,ST220..LHD199905

sub55708-05061

56111GLASS, WINDSHIELD

main56101-05030iAT220,CT220,ST220¥101,000199710

*LAM,T=4.96,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20090iAT220,CT220,ST220¥200199807

main56115-33020iAT220,CT220,ST220¥360199710-199807

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-05020iAT220,CT220,ST220¥680199710

sub56117-52040¥670

9008046196

main90080-46196

9008216009

main90082-16009

9017906054

main90179-06054¥100

9017908040

main90179-08040¥100

9046707188

main90467-07188¥130

9046708108

main90467-08108¥70

9046708218

main90467-08218¥130

9095001916

main90950-01916¥350

9163140614

main91631-40614¥80

9165160610

main91651-60610¥100

9165160616

main91651-60616¥100

9165160816

main91651-60816¥100

28 parts on this diagram · 1 diagram in section
