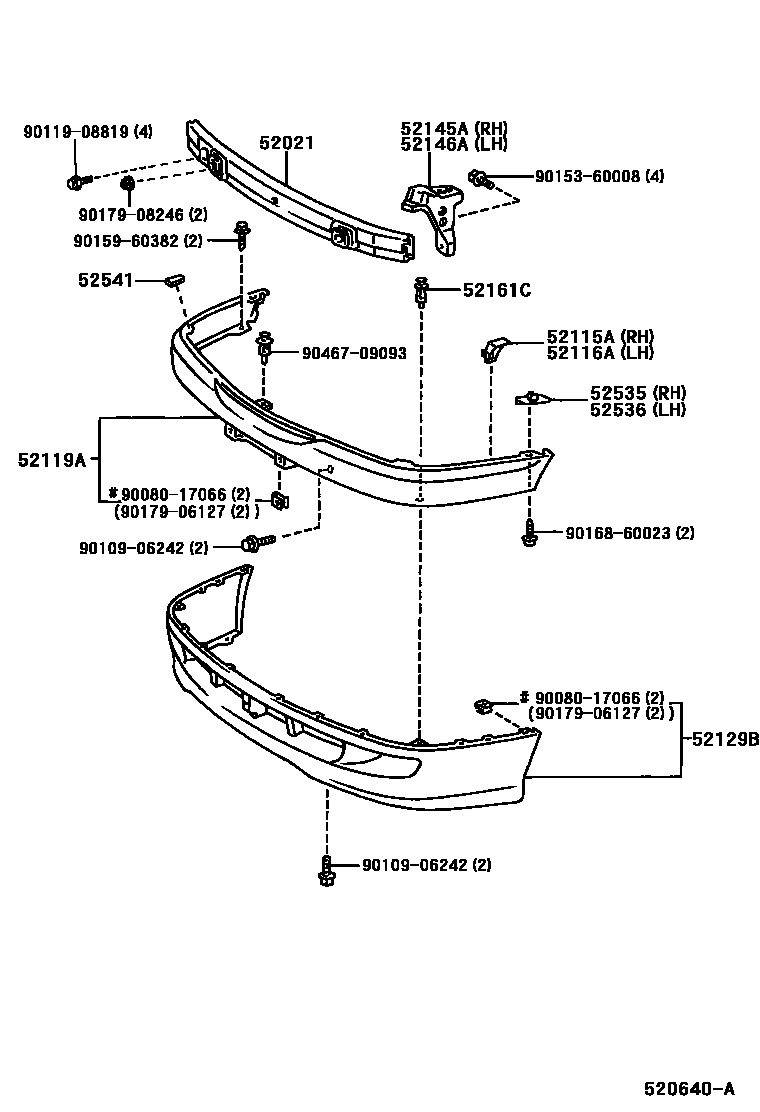

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-05010iAT220,CT220,ST220199710-200007

main52021-05030iST220200007-200205

main52021-05030iST220200205

(L)

main52021-20290iST220200205

(J)

sub52021-05030

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-05020iAT220,CT220,ST220199710

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-05020iAT220,CT220,ST220199710

52119ACOVER, FRONT BUMPER

main52119-05080iAT220,CT220,ST220199710-200007

main52119-05903iST220200007

52129BCOVER, FRONT BUMPER, LOWER

main52129-05900iAT220,CT220,ST220199710-200007

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-20200iAT220,CT220,ST220199710-200007

main52145-20240iST220200007

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-20190iAT220,CT220,ST220199710-200007

main52146-20230iST220200007

52161CPIECE, FRONT BUMPER

main52161-20010iAT220,CT220,ST220199710-200007

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-05010iAT220,CT220,ST220199710

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-05010iAT220,CT220,ST220199710

52541PROTECTOR, FRONT BUMPER

main52541-05010iAT220,CT220,ST220199710-199801

9008017066

main90080-17066

9010906242

main90109-06242

9011908819

main90119-08819

9015360008

main90153-60008

9015960382

main90159-60382

9016860023

main90168-60023

9017906127

main90179-06127

9017908246

main90179-08246

9046709093

main90467-09093

20 parts on this diagram · 2 diagrams in section
