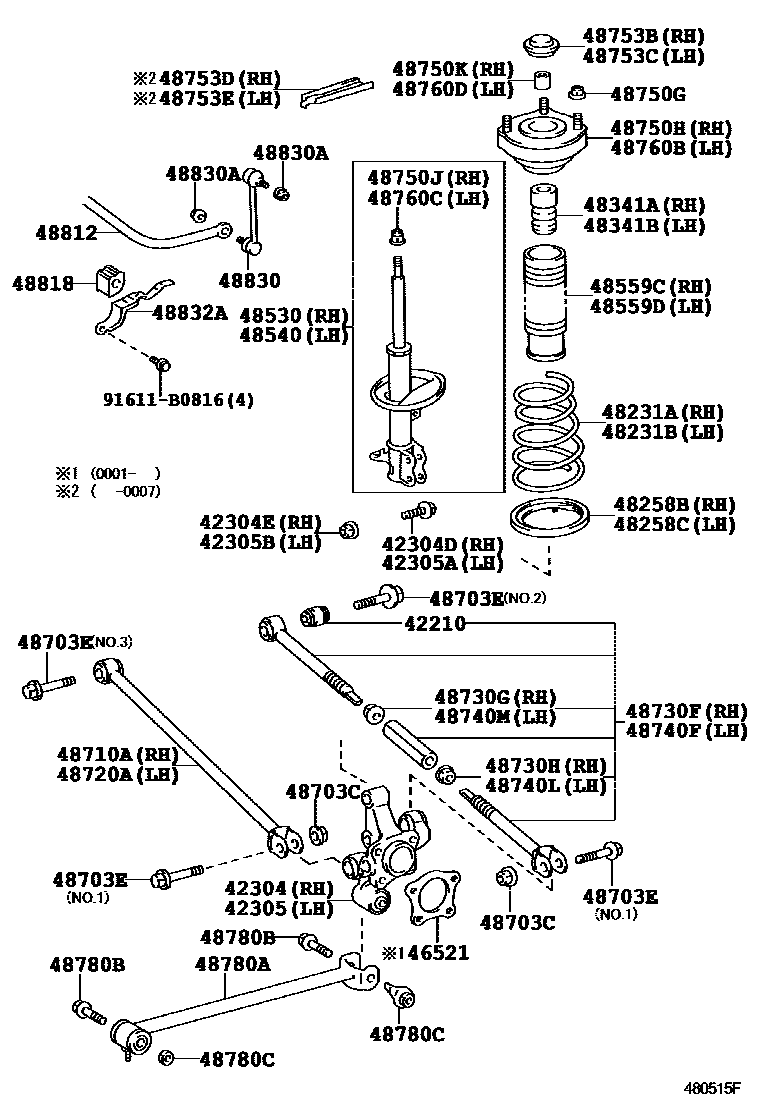

REAR SPRING & SHOCK ABSORBER

42210BUSH ASSY, LOWER BALL

main42210-20010iAT220,CT220,ST220¥2,610199710

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-05050iAT220,CT220,ST220199710-200001

sub42304-05120

sub46521-20050¥850

main42304-05060iCT220,ST220..LHD199710-200001

W(ABS)

sub42304-05110

sub46521-20050¥850

main42304-05110iCT220,ST220..LHD200001-200107

W(ABS)

main42304-05111iST220..LHD200107

W(ABS)

main42304-05120iAT220,CT220,ST220200001-200107

main42304-05121iST220200107

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-15001iAT220,CT220,ST220¥410199710

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-15001iAT220,CT220,ST220¥350199710

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-05050iAT220,CT220,ST220199710-200001

sub42305-05120

sub46521-20050¥850

main42305-05060iCT220,ST220..LHD199710-200001

W(ABS)

sub42305-05110

sub46521-20050¥850

main42305-05110iCT220,ST220..LHD200001-200107

W(ABS)

main42305-05111iST220..LHD200107

W(ABS)

main42305-05120iAT220,CT220,ST220200001-200107

main42305-05121iST220200107

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-15001iAT220,CT220,ST220¥410199710

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-15001iAT220,CT220,ST220¥350199710

46521PLATE, PARKING BRAKE BACKING

main46521-20050iAT220,CT220,ST220¥850200001-200107

main46521-20060iST220¥580200107

48231ASPRING, COIL, REAR RH

main48231-05210iST220199710-200007

main48231-05220iAT220,CT220,ST220199710-200007

ROUGH ROAD PACKAGE

main48231-05250iST220200007

main48231-05260iST220200007

ROUGH ROAD PACKAGE

48231BSPRING, COIL, REAR LH

main48231-05210iST220199710-200007

main48231-05220iAT220,CT220,ST220199710-200007

ROUGH ROAD PACKAGE

main48231-05250iST220200007

main48231-05260iST220200007

ROUGH ROAD PACKAGE

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-05010iAT220,CT220,ST220199710

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-05010iAT220,CT220,ST220199710

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-05010iAT220,CT220,ST220199710

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-05010iAT220,CT220,ST220199710

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09190iAT220¥27,600199710-199812

sub48530-09191¥27,600

main48530-09191iAT220¥27,600199812-200007

sub48530-09260

main48530-09200iAT220,CT220,ST220¥28,600199710-199812

ROUGH ROAD PACKAGE

sub48530-09201¥28,600

main48530-09201iAT220,CT220,ST220¥28,600199812-199907

ROUGH ROAD PACKAGE

sub48530-09203

main48530-09202iAT220,CT220,ST220199907-200107

MARK 48530-05112,ROUGH ROAD PACKAGE

sub48530-09203

main48530-09203iST220200107

MARK 48530-05113,ROUGH ROAD PACKAGE

main48530-09210iCT220,ST220¥27,600199710-199812

sub48530-09211¥27,600

main48530-09211iCT220,ST220¥27,600199812-200007

sub48530-09260

main48530-09330iST220200007-200101

MARK 48530-05171

sub48530-09490

main48530-09490iST220200101-200107

MARK 48530-05172

sub48530-09491¥29,300

main48530-09491iST220¥29,300200107

MARK 48530-05173

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-09170iAT220¥27,600199710-199812

sub48540-09171¥27,600

main48540-09171iAT220¥27,600199812-200007

sub48540-09230

main48540-09180iAT220,CT220,ST220¥28,600199710-199812

ROUGH ROAD PACKAGE

sub48540-09181¥28,600

main48540-09181iAT220,CT220,ST220¥28,600199812-199907

ROUGH ROAD PACKAGE

sub48540-09183

main48540-09182iAT220,CT220,ST220199907-200107

MARK 48540-05112,ROUGH ROAD PACKAGE

sub48540-09183

main48540-09183iST220200107

MARK 48540-05113,ROUGH ROAD PACKAGE

main48540-09190iCT220,ST220¥27,600199710-199812

sub48540-09191¥27,600

main48540-09191iCT220,ST220¥27,600199812-200007

sub48540-09230

main48540-09290iST220200007-200101

MARK 48540-05171

sub48540-09350

main48540-09350iST220200101-200107

MARK 48540-05172

sub48540-09351¥29,300

main48540-09351iST220¥29,300200107

MARK 48540-05173

48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1

main48754-05010iAT220,CT220,ST220199710

48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1

main48754-05010iAT220,CT220,ST220199710

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-14045iAT220,CT220,ST220¥120199710-199908

BODY SIDE

main90179-14045iAT220,CT220,ST220¥120199908

main90179-14070iAT220,CT220,ST220¥210199710-199908

CARRIER SIDE

48703EBOLT(FOR REAR SUSPENSION ARM)

main90119-14079iAT220,CT220,ST220¥340199710

*14-1.50PX75-30,NO.1

main90119-14091iAT220,CT220,ST220¥510199710

*14-1.50PX75-30,NO.2

main90901-19045iAT220,CT220,ST220¥700199710

*14-1.50PX76-36,NO.3

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-05050iAT220,CT220,ST220199710-200007

main48710-05060iST220200007

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-05050iAT220,CT220,ST220199710-200007

main48710-05060iST220200007

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-05030iAT220,CT220,ST220199710-200007

main48730-05050iST220200007

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-16022iAT220,CT220,ST220¥240199710-200007

main90179-18017iST220¥230200007

48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)

main90179-16021iAT220,CT220,ST220¥230199710-200007

main90179-18016iST220¥230200007

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-05030iAT220,CT220,ST220199710-200007

main48740-05050iST220200007

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-16022iAT220,CT220,ST220¥240199710-200007

main90179-18017iST220¥230200007

48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)

main90179-16021iAT220,CT220,ST220¥230199710-200007

main90179-18016iST220¥230200007

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90178-08007iST220¥100200007

main90179-08122iAT220,CT220,ST220¥440199710-200007

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-05020iAT220,CT220,ST220¥8,100199710-200007

sub48750-05030

main48750-05030iST220200007

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-14015iAT220,CT220,ST220¥130199710

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15027iAT220,CT220,ST220¥270199710

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-20040iAT220,CT220,ST220¥660199710

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-20040iAT220,CT220,ST220¥660199710

48753DCOVER, REAR SUSPENSION SUPOPORT, NO.2 RH

main48753-20080iAT220,CT220,ST220¥850199710-200007

48753ECOVER, REAR SUSPENSION SUPOPORT, NO.2 LH

main48753-20080iAT220,CT220,ST220¥850199710-200007

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-05020iAT220,CT220,ST220¥8,100199710-200007

sub48750-05030

main48750-05030iST220200007

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-14015iAT220,CT220,ST220¥130199710

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15027iAT220,CT220,ST220¥270199710

48780AROD ASSY, STRUT, REAR

main48780-05020iAT220,CT220,ST220¥6,700199710

48780BBOLT(FOR STRUT ROD)

main90119-12131iAT220,CT220,ST220¥390199710

48780CNUT(FOR STRUT ROD)

main90179-12091iAT220,CT220,ST220¥120199710

CARRIER SIDE

main90179-12114iAT220,CT220,ST220¥260199710

BODY SIDE

48812BAR, STABILIZER, REAR

main48812-05040iAT220,CT220,ST220¥9,300199710

48818BUSH, STABILIZER, REAR

main48818-05040iAT220,CT220,ST220¥1,130199710-199811

sub48818-05041¥1,130

main48818-05041iAT220,CT220,ST220¥1,130199811

48830LINK ASSY, REAR STABILIZER

main48830-05020iAT220,CT220,ST220199710

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10222iAT220,CT220,ST220¥170199710

sub90179-10183¥100

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-20100iAT220,CT220,ST220¥750199710

91611B0816

main91611-B0816¥140

48 parts on this diagram · 1 diagram in section
