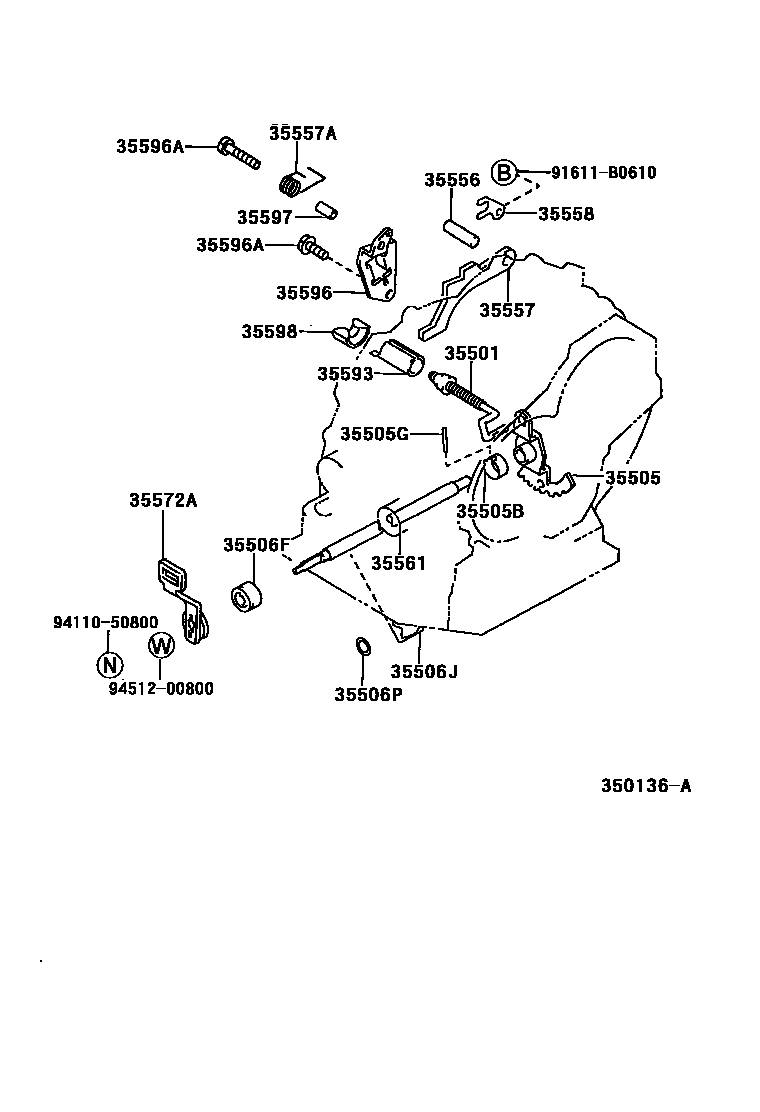

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A241E,A245E 0002 1A245E 0003 1A241E

35501ROD SUB-ASSY, PARKING LOCK

main35501-12010iAT220,ST220..ATM199710-200204

main35501-12030iST220..ATM200204

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12040iST220..ATM199710-200204

main35505-12060iST220..ATM200204

main35505-12070iAT220..ATM199710-200007

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iAT220,ST220..ATM199710

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iAT220,ST220..ATM199710

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAT220,ST220..ATM199710

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-11001iAT220,ST220..ATM199710

35506PWASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)

main90201-12028iAT220,ST220..ATM199710

35556SHAFT, PARKING LOCK PAWL

main35556-12020iAT220,ST220..ATM199710

35557PAWL, PARKING LOCK

main35557-12020iAT220,ST220..ATM199710-200204

main35557-12030iST220..ATM200204

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iAT220,ST220..ATM199710-200204

main90949-03060iST220..ATM200204

35558CLAMP, PAWL SHAFT

main35558-12010iAT220,ST220..ATM199710

35561SHAFT, MANUAL VALVE LEVER

main35561-12020iST220..ATM199710

main35561-12030iAT220..ATM199710-200007

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-20210iST220..ATM199710

main35572-20220iAT220..ATM199710-200007

35593SLEEVE, CAM GUIDE

main35593-12010iAT220,ST220..ATM199710

35596PLATE, PAWL STOPPER

main35596-12010iAT220,ST220..ATM199710

35596ABOLT (FOR PAWL STOPPER PLATE)

main90105-08068iAT220,ST220..ATM199710

*8-1.25PX35-30

sub90105-08333

main90105-08070iAT220,ST220..ATM199710

*8-1.25PX17-13.5

35597SLEEVE, SPRING GUIDE

main35597-12010iAT220,ST220..ATM199710

35598SLEEVE, PARKING LOCK

main35598-12010iAT220,ST220..ATM199710

91611B0610

main91611-B0610

9411050800

main94110-50800

9451200800

main94512-00800

21 parts on this diagram · 3 diagrams in section
