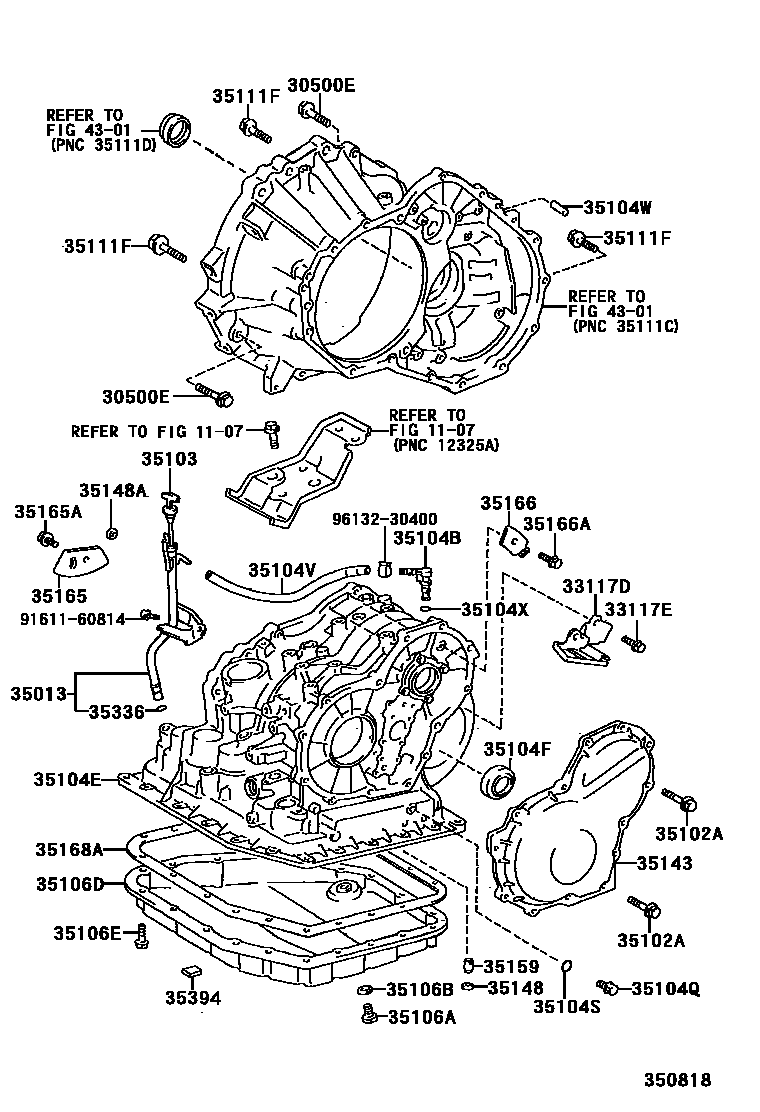

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A245E 0002 1A241E

1107

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iST220..ATM199710

*8-1.25PX18-15

sub91641-H0820

main90105-10077iAT220,ST220..ATM199710

*10-1.25PX43-26

main90119-12168iAT220..ATM199710-200007

*12-1.25PX55-30

main91619-61245×2iAT220..ATM199710-200007

*12-1.25PX45-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAT220,ST220..ATM199710

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAT220,ST220..ATM199710

sub91641-H0820

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-20680iST220..ATM199710-199907

main35013-20730iAT220..ATM199710-200007

main35013-20820iST220..ATM199907

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-20031iST220..ATM199710

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198×2iAT220..ATM199710-200007

*6-1.00PX32-32

main90105-08065×10iST220..ATM199710

*8-1.25PX45-35

main90105-08333×3iST220..ATM199710

*8-1.25PX35-30

sub91551-C0835

main91511-80625×11iAT220..ATM199710-200007

*6-1.0PX25-25

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-05030iAT220..ATM199710-200007

main35103-05040iST220..ATM199710

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03101iST220..ATM199710

main90930-03132iAT220..ATM199710-200007

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-12230iAT220..ATM199710-200007

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-34013iAT220..ATM199710-199908

main90311-34026iAT220..ATM199908-200007

main90311-35020iST220..ATM199710-199908

main90311-35047iST220..ATM199908

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAT220,ST220..ATM199710

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iAT220,ST220..ATM199710

35104VHOSE (FOR BREATHER PLUG)

main90447-11031iAT220,ST220..ATM199710

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10021×2iST220..ATM199710

NO.1

main90250-11001×2iST220..ATM199710

NO.2

35104XRING, O (FOR BREATHER PLUG)

main90301-06010iAT220..ATM199710-200007

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iST220..ATM199710

main90341-10011iAT220..ATM199710-200007

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAT220,ST220..ATM199710

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12070iST220..ATM199710

main35106-12090iAT220..ATM199710-200007

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iAT220,ST220..ATM199710

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065×10iST220..ATM199710

*8-1.25PX45-35

main90105-08066×2iST220..ATM199710

*8-1.25PX72-30

main90105-08071×14iAT220..ATM199710-200007

*8-1.25PX30-25

main90105-08288×3iAT220..ATM199710-200007

*8-1.28PX30-25

main90105-08333×5iST220..ATM199710

*8-1.25PX35-30

sub91551-C0835

35143COVER, TRANSMISSION CASE, REAR

main35143-12030iAT220..ATM199710-200007

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAT220,ST220..ATM199710

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iAT220,ST220..ATM199710

35159GASKET, BRAKE DRUM

main35159-20010iAT220,ST220..ATM199710

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010iAT220..ATM199710-200007

main35165-20010iST220..ATM199710

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iAT220,ST220..ATM199710

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12020iAT220,ST220..ATM199710

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iAT220,ST220..ATM199710

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iST220..ATM199710-200112

main35168-12030iAT220..ATM199710-200007

main35168-12080iST220..ATM200112

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAT220,ST220..ATM199710

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iAT220,ST220..ATM199710

4301

9161160814

main91611-60814

9613230400

main96132-30400

35 parts on this diagram · 2 diagrams in section
