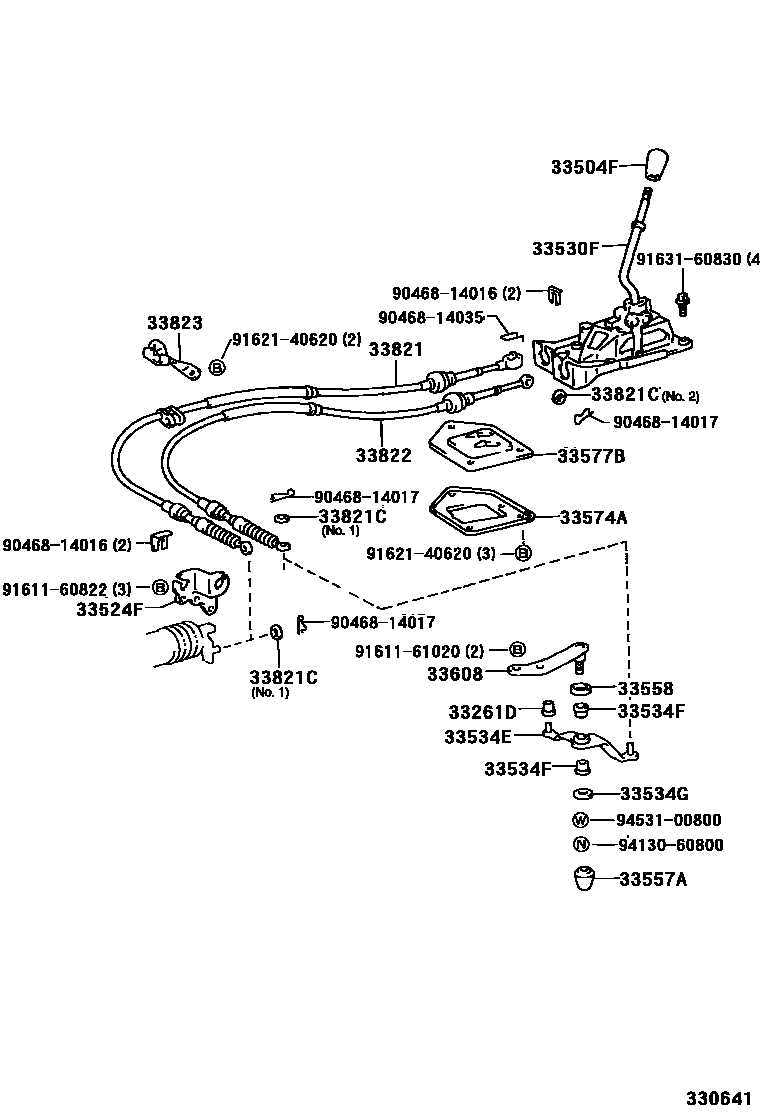

SHIFT LEVER & RETAINER
33261DBUSH (FOR SHIFT & SELECT LEVER)
33504FKNOB SUB-ASSY, SHIFT LEVER
W(*80),BLACK,TRIM1#,6#
BLACK,TRIM1#,6#
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33534ECRANK, SELECTING BELL, NO.2
33534FBUSH (FOR SELECTING BELLCRANK NO.2)
33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
33557ACOVER, SELECTING BELLCRANK DUST, NO.1
33558COVER, SELECTING BELLCRANK DUST, NO.2
33574ARETAINER, SHIFT CABLE GROMMET, NO.1
33577BCOVER, CONTROL SHAFT HOLE
33608SUPPORT SUB-ASSY, SELECTING BELLCRANK
33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
ACCO
ACCO
CHUO HATSUJO
CHUO HATSUJO
33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
OD=30,NO.1
NO.2
33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
ACCO
ACCO
CHUO HATSUJO
CHUO HATSUJO
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
9046814016
main90468-14016
9046814017
main90468-14017
9046814035
main90468-14035
9161160822
main91611-60822
9161161020
main91611-61020
9162140620
main91621-40620
9163160830
main91631-60830
9413060800
main94130-60800
9453100800
main94531-00800
25 parts on this diagram · 8 diagrams in section
