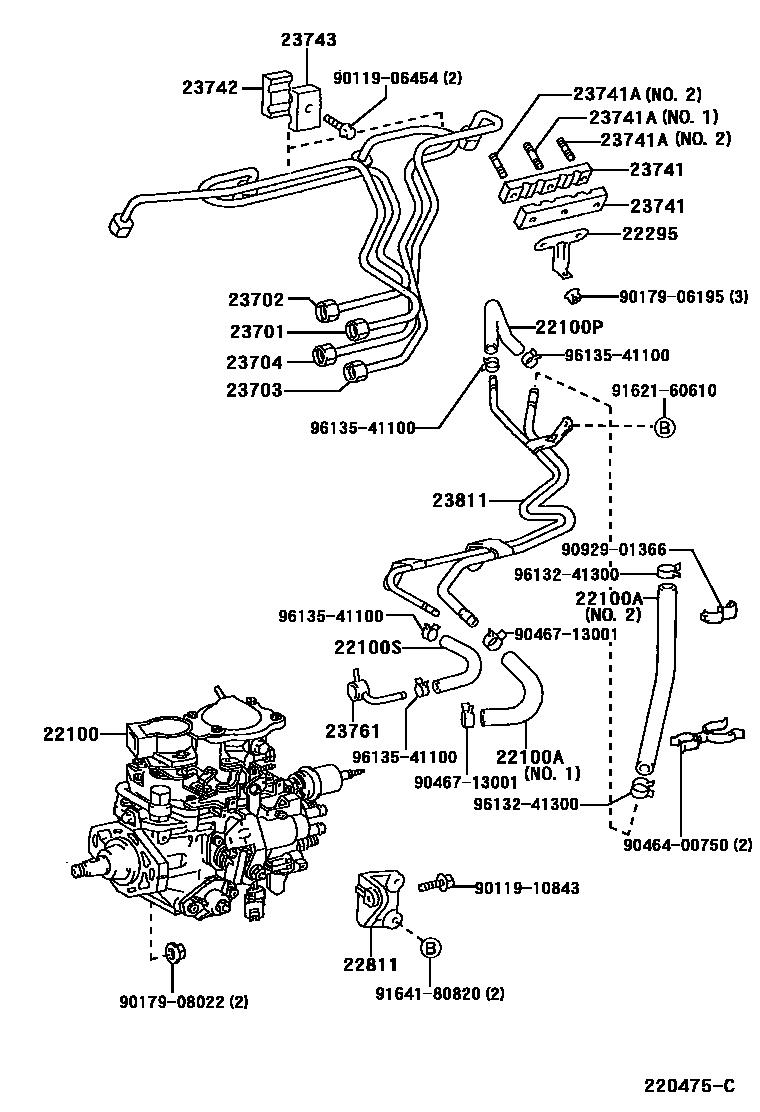

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6E200i2CT..CT220199710-200007

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-64230i2CT..CT220199710-200007

NO.2

main23273-64030i2CT..CT220199710-200007

NO.1

22100PHOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)

main23273-64100i2CT..CT220199710-200007

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main95333-06020i2CT..CT220199710-200007

sub95337-06020

22295BRACKET, INJECTION PUMP CONNECTOR

main22295-64011i2CT..CT220199710-200007

22811STAY, INJECTION PUMP, NO.1

main22811-64020i2CT..CT220199710-200007

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64110i2CT..CT220199710-200007

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64110i2CT..CT220199710-200007

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64090i2CT..CT220199710-200007

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64110i2CT..CT220199710-200007

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010i2CT..CT220199710-200007

sub23741-64011

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i2CT..CT220199710-200007

NO.1

sub90116-06095

main92122-60622i2CT..CT220199710-200007

NO.2

23742CLAMP, INJECTION PIPE, NO.2

main23741-54010i2CT..CT220199710-200007

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010i2CT..CT220199710-200007

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-64041i2CT..CT220199710-200007

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64100i2CT..CT220199710-200007

9011906454

main90119-06454

9011910843

main90119-10843

9017906195

main90179-06195

9017908022

main90179-08022

9046400750

main90464-00750

9046713001

main90467-13001

9092901366

main90929-01366

9162160610

main91621-60610

9164180820

main91641-80820

9613241300

main96132-41300

9613541100

main96135-41100

27 parts on this diagram · 1 diagram in section
