IGNITION COIL & SPARK PLUG / GLOW PLUG

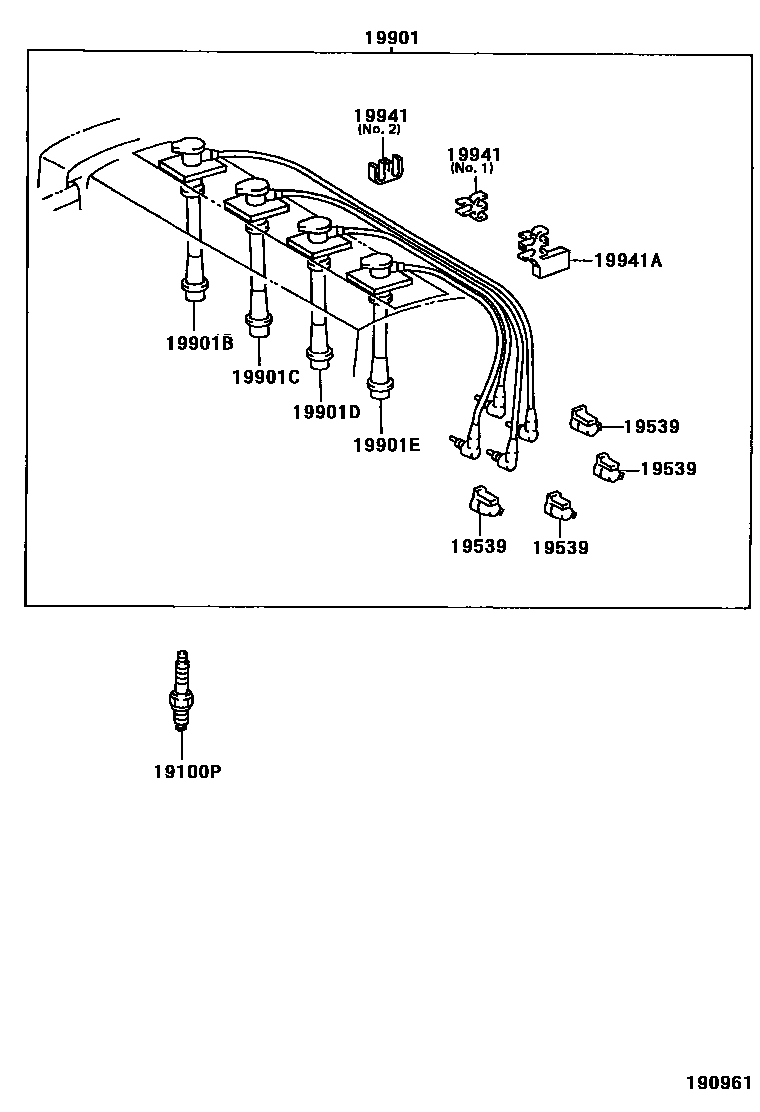

Parts diagram
19100PPLUG, SPARK
main90919-01164i199710-200007
K16R-U11
main90919-01198i199710
K20TR11
19539HOLDER, RESISTIVE CODE, NO.4
main19532-50010i199710-200007
NO.2,4
main19539-11010i199710-200007
NO.1
main19539-46010i199710-200007
NO.3
main19539-74050i199710
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-22327i199710-200007
sub90919-22419
main90919-22386i199710-199808
sub90919-22400
main90919-22400i199808
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-15211i199710-200007
sub90919-15590
main90919-15466i199710-199808
sub90919-15546
main90919-15546i199808
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-15210i199710-200007
sub90919-15591
main90919-15465i199710-199808
sub90919-15547
main90919-15547i199808
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-15209i199710-200007
sub90919-15592
main90919-15464i199710-199808
sub90919-15548
main90919-15548i199808
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-15208i199710-200007
sub90919-15593
main90919-15463i199710-199808
sub90919-15549
main90919-15549i199808
19941CLAMP, RESISTIVE CORD, NO.1
main90464-00561i199710-200007
NO.1
main90464-00655i199710-200007
NO.2
19941ACLAMP(FOR RESISTIVE CORD)
main90929-01273i199710-200007

9 parts on this diagram · 3 diagrams in section
