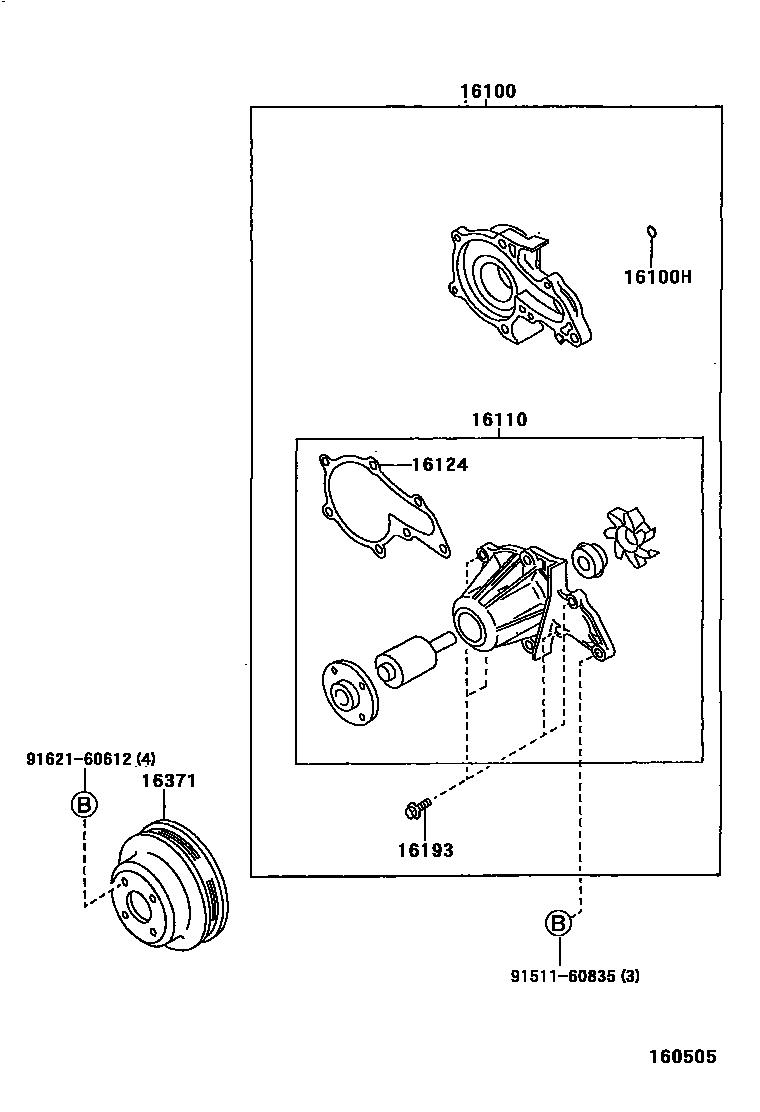

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-09050i4AFE..AT220199710-199812

sub16100-09051

main16100-09051i4AFE..AT220199812-200007

sub16100-19355

main16100-69296i2CT..CT220199710-199811

sub16100-69425

main16100-69298i2CT..CT220199811-200007

sub16100-69435

main16100-79185i3SFE..ST220199710

sub16100-79186

16100HRING, O(FOR WATER PUMP)

main90301-37005i3SFE..ST220199710

main96761-24035i4AFE..AT220199710-200007

16110PUMP ASSY, WATER, W/O COUPLING

main16110-09020i4AFE..AT220199710-199812

sub16110-09021

main16110-09021i4AFE..AT220199812-200007

16124GASKET, WATER PUMP COVER

main16124-02010i4AFE..AT220199710-200007

main16124-88460i3SFE..ST220199710

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-02020i4AFE..AT220199710-200007

main90029-01500i3SFE..ST220199710

16371PULLEY, FAN

main16371-02030i4AFE..AT220199710-200007

9151160835

main91511-60835

9162160612

main91621-60612

8 parts on this diagram · 3 diagrams in section
