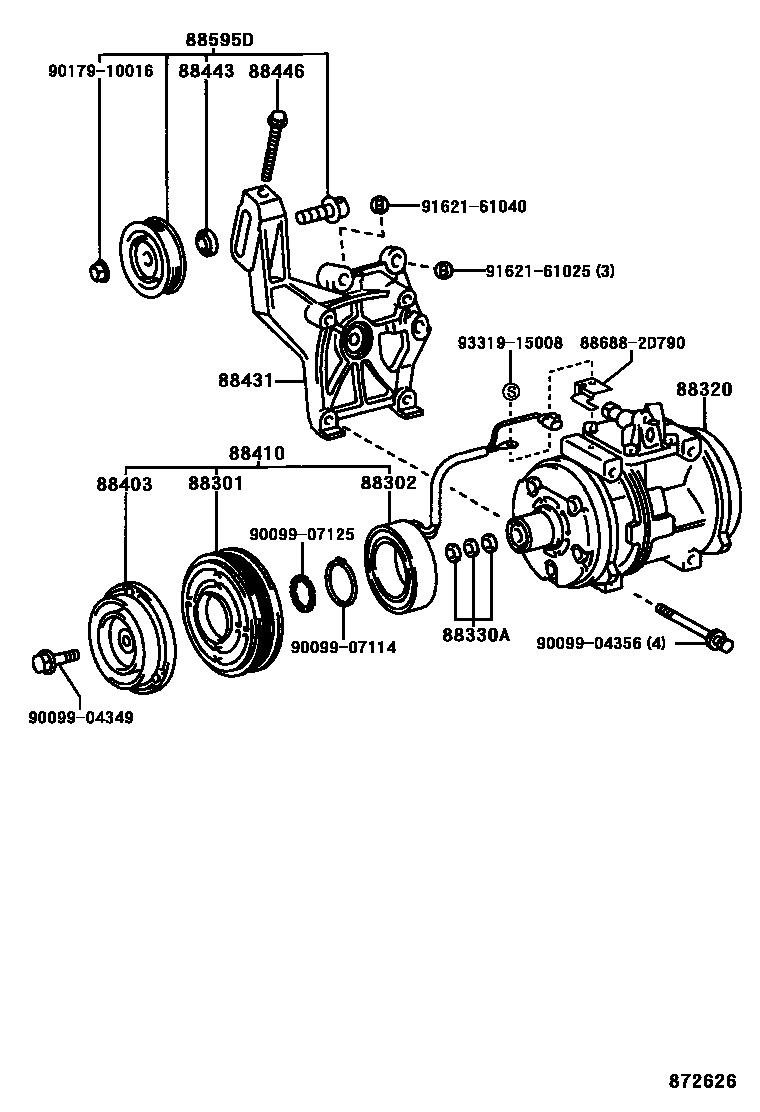

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20190iST191..UKP199601-199710

main88412-2B040iAT190..UKP199601-199710

main88412-33050iCT190..UKP199601-199710

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iCT190..UKP199601-199710

sub88411-2A030

main88411-2B090iST191..UKP199601-199710

main88411-2B100iAT190..UKP199601-199710

88320COMPRESSOR ASSY, COOLER

main88320-2B120iST191..UKP199601-199710

main88320-2B130iCT190..UKP199601-199710

sub88320-2BH90

main88320-2B300iAT190..UKP199601-199710

sub88320-35H92

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iAT190,CT190,ST191..UKP199601-199710

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iAT190,CT190,ST191..UKP199601-199710

88410CLUTCH ASSY, MAGNET

main88410-2B040iST191..UKP199601-199710

main88410-2B060iCT190..UKP199601-199710

main88410-2B100iAT190..UKP199601-199710

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12460iCT190..UKP199601-199710

main88431-12550iAT190..UKP199601-199710

88443COLLAR, IDLE PULLEY

main88443-36010iAT190..UKP199601-199710

88446BOLT, IDLE PULLEY

main88446-12030iAT190..UKP199601-199710

88595DPULLEY ASSY, IDLE

main88440-17010iAT190..UKP199601-199710

886882D790BRACKET, COOLER DIAPHRAGM

main88688-2D790

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9009907125

main90099-07125

9017910016

main90179-10016

9162161025

main91621-61025

9162161040

main91621-61040

9331915008

main93319-15008

19 parts on this diagram · 4 diagrams in section
