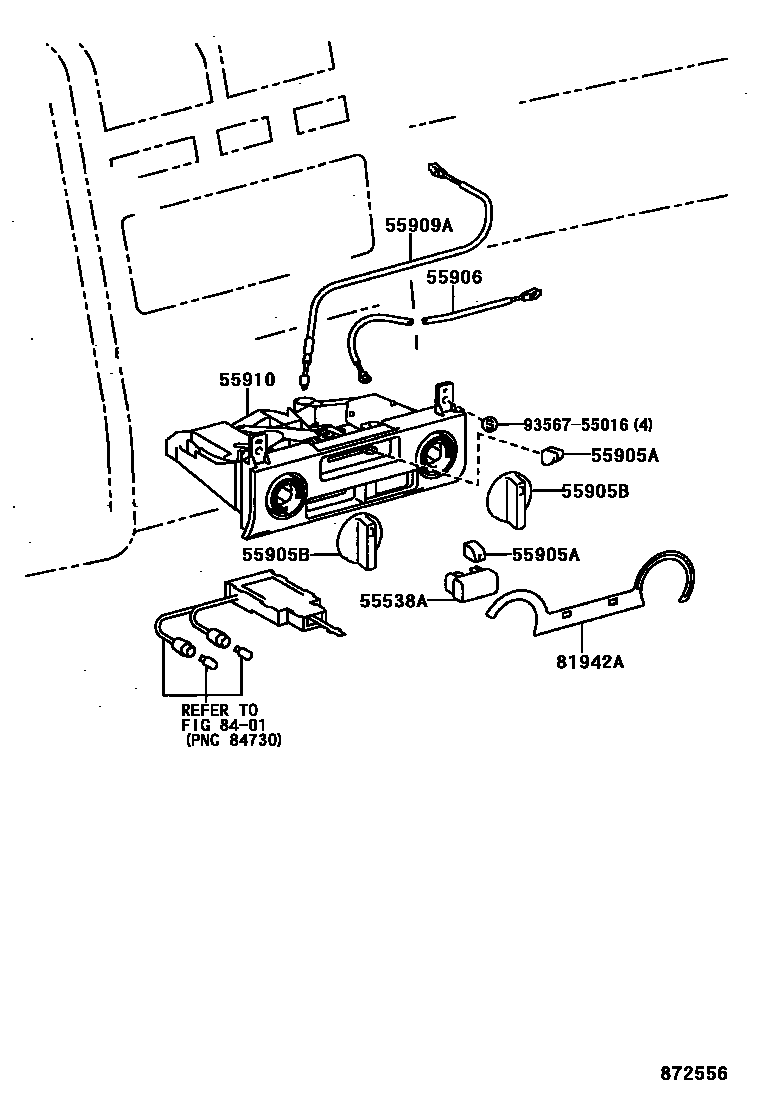

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1LEVER CONTROL TYPE 0002 1AIR DUCT

55538ACOVER, COOLER SWITCH HOLE

main55538-05010iAT190,ST191..UKP199601-199710

55905AKNOB, HEATER CONTROL

main55905-05010iAT190,CT190,ST191..UKP199601-199710

55905BKNOB, HEATER CONTROL, NO.2

main55905-05020iAT190,CT190,ST191..UKP199601-199710

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-20300iAT190,CT190,ST191..UKP199601-199710

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-05011iAT190,ST191..UKP..RHD199601-199710

main55909-05021iAT190,CT190,ST191..UKP..LHD199601-199710

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-05011iAT190,ST191..UKP..RHD199601-199710

sub55910-05012

main55910-05021iAT190,CT190,ST191..UKP..LHD199601-199710

sub55910-05022

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-05010iAT190,ST191..UKP..RHD199601-199710

main81942-05020iAT190,CT190,ST191..UKP..LHD199601-199710

8401

9356755016

main93567-55016

9 parts on this diagram · 2 diagrams in section
